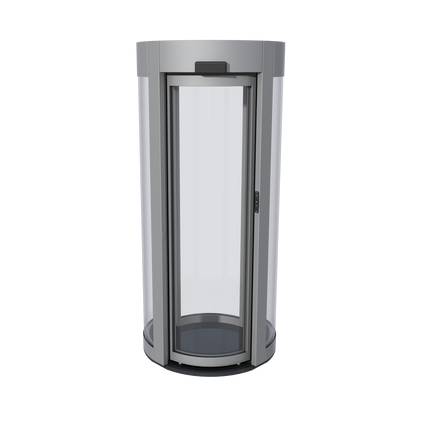

HiSec 6Q/6Qs Security Airlock Portal
HiSec 6Q/6Qs Security Airlock Portal
HiSec 6Q/6Qs Security Airlock Portal

Last verified by manufacturer over a year ago

Gunnebo Entrance Control

Last verified by manufacturer over a year ago

Gunnebo Entrance Control

Last verified by manufacturer over a year ago

Gunnebo Entrance Control
Summary
Motorized full height square security booth for internal or semi-external installation with 600 mm clear walkway.
-
-
Application
  • Head offices.
  • Banking.
  • Data centres.
  • Telecommunications.
  • Information technology.
  • Research and development.
  • Government.
  • Military.
  • Security publishing.
  • Law enforcement.
-
-
Description

The HiSec 6 is a motorized security booth for internal or semi-external installation. It incorporates a transparent design, offering a choice of security levels preventing tailgating and piggybacking.

The doors are always locked shut in the rest position. An authorized signal opens the first door, allowing the user to step into the booth where a presence is detected. When the first door is closed, the second door opens, thus allowing the user to pass through. The second door shuts after the unit has been vacated, which also resets the system.


The HiSec detects if more than one person is present inside the booth with an electronic ultrasound sensor. The booth is set with a predetermined but adjustable anti-hostage threshold. As an authorized user stands in the booth, it confirms acceptance of the occupant and authorises the door to close.


Should the measured volume presence not be authorized (when more than one person is present or there is non-permitted additional baggage), a vocal synthesizer will ask the occupants to leave the booth.


An additional left object sensor is able to detect the presence of an object on the floor (50 x 50 x 30 mm). The HiSec is equipped with an electronic safety feature which reverses the motor to re-open the door upon detection of an obstruction. The door fully opens to allow the obstruction to be removed, after which it attempts to re-close.


Features and benefits:

  • Premium high security solution.
  • Elegant design.
  • Reliable performance.
  • CE marked.
  • High security solution.
  • Elegant design.
  • Reliable performance.
  • Base only 20 mm.
  • Mean time to repair (MTTR): <30 minutes.
-
-
Digital objects
-
-
Color
Grey, Clear
-
-
Finish
Powder-coated
-
-
Material
Steel, Laminate, Glass
-
-
Shape
Square, Circle
-
-
Length
1050 mm
-
-
Width
1050 mm
-
-
Height
2320 mm
-
-
Warranty description
Two year
-
-
SKU Code
HS6SQL, HS6SQLM, HS6L, HS6LM, HS6L SP, HS6L SPM
-
-

Specification

Classification data
Configuration
Motorized full height square security booth.
-
-
Shape
Circle.
-
-
Door
-
-
-
Material and finish
Printed frame in polyethylene terephthalate, RAL 7040., Alternative finish.
-
-
Glass
Standard glazing: 11–12 mm two-ply laminate safety glass., Glazing to BR2/S: 20–21 mm two-ply laminated safety glass., Glazing to BR3/S: 26–27 mm three-ply laminated safety glass., Glazing to BR4/S: 32–33 mm three-ply laminated safety glass.
-
-
Size
-
-
-
Overall width
1050 mm.
-
-
Length
1050 mm.
-
-
Overall height
2320 mm.
-
-
Security
Electro-mechanical locking., RC2 locking, to EN 1627., RC3 locking, to EN 1627.
-
-
Credential Reader
-
-
-
Type
Ultrasound system.
-
-
Accessories
None., Weight sensing upgrade., Fail-safe opening., Glass security upgrade., Demountable version kit., Horizontal transportation kit., Left object sensor., Contact mat.
-
-

Additional properties

Integral accessories
Metal detector.
-
-
Walls
Painted steel section, powder coated finish, RAL 9006., Alternative finish.
-
-
Ceiling
High-pressure laminate (HPL), finished pearl grey., Alternative finish.
-
-
Base plate
High-strength laminate, finished plumb grey., Alternative finish.
-
-
Foundation layout
Concrete to 30 N/mm², 1150 x 1150 x 150 mm.
-
-
Lighting
Low-voltage light.
-
-
Passage rate
Four passages per minute.
-
-
Safety features
Safety torque sensing.
-
-
Operating temperature range
-10 to +45°C.
-
-
Weight
530 kg.
-
-
Ingress protection (IP) rating
IP33.
-
-
MeanTimeBetweenFailure
1.5 million cycles.
-
-
Power supply
230 V a.c., 115 V a.c.
-
-
Third-party certification
CE marked.
-
-
