Summary

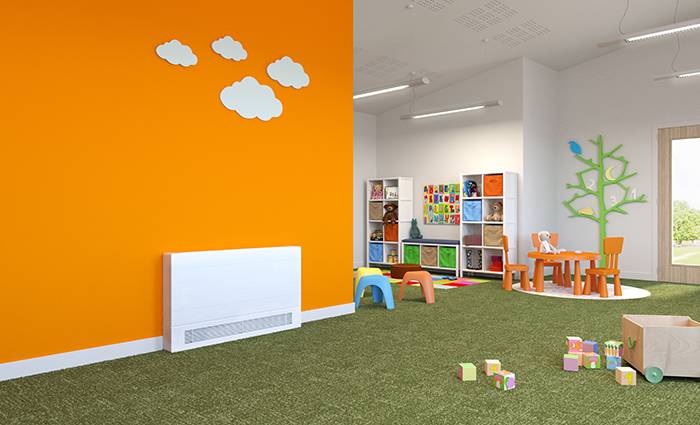

Low surface temperature (LST) radiator finished with antibacterial paint. Comes with a designer type fascia panel.
Low surface temperature (LST) radiator finished with antibacterial paint. Comes with a designer type fascia panel.
Low surface temperature (LST) radiator finished with antibacterial paint. Comes with a designer type fascia panel.
Application
Suitable use for domestic, commercial and public buildings’ running heating systems with total public safety assured.
Suitable use for domestic, commercial and public buildings’ running heating systems with total public safety assured.
Suitable use for domestic, commercial and public buildings’ running heating systems with total public safety assured.
Description
Low surface temperature (LST) radiator which meets NHS guidance for ‘safe hot water and surface temperature’ and is finished in antibacterial paint.
Features and benefits:
- Performs to a maximum working pressure of 145 psi (10 bar).
- Conforms to BS EN 442.
- White (RAL 9016) in colour.
- It has a flat panel outer casing, which has a Deco fascia and is totally reversible to allow piping flexibility.
- Simple and quick to install, the casing is held by security fittings with a unique seam fixing bracket system to prevent unauthorized access to the emitter accommodated inside.
- The emitter itself provides high outputs through convection for good heating performance.
- Emitter size: Dependent on size and style, consult manufacturer's literature for information.
- Technical characteristics: Dependent on size and style, consult manufacturer's literature for information.
- Style: Certain styles are only available with certain sizes, consult manufacturer for information.
Low surface temperature (LST) radiator which meets NHS guidance for ‘safe hot water and surface temperature’ and is finished in antibacterial paint.
Features and benefits:
- Performs to a maximum working pressure of 145 psi (10 bar).
- Conforms to BS EN 442.
- White (RAL 9016) in colour.
- It has a flat panel outer casing, which has a Deco fascia and is totally reversible to allow piping flexibility.
- Simple and quick to install, the casing is held by security fittings with a unique seam fixing bracket system to prevent unauthorized access to the emitter accommodated inside.
- The emitter itself provides high outputs through convection for good heating performance.
- Emitter size: Dependent on size and style, consult manufacturer's literature for information.
- Technical characteristics: Dependent on size and style, consult manufacturer's literature for information.
- Style: Certain styles are only available with certain sizes, consult manufacturer for information.
Low surface temperature (LST) radiator which meets NHS guidance for ‘safe hot water and surface temperature’ and is finished in antibacterial paint.
Features and benefits:
- Performs to a maximum working pressure of 145 psi (10 bar).
- Conforms to BS EN 442.
- White (RAL 9016) in colour.
- It has a flat panel outer casing, which has a Deco fascia and is totally reversible to allow piping flexibility.
- Simple and quick to install, the casing is held by security fittings with a unique seam fixing bracket system to prevent unauthorized access to the emitter accommodated inside.
- The emitter itself provides high outputs through convection for good heating performance.
- Emitter size: Dependent on size and style, consult manufacturer's literature for information.
- Technical characteristics: Dependent on size and style, consult manufacturer's literature for information.
- Style: Certain styles are only available with certain sizes, consult manufacturer for information.
Color
White
White
White
Finish
Painted
Painted
Painted
Material
Steel
Steel
Steel
Shape
Rectangle
Rectangle
Rectangle
Warranty description
Ten year
Ten year
Ten year
Specification
Standards
To BS EN 442.
To BS EN 442.
To BS EN 442.
Radiator type
Low surface temperature, double panel plus.
Low surface temperature, single panel.
Low surface temperature, double panel.
Output
284–2254 W (969–7691 Btu/h).
196–1643 W (669–5606 Btu/h).
348–2767 W (1187–9441 Btu/h).
Finish
Painted.
Painted.
Painted.
Connections
½” inlet.
½” inlet.
½” inlet.
Additional properties
Size (h x l)
500 x 560 mm., 500 x 760 mm., 500 x 960 mm., 500 x 1160 mm., 500 x 1360 mm., 500 x 1560 mm., 500 x 1760 mm., 500 x 1960 mm., 650 x 560 mm., 650 x 760 mm., 650 x 960 mm., 650 x 1160 mm., 650 x 1360 mm., 650 x 1560 mm., 650 x 1760 mm., 650 x 1960 mm., 800 x 560 mm., 800 x 760 mm., 800 x 960 mm., 800 x 1160 mm., 800 x 1360 mm., 800 x 1560 mm., 800 x 1760 mm., 800 x 1960 mm.
500 x 560 mm., 500 x 760 mm., 500 x 960 mm., 500 x 1160 mm., 500 x 1360 mm., 500 x 1560 mm., 500 x 1760 mm., 500 x 1960 mm., 650 x 560 mm., 650 x 760 mm., 650 x 960 mm., 650 x 1160 mm., 650 x 1360 mm., 650 x 1560 mm., 650 x 1760 mm., 650 x 1960 mm., 800 x 460 mm., 800 x 560 mm., 800 x 760 mm., 800 x 960 mm., 800 x 1160 mm., 800 x 1360 mm., 800 x 1560 mm., 800 x 1760 mm., 800 x 1960 mm.
500 x 560 mm., 500 x 760 mm., 500 x 960 mm., 500 x 1160 mm., 500 x 1360 mm., 500 x 1560 mm., 500 x 1760 mm., 500 x 1960 mm., 650 x 560 mm., 650 x 760 mm., 650 x 960 mm., 650 x 1160 mm., 650 x 1360 mm., 650 x 1560 mm., 650 x 1760 mm., 650 x 1960 mm., 800 x 460 mm., 800 x 560 mm., 800 x 760 mm., 800 x 960 mm., 800 x 1160 mm., 800 x 1360 mm., 800 x 1560 mm., 800 x 1760 mm., 800 x 1960 mm.
WorkingPressure
10 bar.
10 bar.
10 bar.
Operating pressure (maximum)
13.5 bar.
13.5 bar.
13.5 bar.
