Summary

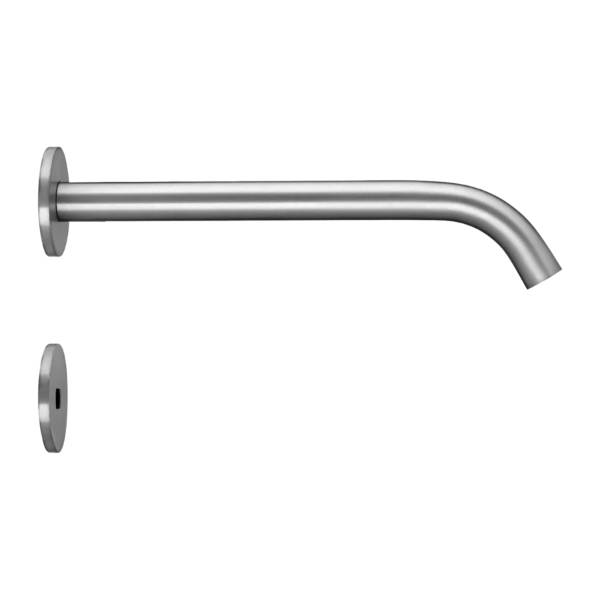

Slim profile automatic wall-mounted IR sensor tap.
-
-
Application
Washrooms / Restrooms
Not to be installed above highly polished basins, or waste outlets.
-
-
Description
Slim profile automatic wall-mounted IR sensor tap.
Features and benefits:
- Choice of five finishes.
- Elegant, sleek, minimalist design.
- Environmentally-friendly titanium ion plating.
- IR sensor set into wall below spout.
- Two second comfort delay; security time-out at 30 seconds.
- Cascade aerator as standard (spray flow also available).
- Mains power supply required.
- Easy to install.
- 150 mm-long version available (specified separately).
- Part of a range of Radius washroom products.
- BREEAM, LEED WRAS certified; EMC compliant.
-
-
Digital objects
-
-
Color
Silver, Black, Copper, Gold, Bronze
-
-
Finish
Satin, PVD, Brushed
-
-
Material
Stainless steel
-
-
Shape
Other
-
-
Length
220 mm
-
-
Width
18 mm
-
-
Height
18 mm
-
-
Warranty description
One year
-
-
SKU Code
TSL.882.CS, TSL.882.CP, TSL.882.BR, TSL.882.BK, TSL.882.BZ
-
-
Specification
Classification data
Approvals
Water Regulations Approval Scheme (WRAS)-approved (BREEAM, LEED WRAS; certificate no. 1809302).
-
-
Form
Wall-mounted sensor tap.
-
-
Materials
-
-
-
Body
AISI 304 stainless steel.
-
-
Finish and colour
Black PVD.
-
-
Flow rate (maximum)
3.8 L/minute (aerated)., 1.89 L/minute (spray).
-
-
Water supply temperature (maximum)
60°C.
-
-
Integral accessories
Manufacturer's standard.
-
-
Additional properties
Power supply
Mains, TSL-882 (110–230 V a.c., 50–60 Hz, 1.5 A)., Lithium battery, TSL-885 6 V CR-P2.
-
-
Colour (Light reflectance value (LRV)
3.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of material origin
United Kingdom
-
-
Country of product manufacture
United Kingdom
-
-
Material
Stainless steel
-
-
A1–A3 ('Production stage')
Embodied carbon as defined in BS EN 15804
Lower emissions
Normalized unit
-
-
-
Declared unit
0.5 kg CO₂ eq/unit
-
-
Recyclability
Recyclable
-
-
Recycled content
0 %
-
-
