Summary

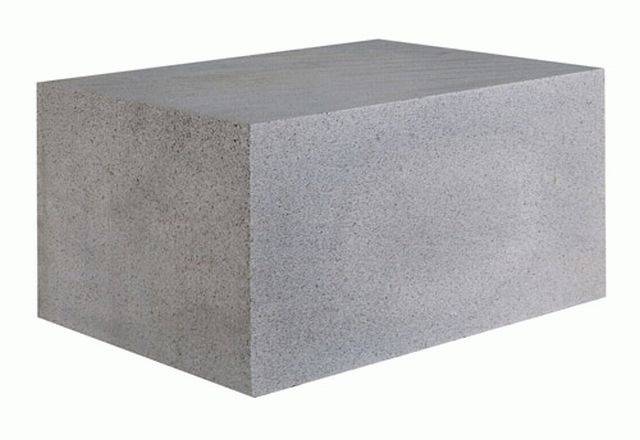

Aerated autoclaved concrete foundation blocks.
Aerated autoclaved concrete foundation blocks.
Application
Suitable for use below damp proof course (DPC) level.
Suitable for use below damp proof course (DPC) level.
Description
Aerated autoclaved concrete foundation blocks available in two strength categories and a range of thicknesses. Foundation blocks may also be used above ground for solid wall construction.
Features and benefits:
- Enhanced thermal performance: their use reduces heat loss from ground floors.
- Frost resistance: they have exceptionally good resistance to freeze/thaw conditions.
- Lightweight: they weigh one third of an equivalent dense aggregate block.
- Reduced costs: an independent report by Davis Langdon LLP, concludes Celcon Foundation Blocks are up to 26% cheaper than dense aggregate blocks.
- Speed of construction: Enable a quick and reliable construction as only one wall has to be set out and there is no need for wall ties or lean mix fill.
Aerated autoclaved concrete foundation blocks available in two strength categories and a range of thicknesses. Foundation blocks may also be used above ground for solid wall construction.
Features and benefits:
- Enhanced thermal performance: their use reduces heat loss from ground floors.
- Frost resistance: they have exceptionally good resistance to freeze/thaw conditions.
- Lightweight: they weigh one third of an equivalent dense aggregate block.
- Reduced costs: an independent report by Davis Langdon LLP, concludes Celcon Foundation Blocks are up to 26% cheaper than dense aggregate blocks.
- Speed of construction: Enable a quick and reliable construction as only one wall has to be set out and there is no need for wall ties or lean mix fill.
Product certifications
Digital objects
Color
Grey
Grey
Finish
Other
Other
Material
Autoclaved aerated concrete (AAC)
Autoclaved aerated concrete (AAC)
Shape
Rectangle
Rectangle
Length
325 mm
325 mm
Width
275 mm, 300 mm, 355 mm
275 mm, 300 mm, 355 mm
Height
315 mm
315 mm
Specification
Classification data
Standard
To BS EN 771-4.
To BS EN 771-4.
Mean compressive strength (minimum)
3.6 N/mm².
7.3 N/mm².
Freeze/ thaw resistance
Frost resistant.
Frost resistant.
Thermal conductivity (maximum)
0.24 W/m·K.
0.30 W/m·K.
Recycled content
80%.
80%.
Work sizes (length x width x height)
325 x 275 x 215 mm., 325 x 300 x 215 mm., 325 x 355 x 215 mm.
325 x 275 x 215 mm., 325 x 300 x 215 mm., 325 x 355 x 215 mm.
Density
600 kg/m³.
730 kg/m³.
Sustainability data
Contains Red List materials
No
No
Country of material origin
United Kingdom
United Kingdom
Country of product manufacture
United Kingdom
United Kingdom
Recyclability
Yes, at end of life
Yes, at end of life
Recycled content
80 %
80 %
