Compare variants
Sustainability report
Clear all

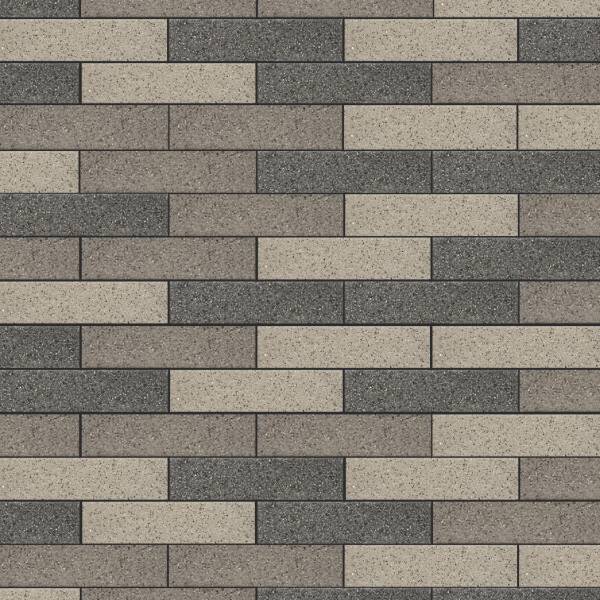

Manhattan Constellations | Concrete Block Paving
Verified 2 months ago
Tobermore
Draco
nbs-symbol
Add to spec

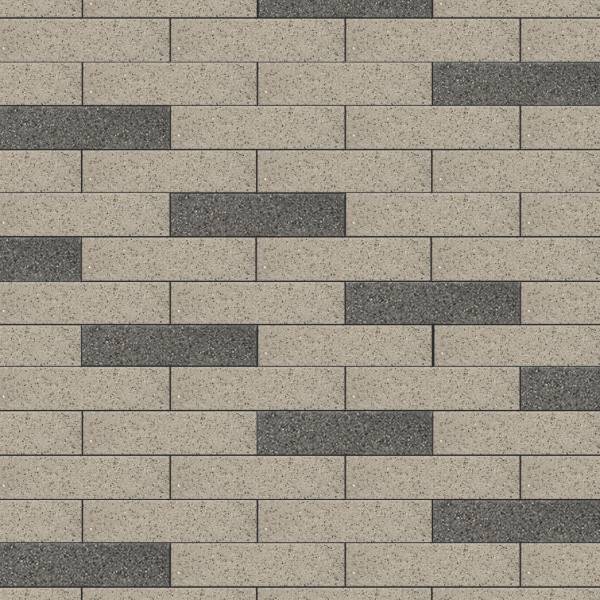

Manhattan Constellations | Concrete Block Paving
Verified 2 months ago
Tobermore
Pavo
nbs-symbol
Add to spec

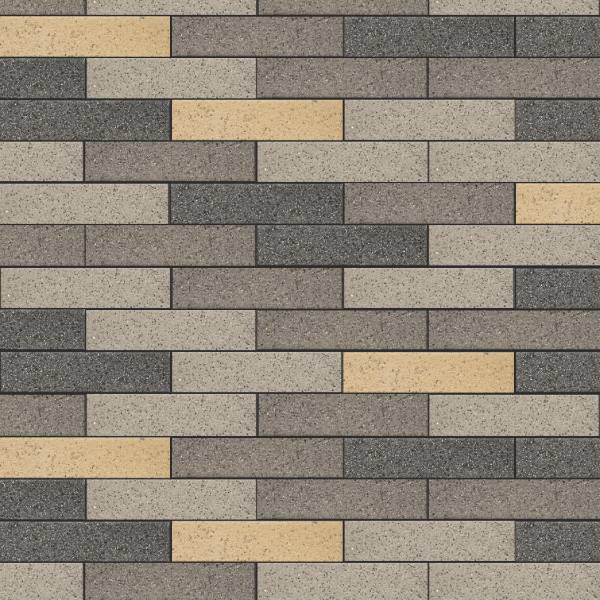

Manhattan Constellations | Concrete Block Paving
Verified 2 months ago
Tobermore
Virgo
nbs-symbol
Add to spec
Summary
Signature Mixes
Signature Mixes
Signature Mixes
Third party certification
EPD
Environmental Product Declaration (EPD)- Fusion 80mm, Hydropave Fusion, Manhattan 80mm
EPD
Environmental Product Declaration (EPD)- Fusion 80mm, Hydropave Fusion, Manhattan 80mm
EPD
Environmental Product Declaration (EPD)- Fusion 80mm, Hydropave Fusion, Manhattan 80mm
Material
Concrete
Concrete
Concrete
Shape
Rectangle
Rectangle
Rectangle
Length
500 mm, 600 mm
500 mm, 600 mm
500 mm, 600 mm
Width
125 mm, 150 mm
125 mm, 150 mm
125 mm, 150 mm
Height
80 mm, 140 mm
80 mm, 140 mm
80 mm, 140 mm
Specification
Standard
To BS EN 1338.
To BS EN 1338.
To BS EN 1338.
Physical properties
-
-
-
Finish
Textured granite aggregate.
Textured granite aggregate.
Textured granite aggregate.
Profile
-
-
-
Paver type
Regular plan form.
Regular plan form.
Regular plan form.
Arrises
Chamfered.
Chamfered.
Chamfered.
Dimensions and associated tolerances
-
-
-
Nominal sizes
500 x 140 x 125 mm., 600 x 150 x 80 mm., Mixed size pack.
500 x 140 x 125 mm., 600 x 150 x 80 mm., Mixed size pack.
500 x 140 x 125 mm., 600 x 150 x 80 mm., Mixed size pack.
Tolerances on diagonals
To BS EN 1338.
To BS EN 1338.
To BS EN 1338.
Weathering resistance
Class 3.
Class 3.
Class 3.
Abrasion resistance
Class 3.
Class 3.
Class 3.
Slip resistance
Extremely low: (>75 USRV).
Extremely low: (>75 USRV).
Extremely low: (>75 USRV).
Skid resistance
Extremely low: (>75 USRV).
Extremely low: (>75 USRV).
Extremely low: (>75 USRV).
Additional properties
Strength
>3.6 MPa.
>3.6 MPa.
>3.6 MPa.
EnergyUsed
100%.
100%.
100%.
WaterUsed
100%.
100%.
100%.
BREEAM rating
In accordance with the Green Guide to Specification.
In accordance with the Green Guide to Specification.
In accordance with the Green Guide to Specification.
Surface finish
Hard-wearing layer with a minimum of 4 mm and >350 kg/m³ cement.
Hard-wearing layer with a minimum of 4 mm and >350 kg/m³ cement.
Hard-wearing layer with a minimum of 4 mm and >350 kg/m³ cement.
Sustainability data
Country of material origin
United Kingdom
United Kingdom
United Kingdom
Country of product manufacture
United Kingdom
United Kingdom
United Kingdom
Material
Concrete
Concrete
Concrete
Recyclability
100%
100%
100%
