Summary

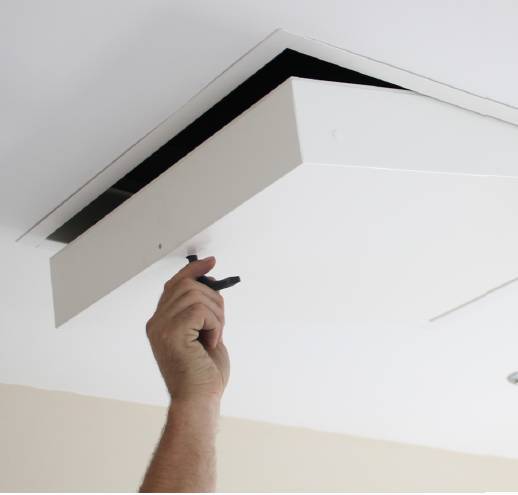

The Alto Ceiling Hatch is an insulated, acoustic and fire-rated ceiling hatch with continuous piano hinge or pivoting hinge versions.
The Alto Ceiling Hatch is an insulated, acoustic and fire-rated ceiling hatch with continuous piano hinge or pivoting hinge versions.
Application
Suitable for domestic and commercial use.
Suitable for domestic and commercial use.
Description
Alto ceiling hatches provide a high quality opening in ceilings for ease of access.
Features and benefits:
- Minimalist look.
- Finished in powder-coated white and can be painted over to blend into the surrounding surface.
- Spring-loaded invisible keyhole system.
- Picture frame or beaded frame option.
- One-hour fire rating.
- Pre-punched fixing holes for simple installation.
- Continuous piano hinge or pivoting hinge versions.
- Supplied as standard with the invisible keyhole SLIK system.
- Complies with building regulations for insulation, air tightness, L1 and L2, NHBC size requirements, robust documentation and is fire rated.
Alto ceiling hatches provide a high quality opening in ceilings for ease of access.
Features and benefits:
- Minimalist look.
- Finished in powder-coated white and can be painted over to blend into the surrounding surface.
- Spring-loaded invisible keyhole system.
- Picture frame or beaded frame option.
- One-hour fire rating.
- Pre-punched fixing holes for simple installation.
- Continuous piano hinge or pivoting hinge versions.
- Supplied as standard with the invisible keyhole SLIK system.
- Complies with building regulations for insulation, air tightness, L1 and L2, NHBC size requirements, robust documentation and is fire rated.
Color
White
White
Finish
Powder-coated
Powder-coated
Material
Zintec steel
Zintec steel
Shape
Rectangle, Square
Rectangle, Square
Length
Bespoke
Bespoke
Width
Bespoke
Bespoke
Height
90 mm, 94 mm
90 mm, 94 mm
Warranty description
Five year
Five year
Specification
Classification data
Fire performance
-
-
Fire resistance
FR60.
FR60.
Position
Ceiling-mounted.
Ceiling-mounted.
Size
-
-
Frame
Beaded frame type (SBF)., Picture frame (PF).
Beaded frame type (SBF)., Picture frame (PF).
Panel
-
-
Material
Zintec electrogalvanized mild steel.
Zintec electrogalvanized mild steel.
Integral finish
Polyester powder-coated, white RAL 9010, 20% gloss.
Polyester powder-coated, white RAL 9010, 20% gloss.
Latch or lock type
Square drive operated lock., Euro cylinder., Radial pin tumbler., Three-point lock.
Square drive operated lock., Euro cylinder., Radial pin tumbler., Three-point lock.
Operation

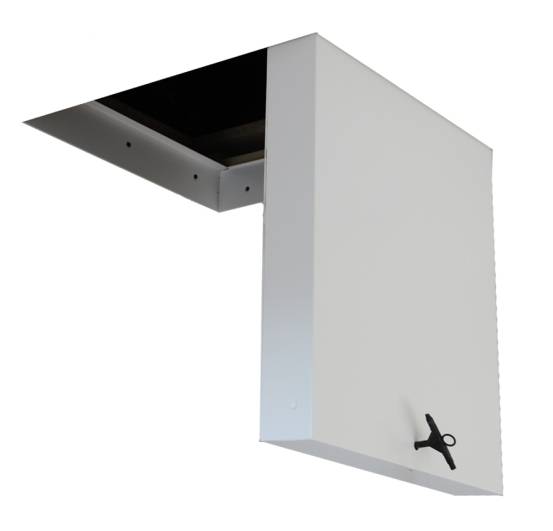

Continuous steel piano hinge system, downward opening.
Fixed pivot hinge system, downward opening.
Integral accessories
-
-
Additional properties
Air tightness
Manufacturer's standard.
-
Insulation
100 mm high-performance Rockwool insulation, equating to U-value of 0.35 W/m²K.
100 mm high-performance Rockwool insulation, equating to U-value of 0.35 W/m²K.
AcousticRating
To BS EN ISO140-3: 1995, maximum available reduction of 63 dB.
To BS EN ISO140-3: 1995, maximum available reduction of 44 dB.
Sustainability data
Contains Red List materials
No
No
Country of material origin
United Kingdom
United Kingdom
Country of product manufacture
United Kingdom
United Kingdom
Material
Zintec steel
Zintec steel
Recyclability
Recyclable
Recyclable
