Summary

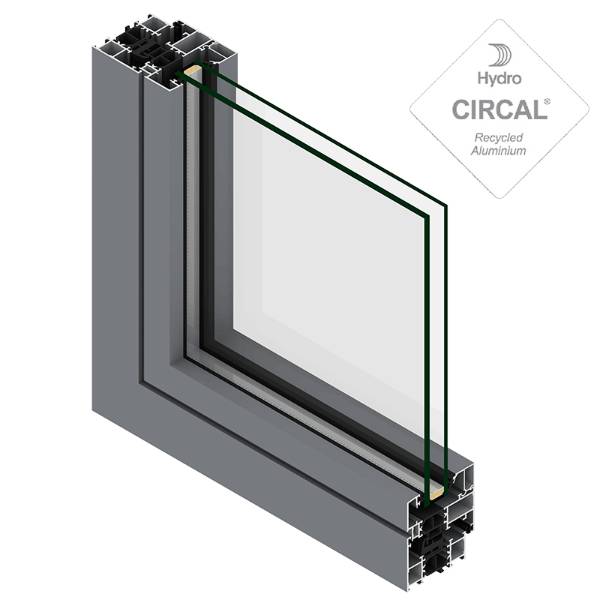

High performance, thermally broken aluminium window system.
-
-
Application
Suitable for all applications, including: commercial, residential, education and hospitality.
-
-
Description
Aluminium window and balcony door system with enhanced thermal performance. Can be constructed to form fixed lights or various opening configurations, including top hung open out, side hung open out, parallel, pivot, tilt and turn open in, side or bottom hung open in. Can also provide high levels of acoustic performance, supported by independent test data.
Features and benefits:
- Available in two styles:
- Visible (open in or open out) or
- Minimal (open in only) - a frame with exceptionally slim sightlines, providing greater aesthetics.
- Single or dual colour; possibility for differing finishes internally (eg. RAL colour) and externally (eg. anodized).
- Drained and ventilated glazing; nitrile rubber gaskets.
- Double weather stripped profiles with two multi-chambered polyamide thermal breaks, mechanically jointed.
- Trickle ventilator adaptors.
- High levels of weather performance and thermal insulation.
- Concealed fitting options.
- Concealed drainage options.
- Secure multipoint locking.
- Enhanced security; Secured by Design (SBD) accredited and tested to PAS 24.
-
-
Product certifications
-
-
Color
Silver, White, Bronze, Other
-
-
Finish
Anodized, Powder-coated
-
-
Material
Aluminium
-
-
Length
Bespoke
-
-
Width
Bespoke
-
-
Height
Bespoke
-
-
Specification
Classification data
Standard
To BS 4873 and PAS24.
-
-
Third-party certification
Secured by Design, PAS24 Quality Assurance and BM Trada Q Mark.
-
-
Dimensions and configurations
As schedule., As drawing.
-
-
Product performance
-
-
-
Weather performance
-
-
-
Air permeability
-
-
-
Watertightness
-
-
-
Resistance to wind load
-
-
-
Durability
-
-
-
Load bearing capacity of safety devices
Pass.
-
-
Safety
-
-
-
Security level
To PAS 24., Independently accredited Secured by Design (SBD) standard.
-
-
Environmental
-
-
-
Background ventilation
-
-
-
Acoustic performance rating
-
-
-
Thermal
-
-
-
Whole window U-value
-
-
-
British Fenestration Rating Council Window Energy Rating
-
-
-
Frame
-
-
-
Profile
Thermally broken aluminium.
-
-
Finish as delivered
-
-
-
Coating
Anodized to BS EN 3987., Powder coating to BS EN 12206-1:2004.
-
-
Colour
Anodized silver to BS 3987., Anodized bronze to BS 3987., Powder coated single colour to BS EN 12206-1:2004., Powder coated dual colour to BS EN 12206-1:2004.
-
-
Ventilator
Trickle ventilator adaptors.
-
-
Glazing or infill
-
-
-
Requirements
-
-
-
Hardware
Casement butt hinges., Casement friction hinges., Chain actuator., Horizontal concealed pivot hinges., Horizontal visible pivot hinges., Manual winding gear., Parallel scissor hinges., Restrictor, 100 mm., Restrictor, 200 mm., Restrictor, 300 mm., Restrictor., Tilt turn concealed., Vertical concealed pivot hinges., Vertical visible pivot hinges.
-
-
Additional properties
Opening Configuration
Non-opening, fixed lights.
-
-
Glazing bead
Internal., External.
-
-
Handle
Locking., Non-locking.
-
-
Sustainability data
Country of product manufacture
United Kingdom
-
-
Carbon dioxide equivalent
Normalized unit
(kg CO₂ eq/kg) A1–A3 ('Production stage') :
-
A1–A3 ('Production stage') :
-
A1–A3 ('Production stage') :
-
Declared unit
Self-declared
A1–A3 ('Production stage') :
4.0
Self-declared
A1–A3 ('Production stage') :
-
Self-declared
A1–A3 ('Production stage') :
-
Recyclability
High
-
-
