Summary

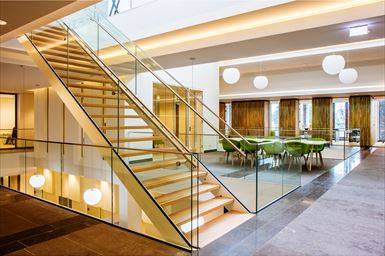

The OnLevel TL-6011 – durable and stylish balustrade, providing uncompromising safety.
The OnLevel TL-6011 – durable and stylish balustrade, providing uncompromising safety.
Application
Suitable for interior and exterior applications in private, commercial and public areas. Also suitable for:
- Model, TL-6010: Concealed installations. If used in conjunction with structural connection profiles, application versatility will increase – consult manufacturer for details.
- Model, TL-6011: Simple installations without screed, onto steel or concrete.
Suitable for interior and exterior applications in private, commercial and public areas. Also suitable for:
- Model, TL-6010: Concealed installations. If used in conjunction with structural connection profiles, application versatility will increase – consult manufacturer for details.
- Model, TL-6011: Simple installations without screed, onto steel or concrete.
Description
Frameless glass top and side-mount balustrade system for line loading in accordance with BS 6180: 2011 of more than 0.74 kN.
Features and benefits:
- Quick and simple mounting.
- A variety of finishes are available.
- Suitable for glass thicknesses between 12 and 21.52 mm.
- Includes drainage holes and extension pin holes.
- Slimline design which remains almost invisible.
- Low maintenance.
- Cost effective.
- OnLevel Flex-Fit glass adjustment tool included.
- CE-marked, and manufactured in accordance with BS 6180 and BS EN 1090-1 and 3 (EXC 3).
Frameless glass top and side-mount balustrade system for line loading in accordance with BS 6180: 2011 of more than 0.74 kN.
Features and benefits:
- Quick and simple mounting.
- A variety of finishes are available.
- Suitable for glass thicknesses between 12 and 21.52 mm.
- Includes drainage holes and extension pin holes.
- Slimline design which remains almost invisible.
- Low maintenance.
- Cost effective.
- OnLevel Flex-Fit glass adjustment tool included.
- CE-marked, and manufactured in accordance with BS 6180 and BS EN 1090-1 and 3 (EXC 3).
Finish
Milled, Aluminium, Stainless steel, Coloured
Milled, Aluminium, Stainless steel, Coloured
Material
Aluminium
Aluminium
SKU Code
unknown
unknown
Additional properties
Product Reference
Frameless Glass Balustrade Side Mount Model, TL-6011
Frameless Glass Balustrade Top Mount Model, TL-6010
Type
Cover strip., End cap for staircase with cover strip, left., End cap for staircase with cover strip, right., End cap with cover strip, left., End cap with cover strip, right., End cap, left., End cap, left staircase., End cap, right., End cap, right staircase., Glass profile., Inside corner, 90°., Outside corner, 90°.
End cap for staircase, left/ right., End cap, left / right., Glass profile., Inside/ outside corner, 90°.
Cover
Not required., 2500 mm., 5000 mm.
Not required.
Cover cap
Not required., Required.
Not required
Glass adjustment
2500 mm., 5000 mm., 25,000 mm.
2500 mm., 5000 mm., 25,000 mm.
Accessories/ Other requirements
Not required., Blanking plug., Extension pin., Fischer fixing anchor FH II 12/15., Spacer.
Not required., Fischer fixing anchor FH 12/50., Spacer.
Size
Not required., 51 x 140 mm.
Not required., 50 x 120 mm.
Length
Not required., 2500 mm., 5000 mm.
Not required., 2500 mm., 5000 mm.
Loading
0.74 kN.
0.74 kN.
Surface finish
Milled., Aluminium., Stainless steel., Coloured.
Milled., Aluminium., Stainless steel., Coloured.
