Summary

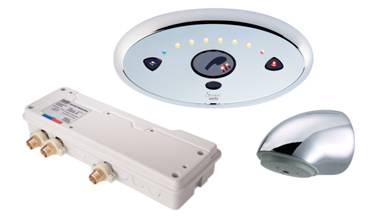

Concealed digital mixing valve for showers.
Concealed digital mixing valve for showers.
Description
A digital mixing valve offering programmable, maximum, minimum and default temperatures, duty flush and thermal disinfection with data logging capabilities.
Features and benefits:
- No touch on/ off and temperature control.
- Programmable flow times and temperatures.
- Programmable ‘duty flushing’.
- Thermal disinfection with data logging.
- Valve information and usage data.
- Incorporates T-logic digital intelligence.
A digital mixing valve offering programmable, maximum, minimum and default temperatures, duty flush and thermal disinfection with data logging capabilities.
Features and benefits:
- No touch on/ off and temperature control.
- Programmable flow times and temperatures.
- Programmable ‘duty flushing’.
- Thermal disinfection with data logging.
- Valve information and usage data.
- Incorporates T-logic digital intelligence.
Digital objects
Color
Silver
Silver
Finish
Chrome
Chrome
Material
Stainless steel, Plastic, Brass
Stainless steel, Plastic, Brass
Size
-
-
SKU Code
1.1503.682, 1.1503.706
1.1503.682, 1.1503.706
Specification
Classification data
Approvals
Water Regulations Advisory Scheme (WRAS) approved and BEAB approved.
Water Regulations Advisory Scheme (WRAS) approved and BEAB approved.
Standards
To BS 7942, BS EN 1111 and BS EN 1287.
To BS 7942, BS EN 1111 and BS EN 1287.
Form
Vandal resistant shower fitting.
Wall mounted control panel.
Materials
-
-
Body
Brass.
Brass.
Finish and colour
Chrome plated.
Chrome plated.
Additional properties
Operation
Flow control.
Flow control.
NominalStaticPressure
10 bar.
10 bar.
Pressure
3:1.
3:1.
NominalSupplyVoltage
100–240 V RMS 50–60Hz.
100–240 V RMS 50–60Hz.
TemperatureRange
30–50ºC.
30–50ºC.
Load (maximum)
20 W at 12 V d.c.
20 W at 12 V d.c.
Ingress protection (IP) rating
IP47, IP24, IP45 and IP45.
IP47, IP24, IP45 and IP45.
Ambient temperature
1–40°C.
1–40°C.
RelativeHumidity
95%.
95%.
FlowRateRange
8 L/min at 5 bar.
8 L/min at 5 bar.
Sustainability data
Country of product manufacture
United Kingdom
United Kingdom
