Summary

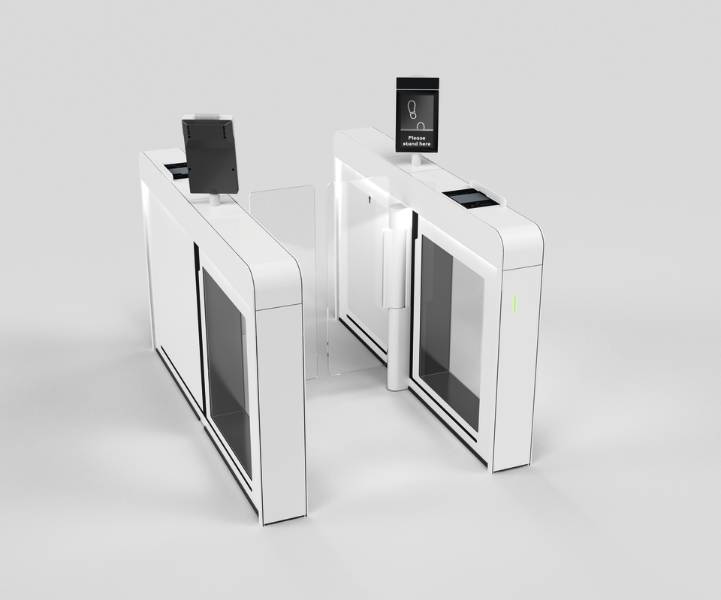

Speed gates for airports.
Speed gates for airports.
Speed gates for airports.
Application
Suitable for use in airports for security, lounge and boarding access applications. Not suitable for outdoor installation.
Suitable for use in airports for security, lounge and boarding access applications. Not suitable for outdoor installation.
Suitable for use in airports for security, lounge and boarding access applications. Not suitable for outdoor installation.
Description
Argus Air provides gate solutions that ensure efficient and ergonomic passenger flow. They cover the most important touch points in the airport passenger process from end to end including security, lounge access and boarding.
Features and benefits:
- 10" LCD colour display with integrated biometric face recognition.
- Low false acceptance and rejection rates thanks to the latest sensor technology with new light grid technology.
- High-end sensor technology: effective person and object detection by high frequency sensors and optimized algorithms.
- Anti-swapping function prevents people from swapping with other people.
- Intuitive user guidance through animated LED lighting.
- Multicolored, configurable ambient and door lighting.
- Slim and quiet drive unit.
- Control unit of the current generation, UL requirements fulfilled.
- Components and user interfaces arranged on the basis of the specific ergonomic studies and many years of experience.
- Flexible integration of the desired components in a modular housing.
- Fast boarding process with contactless control using biometric verification, also prevents fraudulent use of travel documents.
- Intuitive user-guidance for smooth procedures.
Argus Air provides gate solutions that ensure efficient and ergonomic passenger flow. They cover the most important touch points in the airport passenger process from end to end including security, lounge access and boarding.
Features and benefits:
- 10" LCD colour display with integrated biometric face recognition.
- Low false acceptance and rejection rates thanks to the latest sensor technology with new light grid technology.
- High-end sensor technology: effective person and object detection by high frequency sensors and optimized algorithms.
- Anti-swapping function prevents people from swapping with other people.
- Intuitive user guidance through animated LED lighting.
- Multicolored, configurable ambient and door lighting.
- Slim and quiet drive unit.
- Control unit of the current generation, UL requirements fulfilled.
- Components and user interfaces arranged on the basis of the specific ergonomic studies and many years of experience.
- Flexible integration of the desired components in a modular housing.
- Fast boarding process with contactless control using biometric verification, also prevents fraudulent use of travel documents.
- Intuitive user-guidance for smooth procedures.
Argus Air provides gate solutions that ensure efficient and ergonomic passenger flow. They cover the most important touch points in the airport passenger process from end to end including security, lounge access and boarding.
Features and benefits:
- 10" LCD colour display with integrated biometric face recognition.
- Low false acceptance and rejection rates thanks to the latest sensor technology with new light grid technology.
- High-end sensor technology: effective person and object detection by high frequency sensors and optimized algorithms.
- Anti-swapping function prevents people from swapping with other people.
- Intuitive user guidance through animated LED lighting.
- Multicolored, configurable ambient and door lighting.
- Slim and quiet drive unit.
- Control unit of the current generation, UL requirements fulfilled.
- Components and user interfaces arranged on the basis of the specific ergonomic studies and many years of experience.
- Flexible integration of the desired components in a modular housing.
- Fast boarding process with contactless control using biometric verification, also prevents fraudulent use of travel documents.
- Intuitive user-guidance for smooth procedures.
Color
White, Clear
White, Clear
White, Clear
Finish
Powder-coated
Powder-coated
Powder-coated
Material
Glass, Metal
Glass, Metal
Glass, Metal
Length
1650 mm
1650 mm
1650 mm
Width
991 mm, 1051 mm
991 mm, 1051 mm
991 mm, 1051 mm
Height
990 mm
990 mm
990 mm
Specification
Configuration
Single system., Multiple system.
Single system., Multiple system.
Single system., Multiple system.
Housing
-
-
-
Material and finish
Powder-coated gloss 30–40%. 6 mm toughened safety glass in NCS S 1002-B, partly transparent.
Powder-coated gloss 30–40%. 6 mm toughened safety glass in NCS S 1002-B, partly transparent.
Powder-coated gloss 30–40%. 6 mm toughened safety glass in NCS S 1002-B, partly transparent.
Colour
RAL 9006 Aluminium white.
RAL 9006 Aluminium white.
RAL 9006 Aluminium white.
Panel
-
-
-
Type
Motorised flap leaf.
Motorised flap leaf.
Motorised flap leaf.
Material and finish
10 mm toughened safety glass, upper edge 990 mm., Custom.
10 mm toughened safety glass, upper edge 990 mm., Custom.
10 mm toughened safety glass, upper edge 990 mm., Custom.
Colour
Transparent.
Transparent.
Transparent.
Manifestation
Row of light grey squares.
Row of light grey squares.
Row of light grey squares.
Size
-
-
-
Clear opening width (minimum)
540 mm., 900 mm., 915 mm.
540 mm., 900 mm., 915 mm.
540 mm., 900 mm., 915 mm.
Length
1650 mm.
1650 mm.
1650 mm.
Power supply
100–240 V a.c., 50/60 Hz, 300 VA.
100–240 V a.c., 50/60 Hz, 300 VA.
100–240 V a.c., 50/60 Hz, 300 VA.
Accessories
Not required., Face pod, Face pod with touch function, biometrics and 7” rear screen., Installation preparation for customer device., Printer., Boarding gate reader.
Not required., Face pod, Face pod with touch function, biometrics and 7” rear screen., Installation preparation for customer device., Printer., Boarding gate reader.
Not required., Face pod, Face pod with touch function, biometrics and 7” rear screen., Installation preparation for customer device., Printer., Boarding gate reader.
Additional properties
Emergency release
Not required., STV-ETS module for activation of emergency exits and escape routes.
Not required., STV-ETS module for activation of emergency exits and escape routes.
Not required., STV-ETS module for activation of emergency exits and escape routes.
Lighting
In the passage area LED white K4000., On the outside LED white K4000., Additional red and green for status display.
In the passage area LED white K4000., On the outside LED white K4000., Additional red and green for status display.
In the passage area LED white K4000., On the outside LED white K4000., Additional red and green for status display.
IntegratedLightingType
Illuminated RFID icon in white, red and green., White-red-green running light integrated in the hand rail., Animated process icons on optional facepod.
Illuminated RFID icon in white, red and green., White-red-green running light integrated in the hand rail., Animated process icons on optional facepod.
Illuminated RFID icon in white, red and green., White-red-green running light integrated in the hand rail., Animated process icons on optional facepod.
Sensors
Integrated in the guiding elements.
Integrated in the guiding elements.
Integrated in the guiding elements.
Drive
Two servo-positioning drives, electrically controlled in main passage direction.
Two servo-positioning drives, electrically controlled in both directions.
Two servo-positioning drives, electrically controlled in main passage direction.
Rotation
Unidirectional.
Unidirectional.
Unidirectional.
