Summary

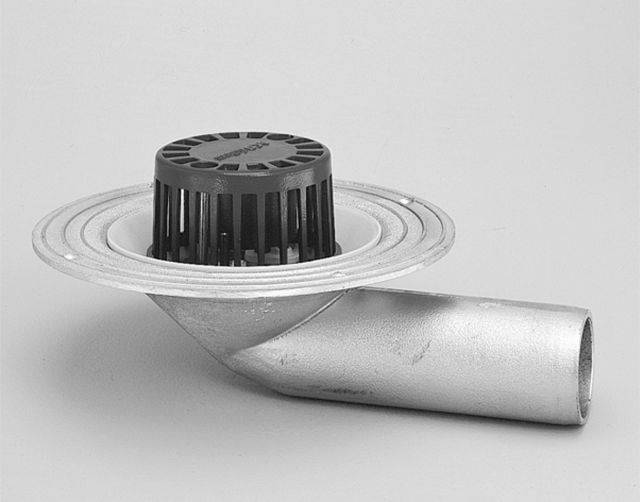

General purpose rainwater outlets with 90° angled spigot suitable for direct connection to pipework.
General purpose rainwater outlets with 90° angled spigot suitable for direct connection to pipework.
General purpose rainwater outlets with 90° angled spigot suitable for direct connection to pipework.
Material
Aluminium
Aluminium
Aluminium
Specification
Material
LM6 grade aluminium alloy to BS 1490., Gun-metal to BS 1400.
LM6 grade aluminium alloy to BS 1490., Gun-metal to BS 1400.
LM6 grade aluminium alloy to BS 1490., Gun-metal to BS 1400.
Grating
Dome grating.
Dome grating.
Dome grating.
Spigots
90° angled spigot.
90° angled spigot.
90° angled spigot.
Integral accessories
2/3DS deck support., 4/6DS deck support., 2/3RR raising ring., 4/6RR raising ring., 2/3TG terrace grate., 4/6TG terrace grate.
2/3DS deck support., 4/6DS deck support., 2/3RR raising ring., 4/6RR raising ring., 2/3TG terrace grate., 4/6TG terrace grate.
2/3DS deck support., 4/6DS deck support., 2/3RR raising ring., 4/6RR raising ring., 2/3TG terrace grate., 4/6TG terrace grate.
Additional properties
Type
50 mm nominal bore.
75 mm nominal bore.
100 mm nominal bore.
Outlet
Type and direction to suit pipework with suitable adaptors and connections.
Type and direction to suit pipework with suitable adaptors and connections.
Type and direction to suit pipework with suitable adaptors and connections.
MaximumFlowRate
Flow rate (35 mm head over outlet body): 1.7 L/s.
Flow rate (35 mm head over outlet body): 3.5 L/s.
Flow rate (35 mm head over outlet body): 7.0 L/s.
Area
Area drained (rainfall intensity 75 mm/hr): 81 m².
Area drained (rainfall intensity 75 mm/hr): 171 m².
Area drained (rainfall intensity 75 mm/hr): 336 m².
Weight
3.57 kg.
3.61 kg.
4.69 kg.
