Canopy system
Canopy system
Application
Typically specified on larger building projects such as:
- Public utility buildings.
- Offices.
- Large open spaces.
Typically specified on larger building projects such as:
- Public utility buildings.
- Offices.
- Large open spaces.
Description

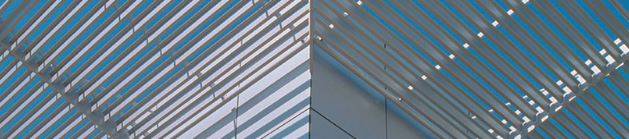

Canopy system available in a number of different shapes and materials; all produced in high quality materials and designed for sleek appearance and easy installation.
Features and benefits:
- Panels in roll-formed or extruded aluminum for highest weather resistance.
- Matching support structures in aluminum make a complete and highly durable system.
- Variable modules for best shading efficiency.
- Continuous linear appearance of panels.
- Virtually maintenance-free.
Canopy system available in a number of different shapes and materials; all produced in high quality materials and designed for sleek appearance and easy installation.
Features and benefits:
- Panels in roll-formed or extruded aluminum for highest weather resistance.
- Matching support structures in aluminum make a complete and highly durable system.
- Variable modules for best shading efficiency.
- Continuous linear appearance of panels.
- Virtually maintenance-free.
Color
White, Silver, Other
White, Silver, Other
Finish
Painted
Painted
Material
Aluminium
Aluminium
Shape
Rectangle
Rectangle
Length
Bespoke
Bespoke
Width
84 mm, 70 mm, 132 mm
84 mm, 70 mm, 132 mm
Height
Bespoke
Bespoke
Warranty description
Five year
Five year
Specification
Classification data
Support arms
-
-
Material
Manufacturer's standard.
Manufacturer's standard.
Finish
Powder-coated.
Powder-coated.
Colour
As louvre blades.
As louvre blades.
Array louvre blades
-
-
Material
Manufacturer's standard.
Manufacturer's standard.
Finish
Luxacote finish, three layers.
Luxacote finish, three layers.
Front rail
-
-
Material
Manufacturer's standard.
Manufacturer's standard.
Finish
As louvre blades.
As louvre blades.
Colour
As louvre blades.
As louvre blades.
Additional properties
Installation
Spacers and panel brackets are sliding into support rail which is fixed with rail clamp to substructure.
Panels are clipped on the carriers or panel brackets.
Components
Horizontal bracket., Vertical bracket., Spacers.
Horizontal bracket., Vertical bracket., Spacers., SL-2 horizontal stringers/ brackets., SL-4 horizontal stringers/ brackets., SL-3 vertical stringers/ brackets., SL-4 vertical stringers/ brackets., SL-5 vertical stringers/ brackets.
Support system
Aluminium extruded supporting rail for panels and spacers.
-
Supports
Railclamp with washer set.
-
Fixing
Clip system.
-
Configuration
Horizontal., Sloped., Combination., Curved.
Horizontal., Sloped., Combination., Curved.
Format
Manufacturer's standard.
Manufacturer's standard.
Rail dimensions
Manufacturer's standard.
Manufacturer's standard.
Certification
Cradle to Cradle Certified™ Bronze, FSC Certified, suitable for BREEAM and Leed, French VOC-regulation class A+, Oeko-tex Standard 100 klasse IV, SundaHus Miljödata klasse A, GreenGuard Gold.
Cradle to Cradle Certified™ Bronze, FSC Certified, suitable for BREEAM and Leed, French VOC-regulation class A+, Oeko-tex Standard 100 klasse IV, SundaHus Miljödata klasse A, GreenGuard Gold.
Sustainability data
Contains Red List materials
No
No
Country of product manufacture
Netherlands
Netherlands
Material
Aluminium
Aluminium
Recycled content
92 %
92 %
