Summary

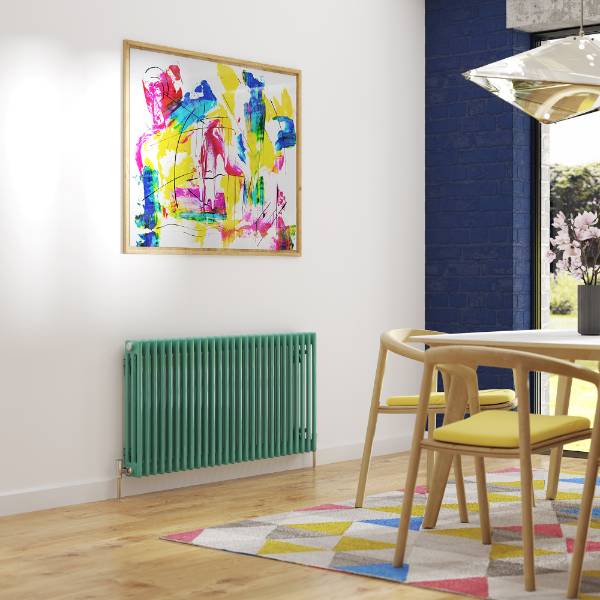

A Classic Column radiator with a classic design for contemporary and traditional interiors.
A Classic Column radiator with a classic design for contemporary and traditional interiors.
Application
Suitable use for minimalist residential and commercial projects.
Suitable use for minimalist residential and commercial projects.
Description
A Classic Column radiator with a classic design for contemporary and traditional interiors. Suitable for warehouse conversions, provide compatibility with period refurbishment, while suiting new building designs, both commercial and domestic.
Features and benefits:
- Available in horizontal and vertical versions.
- Conforms to BS EN 442.
- Performs to a maximum working pressure of 116 psi (8 bar).
- Available in white as standard and can be specially ordered in up to 35 colours, making it suitable for matching to a corporate or specific colour décor.
- Available in a variety of heights and widths plus options of two, three or four columns, the Classic Column provides versatile sizing flexibility that is suitable for use in a minimalist project, or for applications where workspace is restricted.
- Accessories are available, such as floor standing brackets, to ensure that the Stelrad Compact can be fitted within a wide range of applications - consult manufacturer for details.
- Depth: Dependent on version and columns, consult manufacturer's literature for information.
- Elements: Dependent on size, consult manufacturer's literature for information.
- Technical characteristics: Dependent on size and columns, consult manufacturer's literature for information.
A Classic Column radiator with a classic design for contemporary and traditional interiors. Suitable for warehouse conversions, provide compatibility with period refurbishment, while suiting new building designs, both commercial and domestic.
Features and benefits:
- Available in horizontal and vertical versions.
- Conforms to BS EN 442.
- Performs to a maximum working pressure of 116 psi (8 bar).
- Available in white as standard and can be specially ordered in up to 35 colours, making it suitable for matching to a corporate or specific colour décor.
- Available in a variety of heights and widths plus options of two, three or four columns, the Classic Column provides versatile sizing flexibility that is suitable for use in a minimalist project, or for applications where workspace is restricted.
- Accessories are available, such as floor standing brackets, to ensure that the Stelrad Compact can be fitted within a wide range of applications - consult manufacturer for details.
- Depth: Dependent on version and columns, consult manufacturer's literature for information.
- Elements: Dependent on size, consult manufacturer's literature for information.
- Technical characteristics: Dependent on size and columns, consult manufacturer's literature for information.
Color
White, Other, Black, Blue, Bronze, Brown, Cream, Green, Grey, Ivory, Orange, Red, Silver, Turquoise, Yellow
White, Other, Black, Blue, Bronze, Brown, Cream, Green, Grey, Ivory, Orange, Red, Silver, Turquoise, Yellow
Finish
Painted
Painted
Material
Steel
Steel
Shape
Rectangle
Rectangle
Warranty description
Five year
Five year
Specification
Standards
To BS EN 442.
To BS EN 442.
Radiator type
Steel, two columns.
Steel, two columns., Steel, three columns., Steel, four columns.
Output
868–1539 W (2962–5253 Btu/h).
288–2630 W (983–8976 Btu/h).
Finish
Painted.
Painted.
Connections
½” inlet.
½” inlet.
Accessories
Not required., Floor standing brackets.
Not required., Floor standing brackets.
Additional properties
Size (h x l)
1800–2500 x 352–444 mm.
300–750 x 444–1870 mm.
Colour
White (RAL 9016)., Special order.
White (RAL 9016)., Special order.
Configuration
Vertical radiator.
Horizontal radiator.
WorkingPressure
8 bar.
8 bar.
Operating pressure (maximum)
13.5 bar.
13.5 bar.
