Summary
Electronic WC flush control.
Electronic WC flush control.
Application
- For manual remote flush actuation of Sigma concealed cisterns 12 cm using a touchless IR button.
- For releasing a dual flush.
- For installation in solid and drywall constructions with flushmounting box.
- For installation in bathroom furniture with counternut.
- Suitable for less-abled installation.
- For Sigma concealed cisterns 12 cm.
- Not suitable for use with Geberit inserts for in-cistern block.
- For manual remote flush actuation of Sigma concealed cisterns 12 cm using a touchless IR button.
- For releasing a dual flush.
- For installation in solid and drywall constructions with flushmounting box.
- For installation in bathroom furniture with counternut.
- Suitable for less-abled installation.
- For Sigma concealed cisterns 12 cm.
- Not suitable for use with Geberit inserts for in-cistern block.
Description

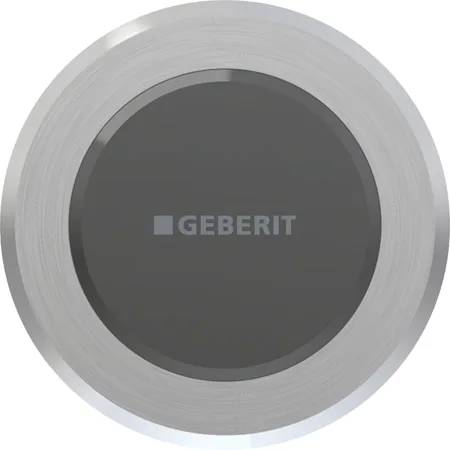

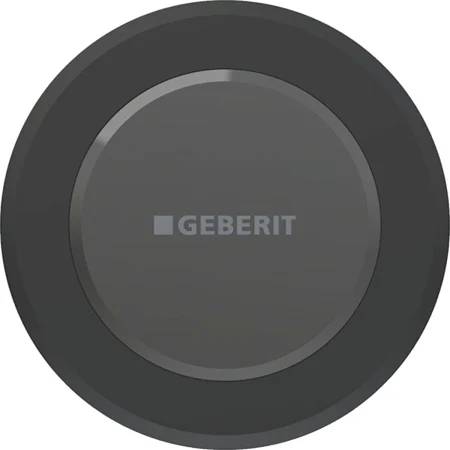

Electronic WC flush control, battery operation, for Sigma concealed cistern 12 cm, with Type 10 round RF-controlled button.
Features and benefits:
- Touchless manual flush actuation.
- Touchless flush actuation for single or dual flush by moving hand toward sensor.
- Single or dual flush can be triggered via flush plate.
- Can be combined with Sigma01 to Sigma70 actuator plates or Geberit cover plates.
- Battery-operated.
- Batteries in closed battery compartment in the flushing cistern.
- With push-fit connection with cross-polarity protection.
- Interval flush pre-set.
- Adjustable interval flush.
- Device settings and operation with mobile device via integrated Bluetooth® interface.
- Compatible with Geberit Control App.
- Wired networkable with Geberit gateway via GEBUS converter.
- Wirelessly connectable with Geberit Gateway via Bluetooth®.
- Compatible with Geberit Connect.
- Low-noise lifting mechanism.
- Electrical lifting device, self-calibrating.
Supplied:
- Infrared button with 2 m connection cable.
- Flush-mounting box.
- Counternut.
- Conduit pipe, length 1.7 m.
- Mounting frame with battery compartment, pre-mounted.
- Protection plate.
- Support block with servomotor and lifting device, pre-mounted.
- Electrical control.
- Two alkaline manganese batteries LR20, each 1.5 V.
Electronic WC flush control, battery operation, for Sigma concealed cistern 12 cm, with Type 10 round RF-controlled button.
Features and benefits:
- Touchless manual flush actuation.
- Touchless flush actuation for single or dual flush by moving hand toward sensor.
- Single or dual flush can be triggered via flush plate.
- Can be combined with Sigma01 to Sigma70 actuator plates or Geberit cover plates.
- Battery-operated.
- Batteries in closed battery compartment in the flushing cistern.
- With push-fit connection with cross-polarity protection.
- Interval flush pre-set.
- Adjustable interval flush.
- Device settings and operation with mobile device via integrated Bluetooth® interface.
- Compatible with Geberit Control App.
- Wired networkable with Geberit gateway via GEBUS converter.
- Wirelessly connectable with Geberit Gateway via Bluetooth®.
- Compatible with Geberit Connect.
- Low-noise lifting mechanism.
- Electrical lifting device, self-calibrating.
Supplied:
- Infrared button with 2 m connection cable.
- Flush-mounting box.
- Counternut.
- Conduit pipe, length 1.7 m.
- Mounting frame with battery compartment, pre-mounted.
- Protection plate.
- Support block with servomotor and lifting device, pre-mounted.
- Electrical control.
- Two alkaline manganese batteries LR20, each 1.5 V.
Color
Black, Silver
Black, Silver
Finish
Matt, Brushed
Matt, Brushed
Material
Stainless steel, Brass
Stainless steel, Brass
Shape
Circle
Circle
Length
5 mm
5 mm
Width
6 mm
6 mm
Height
6 mm
6 mm
SKU Code
115.937.14.6, 115.937.SN.6
115.937.14.6, 115.937.SN.6
Specification
Flush rate
Interval flush, adjustment range: 1–168 h.
Interval flush, factory setting: 24 h.
Interval flush time, adjustment range: 1–200 s.
Interval flush time, factory setting: 5 s.
Interval flush, adjustment range: 1–168 h.
Interval flush, factory setting: 24 h.
Interval flush time, adjustment range: 1–200 s.
Interval flush time, factory setting: 5 s.
Materials
-
-
Body
Brass.
-
Finish and colour
Black matt.
-
Operation
Type 10 RF-controlled button, round.
Type 10 RF-controlled button, round.
Controller
Battery-operated.
Battery-operated.
Body
-
Stainless steel.
Finish and colour
-
Brushed.
Additional properties
Battery type
Alkaline manganese batteries LR20, 1.5 V each.
Alkaline manganese batteries LR20, 1.5 V each.
Protection class
IP45.
IP45.
Nominal voltage
85–240 V a.c.
85–240 V a.c.
Operating voltage
3 V d.c.
3 V d.c.
Power consumption
≤4 W.
≤4 W.
Accessories
Not required., Actuator plate., Cover plate.
Not required., Actuator plate., Cover plate.
Sustainability data
Material
Stainless steel, Brass
Stainless steel, Brass
