Summary
Modular ceiling system with concealed grid and decorative aluminium profile between each panel.
Modular ceiling system with concealed grid and decorative aluminium profile between each panel.
Application
Suitable for healthcare, education, and office applications.
Suitable for healthcare, education, and office applications.
Description
Ecophon Focus™ Dt has a concealed grid with a decorative aluminium profile between each panel. The system is modular, demountable and easy to install with the possibility to integrate light fittings and ventilation.
Features and benefits:
- Absorption class A.
- Primed edge with elegant trim design.
- Easy assembly.
- Easily demountable tiles.
- Tiles are available in a range of colours.
- Trim available in gold or aluminium.
- Cradle to Cradle Certified® at Bronze level.
Ecophon Focus™ Dt has a concealed grid with a decorative aluminium profile between each panel. The system is modular, demountable and easy to install with the possibility to integrate light fittings and ventilation.
Features and benefits:
- Absorption class A.
- Primed edge with elegant trim design.
- Easy assembly.
- Easily demountable tiles.
- Tiles are available in a range of colours.
- Trim available in gold or aluminium.
- Cradle to Cradle Certified® at Bronze level.
Product certifications
Color
White, Blue, Grey, Orange, Pink, Green, Yellow, Red, Brown, Black, Beige
White, Blue, Grey, Orange, Pink, Green, Yellow, Red, Brown, Black, Beige
Material
Glass mineral wool, Steel
Glass mineral wool, Steel
Shape
Square, Rectangle
Square, Rectangle
Length
600 mm, 1200 mm
600 mm, 1200 mm
Width
600 mm
600 mm
Height
20 mm
20 mm
Warranty description
Ten year
Ten year
SKU Code
M673
M674
Specification
System manufacturer
Saint-Gobain Ecophon.
Saint-Gobain Ecophon.
Ceiling support
Connect grid system.
Connect grid system.
Ceiling units
Focus Dt.
Focus Dt.
Additional properties
Installation

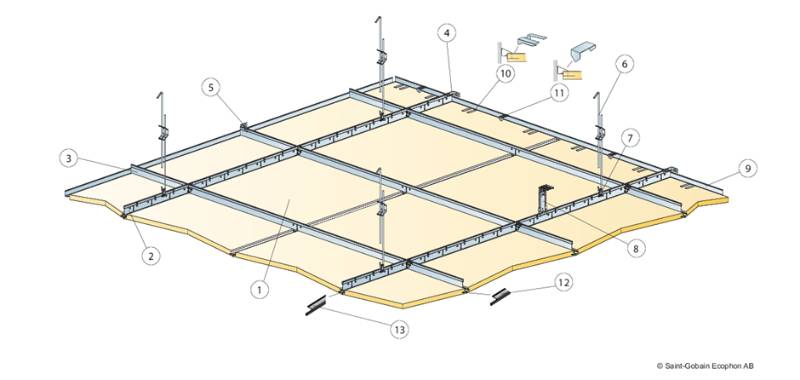

M673 – Suspended, single layer system.

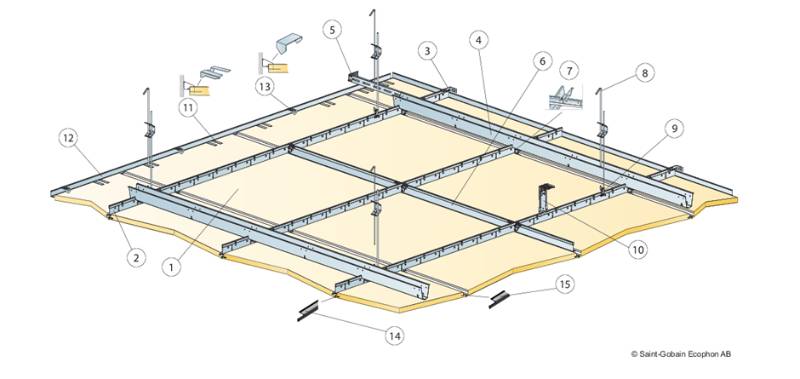

M674 – Suspended with space bar.
Sound absorption
To EN ISO 354, Class A.
To EN ISO 354, Class A.
Reaction to fire
To EN 13501-1, A2-s1,d0.
To EN 13501-1, A2-s1,d0.
Size (length x width)
600 x 600 mm.
600 x 600 mm., 1200 x 600 mm.
Thickness (overall)
20 mm.
20 mm.
Weight
3.3 kg/m².
3.3 kg/m².
Surface finish
Akutex™ FT.
Akutex™ FT.
Colour
White frost., Moonlight sky., Highland fog., Sunset heat., Ocean storm., Morning drizzle., Peach rose., Goji berry., Scallop shells., Fresh clover., Sage garden., Eucalyptus leaf., Summer forest., Golden field., Ruby rock., Wet sand., Silent steam., Dark diamond., Cloudy day., Volcanic ash., Silver stone., Silk slate.
White frost., Moonlight sky., Highland fog., Sunset heat., Ocean storm., Morning drizzle., Peach rose., Goji berry., Scallop shells., Fresh clover., Sage garden., Eucalyptus leaf., Summer forest., Golden field., Ruby rock., Wet sand., Silent steam., Dark diamond., Cloudy day., Volcanic ash., Silver stone., Silk slate.
Core material
Glass wool.
Glass wool.
Constant humidity resistance
To EN 13964:2014, Class C, relative humidity 95% and 30°C.
To EN 13964:2014, Class C, relative humidity 95% and 30°C.
Indoor climate
Eurofins Indoor Air Comfort®: IAC Gold.
French VOC: A+.
French VOC: A+.
Eurofins Indoor Air Comfort®: IAC Gold.
French VOC: A+.
French VOC: A+.
Standard
CE marked according to the European harmonized standard EN 13964:2014.
CE marked according to the European harmonized standard EN 13964:2014.
Profile colour
Gold., Aluminium.
Gold., Aluminium.
Sustainability data
Contains Red List materials
No
No
Country of material origin
Sweden
Sweden
Country of product manufacture
Sweden
Sweden
Manufacturing plant location
The Old Post Office, St Nicholas' St, Newcastle upon Tyne NE1 1RH, UK
The Old Post Office, St Nicholas' St, Newcastle upon Tyne NE1 1RH, UK
Material
Glass mineral wool, Steel
Glass mineral wool, Steel
A1–A3 ('Production stage')
Embodied carbon as defined in BS EN 15804
Normalized unit
-
-
Declared unit
2,60 kg CO₂ eq/unit
2,60 kg CO₂ eq/unit
Recyclability
Fully recyclable
Fully recyclable
Recycled content
54 %
54 %
Expected Life
50 year
50 year
