Summary

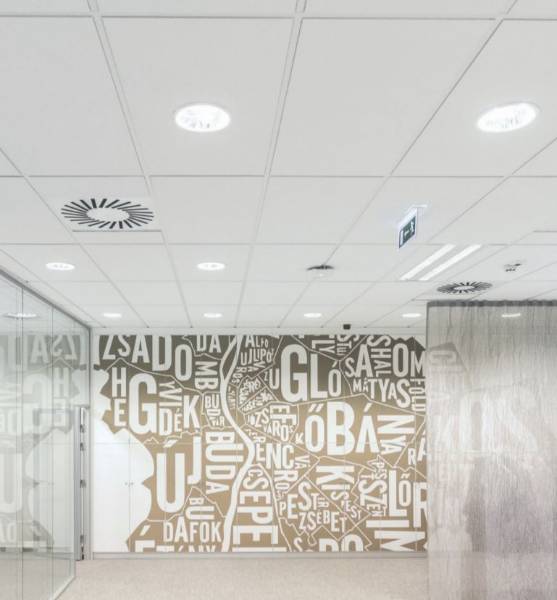

Suspended ceiling system including lay-in mineral ceiling tiles with a smooth laminated finish that combines sound absorption and sound attenuation for balanced acoustic performance.
Suspended ceiling system including lay-in mineral ceiling tiles with a smooth laminated finish that combines sound absorption and sound attenuation for balanced acoustic performance.
Suspended ceiling system including lay-in mineral ceiling tiles with a smooth laminated finish that combines sound absorption and sound attenuation for balanced acoustic performance.
Application
Suspended ceilings, especially working and learning environments including open plan offices, board rooms, SEN schools and libraries.
Suspended ceilings, especially working and learning environments including open plan offices, board rooms, SEN schools and libraries.
Suspended ceilings, especially working and learning environments including open plan offices, board rooms, SEN schools and libraries.
Description
Suspended ceiling system including lay-in mineral ceiling tiles with a smooth laminated finish that combines sound absorption and sound attenuation for balanced acoustic performance.
Previously known as Perla.
Features and benefits:
- High light reflectance of 86% to boost wellbeing.
- Cradle to Cradle Certified™ Bronze.
- Enhanced product durability.
- Extremely low VOC emissions to further improve end user productivity and health.
- ISO 5/ A+.
Grids:
Compatible grids, by edge detail:
- Board/ Tegular24:
- Gridline 24 jogged/butt cut.
- Prelude 24 Sixty².
- Tegular15:
- Gridline 15 jogged/butt cut.
- Interlude HRC XL².
- Silhouette XL².
Suspended ceiling system including lay-in mineral ceiling tiles with a smooth laminated finish that combines sound absorption and sound attenuation for balanced acoustic performance.
Previously known as Perla.
Features and benefits:
- High light reflectance of 86% to boost wellbeing.
- Cradle to Cradle Certified™ Bronze.
- Enhanced product durability.
- Extremely low VOC emissions to further improve end user productivity and health.
- ISO 5/ A+.
Grids:
Compatible grids, by edge detail:
- Board/ Tegular24:
- Gridline 24 jogged/butt cut.
- Prelude 24 Sixty².
- Tegular15:
- Gridline 15 jogged/butt cut.
- Interlude HRC XL².
- Silhouette XL².
Suspended ceiling system including lay-in mineral ceiling tiles with a smooth laminated finish that combines sound absorption and sound attenuation for balanced acoustic performance.
Previously known as Perla.
Features and benefits:
- High light reflectance of 86% to boost wellbeing.
- Cradle to Cradle Certified™ Bronze.
- Enhanced product durability.
- Extremely low VOC emissions to further improve end user productivity and health.
- ISO 5/ A+.
Grids:
Compatible grids, by edge detail:
- Board/ Tegular24:
- Gridline 24 jogged/butt cut.
- Prelude 24 Sixty².
- Tegular15:
- Gridline 15 jogged/butt cut.
- Interlude HRC XL².
- Silhouette XL².
Digital objects
Color
White
White
White
Finish
Smooth
Smooth
Smooth
Material
Mineral fibre, Steel
Mineral fibre, Steel
Mineral fibre, Steel
Shape
Square, Rectangle, Other
Square, Rectangle, Other
Square, Rectangle, Other
Length
Bespoke
Bespoke
Bespoke
Width
Bespoke
Bespoke
Bespoke
Warranty description
30 year
30 year
30 year
Specification
System performance
-
-
-
Ceiling support
Gridline 15 joggled/butt cut., Interlude HRC XL²., Silhouette XL².
Gridline 24 joggled/butt cut, Global White., Gridline 24 joggled/butt cut, White RAL 9010., Gridline 24 joggled/butt cut, Silver RAL 9006., Gridline 24 joggled/butt cut, Black., Prelude 24 Sixty².
Gridline 24 joggled/butt cut, Global White., Gridline 24 joggled/butt cut, White RAL 9010., Gridline 24 joggled/butt cut, Silver RAL 9006., Gridline 24 joggled/butt cut, Black., Prelude 24 Sixty².
Support fasteners
-
-
-
Ceiling units
600 x 600 x 17 mm Tegular15 edge mineral tiles in Global White (2805M)., 1500 x 600 x 17 mm Tegular15 edge mineral tiles in Global White (5181M).
600 x 600 x 17 mm board edge mineral tiles in Global White (2801M)., 1200 x 600 x 17 mm board edge mineral tiles in Global White (2802M).
600 x 600 x 17 mm Tegular24 edge mineral tiles in Global White (2803M).
Barriers in ceiling void
-
-
-
Fire barriers
-
-
-
Acoustic barriers
-
-
-
Plenum barriers
-
-
-
System accessories
-
-
-
Additional properties
Weight
Infill units: 4.6 kg/m².
Infill units: 4.6 kg/m².
Infill units: 4.6 kg/m².
Thermal Conductivity:
Infill units: 0.052 W/m·K.
Infill units: 0.052 W/m·K.
Infill units: 0.052 W/m·K.
Reaction to fire
To EN 13501-1, infill units: Euroclass A2-s1, d0; support grid: Euroclass A1.
To EN 13501-1, infill units: Euroclass A2-s1, d0; support grid: Euroclass A1.
To EN 13501-1, infill units: Euroclass A2-s1, d0; support grid: Euroclass A1.
Sound absorption
Infill units: αw = 0.65 (H); Class C.
Infill units: αw = 0.65 (H); Class C.
Infill units: αw = 0.65 (H); Class C.
Sound attenuation
Infill units: Dnfw = 35 dB.
Infill units: Dnfw = 35 dB.
Infill units: Dnfw = 35 dB.
Weighted sound reduction index, Rw
Infill units: 18 dB.
Infill units: 18 dB.
Infill units: 18 dB.
VOC emissions
Infill units: The VOC emission performance in accordance with the French labelling requirements: A+ (Vector is A).
Infill units: The VOC emission performance in accordance with the French labelling requirements: A+ (Vector is A).
Infill units: The VOC emission performance in accordance with the French labelling requirements: A+ (Vector is A).
Formaldehyde emissions
Infill units: To EN 13964, formaldehyde emission level E1 = Best test result possible.
Infill units: To EN 13964, formaldehyde emission level E1 = Best test result possible.
Infill units: To EN 13964, formaldehyde emission level E1 = Best test result possible.
Colour (Light reflectance value (LRV)
Infill units: 86%.
Infill units: 86%.
Infill units: 86%.
Cleanroom classification
To ISO 14644-1, ISO 5.
To ISO 14644-1, ISO 5.
To ISO 14644-1, ISO 5.
RelativeHumidity
Infill units: 95%.
Infill units: 95%.
Infill units: 95%.
Sustainability data
Contains Red List materials
No
No
No
Country of material origin
Europe
Europe
Europe
Country of product manufacture
United Kingdom
United Kingdom
United Kingdom
Recyclability
100%
100%
100%
Recycled content
41 %
41 %
41 %
