Summary

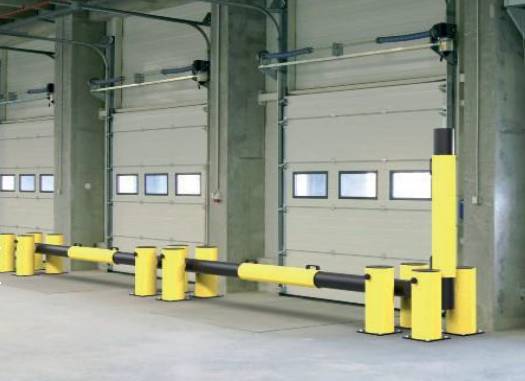

Dock gate designed to be installed in areas such as unloading bays, and can easily be opened when needed.
Dock gate designed to be installed in areas such as unloading bays, and can easily be opened when needed.
Dock gate designed to be installed in areas such as unloading bays, and can easily be opened when needed.
Application
Suitable for areas such as unloading bays, and can easily be opened when needed.
Suitable for areas such as unloading bays, and can easily be opened when needed.
Suitable for areas such as unloading bays, and can easily be opened when needed.
Description
The dock gate can be installed in areas such as unloading bays, and can easily be opened when needed.
Features and benefits:
- d-flexx dock gate element is made of poly-ethylene.
- For indoor and outdoor use.
- The fixing material is always included in the delivery.
- Can be planned individually.
- Tested to withstand force of (Joule): 5.600 J.
- Vehicle weight equivalent (kg): 3.000 kg.
- Vehicle equivalent speed (km/h): 7,0 km/h.
- Equivalent angle of impact: 90°.
- Deflection zone: 250 mm.
The dock gate can be installed in areas such as unloading bays, and can easily be opened when needed.
Features and benefits:
- d-flexx dock gate element is made of poly-ethylene.
- For indoor and outdoor use.
- The fixing material is always included in the delivery.
- Can be planned individually.
- Tested to withstand force of (Joule): 5.600 J.
- Vehicle weight equivalent (kg): 3.000 kg.
- Vehicle equivalent speed (km/h): 7,0 km/h.
- Equivalent angle of impact: 90°.
- Deflection zone: 250 mm.
The dock gate can be installed in areas such as unloading bays, and can easily be opened when needed.
Features and benefits:
- d-flexx dock gate element is made of poly-ethylene.
- For indoor and outdoor use.
- The fixing material is always included in the delivery.
- Can be planned individually.
- Tested to withstand force of (Joule): 5.600 J.
- Vehicle weight equivalent (kg): 3.000 kg.
- Vehicle equivalent speed (km/h): 7,0 km/h.
- Equivalent angle of impact: 90°.
- Deflection zone: 250 mm.
Digital objects
Color
Black, Yellow
Black, Yellow
Black, Yellow
Finish
Matt
Matt
Matt
Material
Polyethylene
Polyethylene
Polyethylene
Shape
Other
Other
Other
Length
2600 mm, 2750 mm, 3750 mm
2600 mm, 2750 mm, 3750 mm
2600 mm, 2750 mm, 3750 mm
Width
585 mm
585 mm
585 mm
Height
516 mm
516 mm
516 mm
Warranty description
Five year
Five year
Five year
SKU Code
DFNO-W2300, DFNO-W2600, DFNO-WI
DFNO-W2300, DFNO-W2600, DFNO-WI
DFNO-W2300, DFNO-W2600, DFNO-WI
Specification
System performance
Manage pedestrian flow around safe routes.
Manage pedestrian flow around safe routes.
Manage pedestrian flow around safe routes.
Method of operation
Hinged swing gate.
Hinged swing gate.
Hinged swing gate.
Gate assembly
Plastics gates.
Plastics gates.
Plastics gates.
Additional properties
Height
516 mm.
516 mm.
516 mm.
Width
585 mm.
585 mm.
585 mm.
Length
2750—3750 mm.
2750 mm.
3050 mm.
Lengths
2300—3300 mm.
2300 mm.
2600 mm.
Weight
63.2 kg.
56.2 kg.
58.3 kg.
Deflection
250 mm.
250 mm.
250 mm.
Colour
Yellow (like RAL 1023 traffic yellow) / black.
Yellow (like RAL 1023 traffic yellow) / black.
Yellow (like RAL 1023 traffic yellow) / black.
Fixing
Concrete screw anchors M12 x 80 mm.
Concrete screw anchors M12 x 80 mm.
Concrete screw anchors M12 x 80 mm.
Fixing holes
16.
16.
16.
Chemical resistance
High- ISO/TR 10358.
High- ISO/TR 10358.
High- ISO/TR 10358.
TemperatureRange
-10° up to + 50°.
-10° up to + 50°.
-10° up to + 50°.
Sustainability data
Contains Red List materials
No
No
No
Country of material origin
Denmark
Denmark
Denmark
Country of product manufacture
Denmark
Denmark
Denmark
A1–A3 ('Production stage')
Embodied carbon as defined in BS EN 15804
Normalized unit
-
-
-
Declared unit
23 kg·CO₂e/kg
23 kg·CO₂e/kg
23 kg·CO₂e/kg
Recyclability
100%
100%
100%
Recycled content
0 %
0 %
0 %
