Corium Brick Tile Cladding System
Corium Brick Tile Cladding System

Last verified by manufacturer over a year ago

Wienerberger Ltd

Corner profile

Last verified by manufacturer over a year ago

Wienerberger Ltd

Standard profile

Summary
Corium is a brick tile cladding system.
Corium is a brick tile cladding system.
Application

Suitable for use as a protective/ decorative cladding over external masonry, concrete, steel frame or timber frame substrate walls of new and existing domestic and non-domestic buildings.

Suitable for use as a protective/ decorative cladding over external masonry, concrete, steel frame or timber frame substrate walls of new and existing domestic and non-domestic buildings.

Description

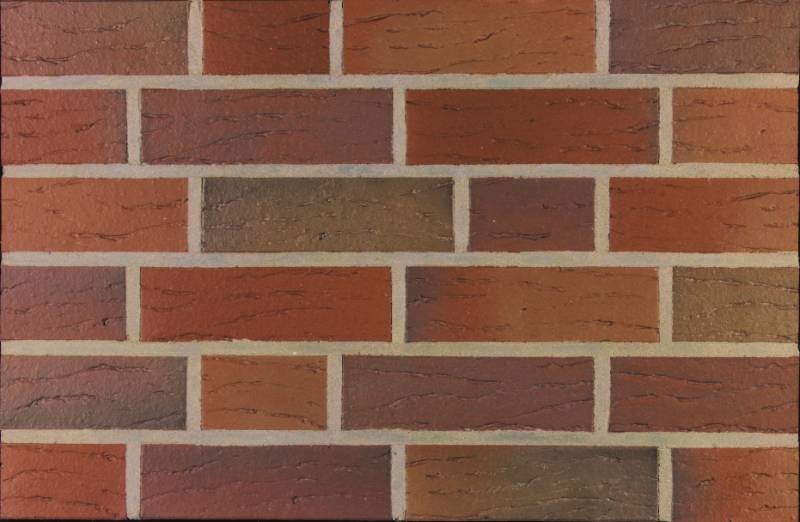

Corium is a mechanically fixed brick cladding system comprising interlocking steel backing sections and extruded brick tiles. Brick tiles clip into the steel backing sections and the vertical and horizontal joints between the tiles are then pointed to provide a brickwork finish.


Features and benefits:

  • Two profiles available; standard tile and one piece corner tile.

Corium is a mechanically fixed brick cladding system comprising interlocking steel backing sections and extruded brick tiles. Brick tiles clip into the steel backing sections and the vertical and horizontal joints between the tiles are then pointed to provide a brickwork finish.


Features and benefits:

  • Two profiles available; standard tile and one piece corner tile.
Product certifications
Color
Orange, Red, Black, White, Cream, Grey, Yellow, Blue, Green, Brown, Other
Orange, Red, Black, White, Cream, Grey, Yellow, Blue, Green, Brown, Other
Finish
Glazed, Matt, Smooth, Dragfaced, Creased, Sanded, Rustic
Glazed, Matt, Smooth, Dragfaced, Creased, Sanded, Rustic
Material
Clay, Steel
Clay, Steel
Size
215 x 32 x 65 mm, 215 x 32 x 50 mm, 215 x 32 x 140 mm, 327 x 32 x 215 mm, 215 x 52 x 65 mm, 215 x 82 x 65 mm, 215 x 47 x 50 mm
215 x 32 x 65 mm, 215 x 32 x 50 mm, 215 x 32 x 140 mm, 327 x 32 x 215 mm, 215 x 52 x 65 mm, 215 x 82 x 65 mm, 215 x 47 x 50 mm
WarrantyDescription
25 year
25 year

Specification

Classification data
Secondary support structure
Interlocking steel backing sections.
Interlocking steel backing sections.
Cladding panels
-
-
Material
Facing brick.
Facing brick.

Additional properties

Dry weight
0.83 kg.
0.83 kg.
Quantity
-
-
Work sizes
215 x 32 x 65 mm.
215 x 32 x 65 mm.
Finished size
215 x 102 x 65 mm
215 x 32 x 65 mm., 215 x 32 x 50 mm., 215 x 32 x 140 mm., 327 x 32 x 215 mm., 215 x 52 x 65 mm., 215 x 82 x 65 mm., 215 x 47 x 50 mm., Other.
Third-party certification
BBA certified.
BBA certified.
Surface texture
Glazed., Matt., Smooth., Dragfaced., Creased., Sanded., Rustic edges.
Glazed., Matt., Smooth., Dragfaced., Creased., Sanded., Rustic edges.
Colour
Orange., Red., Black., White., Cream., Grey., Yellow., Blue., Green., Brown., Glazed., Buff.
Orange., Red., Black., White., Cream., Grey., Yellow., Blue., Green., Brown., Glazed., Buff.

Sustainability data

Contains Red List materials
No
No
Country of material origin
Germany
Germany
Recyclability
100%
100%
