Summary

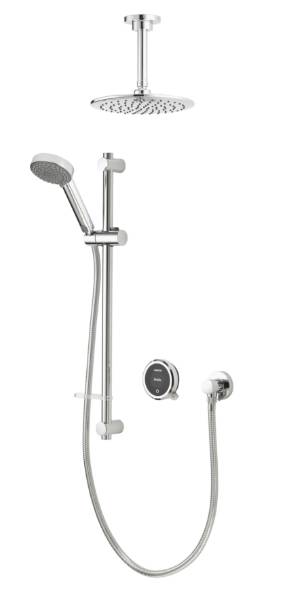

Built-in dual outlet smart shower with wall outlet for adjustable handset and ceiling fixed drencher head.
Built-in dual outlet smart shower with wall outlet for adjustable handset and ceiling fixed drencher head.
Application
Permissible Aqualisa SmartValve™ siting location: Loft, airing cupboard, under bath. Water system requirements: HP, combi and boosted gravity.
Permissible Aqualisa SmartValve™ siting location: Loft, airing cupboard, under bath. Water system requirements: HP, combi and boosted gravity.
Description
Fixed and adjustable showerheads.
Features and benefits:
- 105 mm showerhead diameter (4 spray patterns) and 230 mm fixed head.
- Proximity sensor (to wake controller up).
- Large rotary temperature ring.
- Digital display system.
- Unique lever control.
- User definable shower profiles/ experiences (available via the Aqualisa app).
- Adjustable up to maximum centres of 657 mm.
- Warm and ready indicator.
- Optical on/ off switch.
- Magnetically damped lever.
- Aqualisa SmartValve™.
- Wi-Fi and app compatible – control the product with a smart phone or smart home device e.g. Alexa or Google home.
- App functions include start/ stop, shower timer, user dashboard, usage tracker and help/ support.
- Optional wireless rechargeable remote control (separate product).
- Digital diverter technology.
- CE marked.
- Five-year guarantee.
Fixed and adjustable showerheads.
Features and benefits:
- 105 mm showerhead diameter (4 spray patterns) and 230 mm fixed head.
- Proximity sensor (to wake controller up).
- Large rotary temperature ring.
- Digital display system.
- Unique lever control.
- User definable shower profiles/ experiences (available via the Aqualisa app).
- Adjustable up to maximum centres of 657 mm.
- Warm and ready indicator.
- Optical on/ off switch.
- Magnetically damped lever.
- Aqualisa SmartValve™.
- Wi-Fi and app compatible – control the product with a smart phone or smart home device e.g. Alexa or Google home.
- App functions include start/ stop, shower timer, user dashboard, usage tracker and help/ support.
- Optional wireless rechargeable remote control (separate product).
- Digital diverter technology.
- CE marked.
- Five-year guarantee.
Product certifications
Digital objects
Color
Silver
Silver
Finish
Chrome
Chrome
Material
Metal, Plastic
Metal, Plastic
Shape
Circle
Circle
Length
320 mm
320 mm
Height
700 mm
700 mm
Warranty description
Five year, Two year
Five year, Two year
SKU Code
QZST.A1.BV.DVFC.20, QZST.A2.BV.DVFC.20
QZST.A1.BV.DVFC.20, QZST.A2.BV.DVFC.20
Specification
Classification data
Approvals
CE marked and BEAB approval mark.
CE marked and BEAB approval mark.
Form
Touch smart divert concealed shower.
Touch smart divert concealed shower.
Materials
-
-
Body
Metal and plastic.
Metal and plastic.
Finish and colour
Chrome plated.
Chrome plated.
Flow rate (maximum)
10-16 L/min.
10-16 L/min.
Water supply temperature (maximum)
65°C.
65°C.
Additional properties
Pressure
1—7 bar.
0.1—1 bar.
Shower head
105 mm (adjustable head), 230 mm (fixed head).
105 mm (adjustable head), 230 mm (fixed head).
Controller
98 x 98 x 34 mm.
98 x 98 x 34 mm.
InletConnectionSize
15 mm push fit.
15 mm push fit.
OutletConnectionSize
15 mm push fit.
15 mm push fit.
Centres
48 mm.
48 mm.
Position
Hot right, cold left.
Hot right, cold left.
System
HP, combi system.
Gravity pumped system.
HoseLength
1500 mm.
1500 mm.
Sustainability data
Country of material origin
Malaysia
Malaysia
Country of product manufacture
Malaysia
Malaysia
