Driveway and Ramp De-icing - Electric Heating System
Driveway and Ramp De-icing - Electric Heating System

Last verified by manufacturer over a year ago

Heat Mat Ltd

HDS-50W-085M - 85 m

Last verified by manufacturer over a year ago

Heat Mat Ltd

HDS-50W-021M - 21 m

Summary
Automatic ramp and driveway electric heating system.
Automatic ramp and driveway electric heating system.
Application

Suitable for ramps and driveways.

Suitable for ramps and driveways.

Description

An external heating system that can be used beneath virtually any surface for automated ice and snow clearance. A number of exterior heating cables are available to protect ramps, driveways, car parks, pavements, steps, loading areas and bridges. Tyre tracks can be heated on long driveways to minimise running and installation costs.


The system includes an outdoor heating cable, a driveway heating system thermostat and a ground temperature and moisture sensor.


Driveway heating cable:

  • Output range: 1.05–4.25 kW.
  • Standard range: 21–85 m.
  • Wire thickness: 10 mm.
  • Fixing materials: Choice of methods available.

10.8 kW Thermostat

  • Supply voltage: 120/230 V ±10%, 50-60 Hz.
  • Temperature range: 0 to +5°C.
  • Working range: -20 to +5°C.
  • Built-in timer snow melting/ afterrun: 1-6 hours.
  • Output relay: 3 x 16 A potential free relay.
  • Two zone application: Output is 2 x 16A potential free relay. Water based system: Controlling a 3 or 4 way valve, primary pump, secondary pump.
  • Display: Graphic and with backlight.
  • Ambient operating temp: 0 to +50°C.
  • Mounting: DIN-rail mount.
  • Housing and cover: IP20.
  • Dimensions: 170 x 162 x 45 mm.
  • Red (fault indication) and green (on) LED status indication.

Ground temperature and moisture sensor:

  • Mounting: Outdoor area.
  • Housing: IP68.
  • Operating temperature: -20 to + 70°C.
  • Dimensions: 32 mm high, 60 mm diameter.


Features and benefits:

  • Fully automatic clearance of ice and snow.
  • Improved safety for vehicles and pedestrians.
  • Programmable controllers monitor temperature and moisture levels for energy efficiency.
  • Reduce damage to asphalt and concrete surfaces.
  • Save labour and material costs during ice and snow clearance.
  • Protect grounds from salt pollution.
  • For normal installations, an output of around 270 W/m² is recommended.
  • Independently control two separate areas of heating via a single thermostat.
  • Once installed the systems are maintenance free.

Installation:

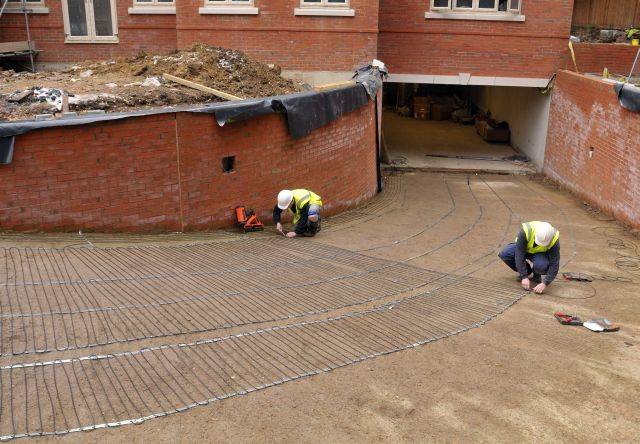

Exterior heating cables can be installed using Heat Fix metal fixing strips or cable-tied onto reinforcement mesh.

Specialist cables for hot asphalt:

The 10 mm Black Outdoor Heating Cable can be laid directly beneath hot asphalt. A standard cable can also be used but it will need to be covered with a minimum of 10 mm of sand and the asphalt cooled before laying. The asphalt layer should be a minimum of 55 mm thick.

An external heating system that can be used beneath virtually any surface for automated ice and snow clearance. A number of exterior heating cables are available to protect ramps, driveways, car parks, pavements, steps, loading areas and bridges. Tyre tracks can be heated on long driveways to minimise running and installation costs.


The system includes an outdoor heating cable, a driveway heating system thermostat and a ground temperature and moisture sensor.


Driveway heating cable:

  • Output range: 1.05–4.25 kW.
  • Standard range: 21–85 m.
  • Wire thickness: 10 mm.
  • Fixing materials: Choice of methods available.

10.8 kW Thermostat

  • Supply voltage: 120/230 V ±10%, 50-60 Hz.
  • Temperature range: 0 to +5°C.
  • Working range: -20 to +5°C.
  • Built-in timer snow melting/ afterrun: 1-6 hours.
  • Output relay: 3 x 16 A potential free relay.
  • Two zone application: Output is 2 x 16A potential free relay. Water based system: Controlling a 3 or 4 way valve, primary pump, secondary pump.
  • Display: Graphic and with backlight.
  • Ambient operating temp: 0 to +50°C.
  • Mounting: DIN-rail mount.
  • Housing and cover: IP20.
  • Dimensions: 170 x 162 x 45 mm.
  • Red (fault indication) and green (on) LED status indication.

Ground temperature and moisture sensor:

  • Mounting: Outdoor area.
  • Housing: IP68.
  • Operating temperature: -20 to + 70°C.
  • Dimensions: 32 mm high, 60 mm diameter.


Features and benefits:

  • Fully automatic clearance of ice and snow.
  • Improved safety for vehicles and pedestrians.
  • Programmable controllers monitor temperature and moisture levels for energy efficiency.
  • Reduce damage to asphalt and concrete surfaces.
  • Save labour and material costs during ice and snow clearance.
  • Protect grounds from salt pollution.
  • For normal installations, an output of around 270 W/m² is recommended.
  • Independently control two separate areas of heating via a single thermostat.
  • Once installed the systems are maintenance free.

Installation:

Exterior heating cables can be installed using Heat Fix metal fixing strips or cable-tied onto reinforcement mesh.

Specialist cables for hot asphalt:

The 10 mm Black Outdoor Heating Cable can be laid directly beneath hot asphalt. A standard cable can also be used but it will need to be covered with a minimum of 10 mm of sand and the asphalt cooled before laying. The asphalt layer should be a minimum of 55 mm thick.

Color
Black
Black
Material
Silicon, PVC, Aluminium, Fiber-glass
Silicon, PVC, Aluminium, Fiber-glass
Shape
Other
Other
Length
21000 mm, 85000 mm
21000 mm, 85000 mm
Width
10 mm
10 mm
Height
10 mm
10 mm
WarrantyDescription
Ten year
Ten year
SKU Code
ICE-50W/ICE-040/PKC-7.0
ICE-50W/ICE-040/PKC-7.0

Specification

Classification data
Heating elements
10 mm Black Outdoor Heating Cable., Submit proposals.
10 mm Black Outdoor Heating Cable., Submit proposals.
Controls
Programmable with temperature sensor., Programmable thermostat with temperature and moisture sensor., Submit proposals.
Programmable with temperature sensor., Programmable thermostat with temperature and moisture sensor., Submit proposals.

Additional properties

Cable length
85 m.
21 m.
Power requirement
200 W/m²., 250 W/m²., 300 W/m²., Submit proposals.
200 W/m²., 250 W/m²., 300 W/m²., Submit proposals.
NominalSupplyVoltage
230 V (±10%).
230 V (±10%).
Ingress protection (IP) rating
IPX7.
IPX7.
Output
4.25 kW.
1.05 kW.
Rating
55 W/m.
55 W/m.
Coverage
14.2–21.25 m².
3.5–5.25 m².
Cable
Coldtail lead: 5 m double insulated cable. Cable flexibility: Minimum radius 100 mm. Cable reinforcement: Fibreglass strands.
Coldtail lead: 5 m double insulated cable. Cable flexibility: Minimum radius 100 mm. Cable reinforcement: Fibreglass strands.
Insulation
Inner insulation: 0.8 mm silicon rubber; Outer insulation: Robust PVC UV resistant; Sacrificial insulation: PVC 1.2 mm.
Inner insulation: 0.8 mm silicon rubber; Outer insulation: Robust PVC UV resistant; Sacrificial insulation: PVC 1.2 mm.
HasProtectiveEarth
true
true
UV stabilization
Confirmed UV stable, not suitable for open air use
Confirmed UV stable, not suitable for open air use
Fixing
Heat Fix metal fixing strips., Cable-tie onto reinforcement mesh.
Heat Fix metal fixing strips., Cable-tie onto reinforcement mesh.

Sustainability data

Country of product manufacture
Denmark
Denmark
