Summary

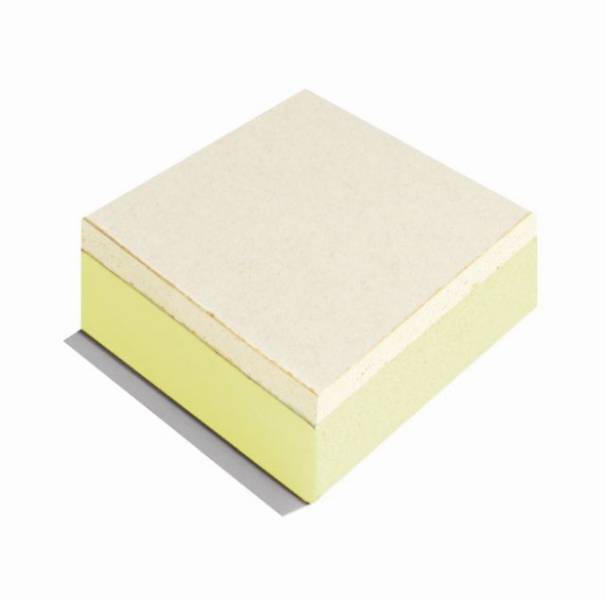

An insulated dry lining board laminate with enhanced thermal insulation.
-
-
Application
The board is used to provide high levels of improvement to thermal insulation in wall lining and roof applications. Consult local building regulations for use in external walls in buildings over 18 m.
-
-
Description
GTEC Thermal PIR Boards are suitable for a wide range of conversion or refurbishment projects that require a significant upgrade in the thermal performance. An additional vapour control layer reduces the risk of condensation.
Features and benefits:
- 12.5 mm plasterboard, bonded to polyisocyanurate foam (PIR).
- 40% thermal improvement over GTEC Thermal EPS Board.
- Range of thicknesses between 37.5 and 82.5 mm.
- The board complies with BS EN 520:2004+A1:2009 type A. Laminate complies with BS EN 13950:2014. The PIR insulation complies with BS EN 13165:2012+A2:2016.
- Fire, acoustic, thermal and duty performance dependent on the whole system. See Siniat Drywall Manual for Siniat system performances.
-
-
Material
Gypsum
-
-
Size
2400 x 1200 mm
-
-
Specification
Board thickness
37.5 mm.
-
-
Edge profile
Tapered.
-
-
Additional properties
Product Reference
Siniat GTEC Thermal PIR Board
-
-
Size:
2400 x 1200 mm.
-
-
Colour
Ivory on the face.
-
-
Weight
24.2 kg.
-
-
Mass
8.4 kg/m².
-
-
Thermal resistance (R-value)
1.20 m²K/W.
-
-
Water vapour resistance
533 MN·s/g.
-
-
Reaction to fire
Euroclass B-s1,d0.
-
-
MoistureContent
<2%.
-
-
ThermalConductivity
PIR insulation: 0.022 W/m·K, plasterboard: 0.19 W/m·K.
-
-
Tensile strength - longitudinal
≥550 N.
-
-
Tensile strength - transverse
≥210 N.
-
-
Jointing/Finishing Options
The board should be jointed and finished with GTEC Jointing Systems.
-
-
Vapour control layer
All GTEC Thermal PIR boards are manufactured with enhanced vapour resistance.
-
-
Fixing
Dabs of GTEC Universal Bonding compound., GTEC Dryliner system., GTEC Shallow Wall Channels (MFCS)., GTEC Wall Lining Adhesive.
-
-
Material:
Gypsum.
-
-
