Summary

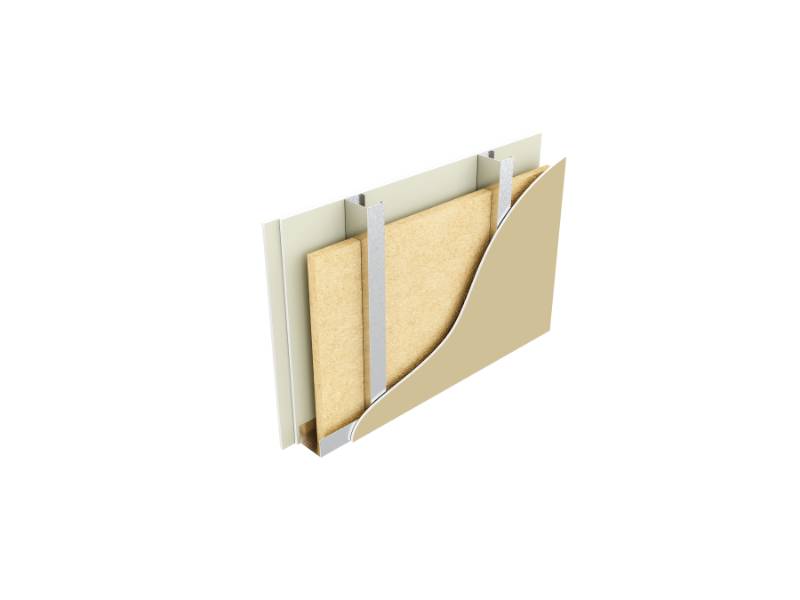

Metsec SFS infill wall with Y-Wall sheathing board and Knauf lining.
-
-
Application
SFS infill wall with plasterboard lining.
-
-
Description
Metsec SFS infill wall with Y-Wall sheathing board and Knauf lining.
Fire performance: Up to 120 minutes (non-boundary wall).
-
-
Product certifications
-
-
Finish
Galvanized
-
-
Material
Steel, Plasterboard
-
-
Shape
Other
-
-
Length
Bespoke
-
-
Width
Bespoke
-
-
Height
Bespoke
-
-
Warranty description
30 year
-
-
SKU Code
Y1-N90-K22, Y1-N100-K22, Y1-N120-K22, Y1-N150-K22, Y1-N180-K22, Y1-N210-K22, Y1-N240-K22, Y1-N270-K22, Y1-N300-K22, Y1-N350-K22
-
-
Specification
Classification data
System performance
Structural design supervision and checking.
Design of framing systems generally.
-
-
Framing members
Cold-formed galvanized steel sections.
-
-
Connections
-
-
-
Connection fasteners
Self drilling tek screws.
-
-
Anchors to concrete and masonry
-
-
-
Type of anchor
By structural engineer's design.
-
-
Movement joints
Deflection allowance at the top of the wall.
-
-
Additional properties
Insulation
Not required., Between framing.
-
-
Sheathing board
RCM Y-Wall - 12 mm.
-
-
Framing
Metsec SFS 100 mm stud depth.
-
-
Inner layer
Knauf Fire Board, 12.5 mm.
-
-
Face layer
Knauf Fire Board, 12.5 mm.
-
-
Fasteners
Drywall screws.
-
-
System accessories
Flatstrap / partition brace.
-
-
Internal face
90/ 120 minutes (insulation/ integrity).
-
-
External face
60/ 120 minutes (insulation/ integrity).
-
-
Fire performance
60 minutes (boundary wall); 120 minutes (non-boundary wall).
-
-
Thermal performance (U-value maximum)
Variable.
-
-
Air tightness
Variable.
-
-
Dimensional constraints
137 mm.
-
-
Sustainability data
Contains Red List materials
No
-
-
Country of product manufacture
United Kingdom
-
-
Recyclability
SFS Light Gauge Steel 95-100%
-
-
Recycled content
60 %
-
-
