Summary

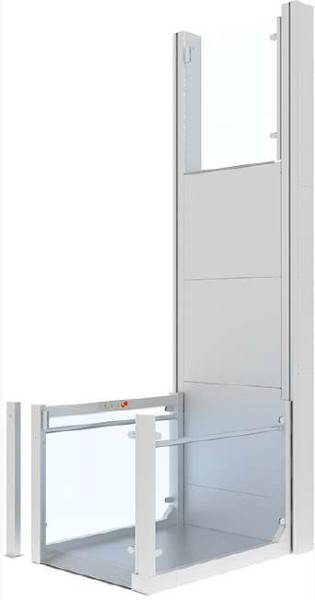

Simple, versatile and aesthetically pleasing low travel lift, suitable for easy internal access.
Simple, versatile and aesthetically pleasing low travel lift, suitable for easy internal access.
Simple, versatile and aesthetically pleasing low travel lift, suitable for easy internal access.
Color
Silver, Other
Silver, Other
Silver, Other
Shape
Rectangle
Rectangle
Rectangle
Specification
Standard
To EN 81-41; Harmonized standards: EN ISO 12100:2010; EN 60204-1:2006.
To EN 81-41; Harmonized standards: EN ISO 12100:2010; EN 60204-1:2006.
To EN 81-41; Harmonized standards: EN ISO 12100:2010; EN 60204-1:2006.
Rated load (minimum)
400 kg.
400 kg.
400 kg.
Drive type
Belt drive system.
Belt drive system.
Belt drive system.
Platform configuration
Through.
Through.
Through.
Enclosure
-
-
-
Frame material
Manufacturer's standard.
Manufacturer's standard.
Manufacturer's standard.
Frame finish
Powder coated., Stainless steel.
Powder coated., Stainless steel.
Powder coated., Stainless steel.
Frame colour
Manufacturer's standard., Custom RAL.
Manufacturer's standard., Custom RAL.
Manufacturer's standard., Custom RAL.
Infill material
As frame (solid panel)., Glazed.
As frame (solid panel)., Glazed.
As frame (solid panel)., Glazed.
Infill finish
As infill material.
As infill material.
As infill material.
Infill colour
As infill material.
As infill material.
As infill material.
Gate leaves
-
-
-
Operation
Manual., Powered.
Manual., Powered.
Manual., Powered.
Clear opening width (minimum)
Manufacturer's standard.
Manufacturer's standard.
Manufacturer's standard.
Frame material
Frameless.
Frameless.
Frameless.
Infill material
Glass.
Glass.
Glass.
Infill finish
Clear.
Clear.
Clear.
Infill colour
Clear.
Clear.
Clear.
Carrier floor
-
-
-
Dimensions
-
-
-
Width (minimum)
1000 mm.
900 mm.
1100 mm.
Depth (minimum)
1400 mm.
1400 mm.
1400 mm.
Material
Anti-slip rubber.
Anti-slip rubber.
Anti-slip rubber.
Colour
Manufacturer's standard.
Manufacturer's standard.
Manufacturer's standard.
Electrical supply
Single-phase, 220–240 V a.c., 16 A., Three-phase, 380–400 V a.c., 10 A, 50 Hz.
Single-phase, 220–240 V a.c., 16 A., Three-phase, 380–400 V a.c., 10 A, 50 Hz.
Single-phase, 220–240 V a.c., 16 A., Three-phase, 380–400 V a.c., 10 A, 50 Hz.
Control device type
Push button.
Push button.
Push button.
Control features
Manufacturer's standard, Single touch at landings.
Manufacturer's standard, Single touch at landings.
Manufacturer's standard, Single touch at landings.
Additional properties
Ramp
Required., Not required (75 mm pit).
Required., Not required (75 mm pit).
Required., Not required (75 mm pit).
Speed
0.15 m/s.
0.15 m/s.
0.15 m/s.
