Summary
Award winning combined kerb and drainage system.
-
-
Application
- Public landscaping.
- Car parking.
- HGV parking.
- Petrol station forecourts.
- Light industrial.
- Heavy industrial.
- Public highways.
- Distribution yards.
- Security areas.
-
-
Description

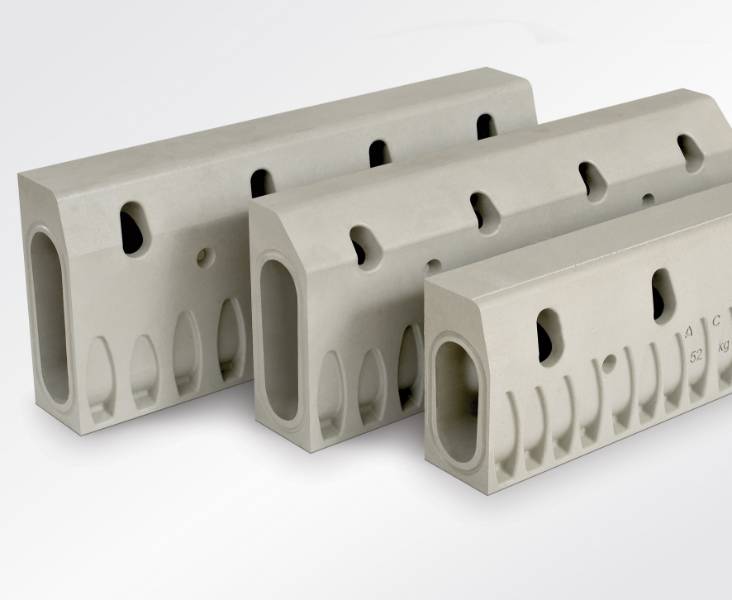

KerbDrain is an award winning combined kerb and drainage system specifically designed and developed to form an integral part of any modern, sustainable surface water management solution.
It is the first combined kerb drainage system of its kind to use recycled materials and be independently certified and Kitemarked to BS EN 1433: 2002. The one-piece system is suitable for a wide range of applications including major and minor highways, car parks, and commercial and urban landscaping.
ACO KerbDrain provides many versatile solutions for both SUDS schemes and traditional drainage systems. Engineers and designers can combine the benefits of both “hard” and “soft” SUDS to achieve the key elements of quality, quantity and amenity. The system also benefits from an extensive range of complementary and problem solving components including perforated and flush centre stones, drop kerbs, radius and mitred units, internal angles, quadrants, and bus stop units.
Since its launch in the late 1990’s, over 750,000m of ACO KerbDrain has been supplied to a wide variety of projects in both the UK and mainland Europe. In recognition of ACO KerbDrain’s ground breaking one-piece design, the system was awarded the Queen’s Award for Enterprise: Innovation in 2001.
ACO KerbDrain has a range of units to match HB1, HB2 and 45° splayed profiles, and a selection of depths and lengths to meet the hydraulic and performance requirements of many highway or drainage schemes.
ACO KerbDrain can also be adapted to suit specific projects, for example we can offer the product in a variety of colours or with a grit blasted texture to provide a more natural look.
ACO KerbDrain meets all specification requirements:
Fully compliant to the Specification for Highway Works
Kitemarked to BS EN 1433:2002. Certified by a notified body to BS EN 1433: 2002 Load Class D 400, CE marked by a notified body.
-
-
Product certifications
-
-
Material
Polymer concrete
-
-
Size
25000 x 480 mm, 25000 x 405 mm, 25000 x 305 mm, 10000 x 480 mm, 10000 x 405 mm, 10000 x 305 mm, 7000 x 480 mm, 7000 x 405 mm, 7000 x 305 mm, 6000 x 405 mm, 6000 x 305 mm, 1800 x 305 mm, 1500 x 405 mm, 1500 x 305 mm, 1000 x 480 mm, 1000 x 405 mm, 1000 x 380 mm, 1000 x 305 mm, 1000 x 280 mm, 1000 x 255 mm, 915 x 480 mm, 915 x 455 mm, 915 x 305 mm, 500 x 480 mm, 500 x 455 mm, 500 x 405 mm, 500 x 380 mm, 500 x 305 mm, 500 x 280 mm, 500 x 255 mm, 305 x 305 mm, 250 x 305 mm
-
-
SKU Code
7950, 7958, 7955, 7956, 7957, 4990, 7969, 7970, 7971, 4984, 7968, 7972, 7959, 7960, 7961, 7992, 4985, 7995, 7996, 7966, 4998, 4999, 7967, 4992, 4991, 4356, 4358, 4357, 4352, 4351, 4354, 4355, 4353, 4230, 4232, 4231, 4350, 4236, 4362, 4234, 4367, 4235, 4368, 4359, 4361, 4360, 4923, 4935, 4936, 4937, 4934, 4926, 4933, 4983, 4932, 4931, 4927, 4964, 4965, 4966, 7930, 7935, 7938, 7939, 4241, 4240, 4243, 4244, 4370, 4379, 4378, 4960
-
-
Specification
Classification data
Standards
To BS EN 1433:2002.
-
-
Third party certification
Certified by a notified body to BS EN 1433:2002, CE marked.
-
-
Material
Polymer concrete.
-
-
Load class (minimum)
D 400.
-
-
Accessories
7941 KerbDrain® SP280 Left Hand HB Transition Unit 500 mm D 400., 7965 KerbDrain® SP280/HB305 Centrestone 915 mm D 400., 4982 KerbDrain® SP280/HB305 Perforated Centrestone 915 mm D 400., 7949 KerbDrain® HB255 Access Unit 500mm D 400., 4941 KerbDrain® HB255 SP280 & HB305 Multifunctional end cap., 4928 KerbDrain® HB Gully Access Top Assembly D 400., 4929 KerbDrain® HB Gully Access Frame and Cover Only D 400.
-
-
Additional properties
Dimensions
1000 x 255 mm.
-
-
Sustainability data
Country of product manufacture
United Kingdom
-
-
