Summary
Single layer warm roof covering system.
Single layer warm roof covering system.
Single layer warm roof covering system.
Application
Suitable for all roofing applications.
Installation: Joints are formed either by hot-air welding, or by solvent welding followed by sealing.
Suitable for all roofing applications.
Installation: Joints are formed either by hot-air welding, or by solvent welding followed by sealing.
Suitable for all roofing applications.
Installation: Joints are formed either by hot-air welding, or by solvent welding followed by sealing.
Description

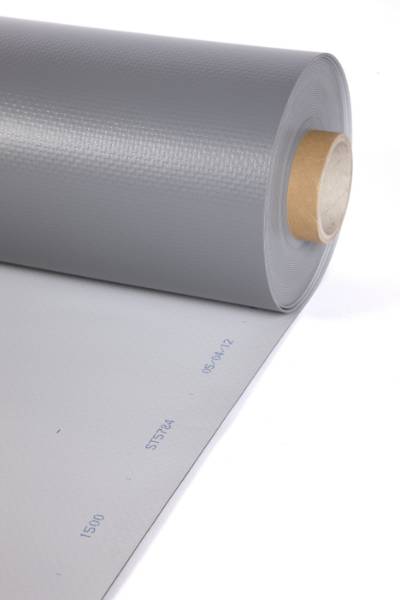

A range of membranes designed for use on mechanically restrained systems. They are UV and weather resistant with a high moisture vapour permeability, rot proof and root resistance.
Features and benefits:
- Mechanically fastened.
- CE marked.
- UV resistant.
- Weather resistant.
- Multiple colour options.
- Recyclable.
- ALKORPLAN F membranes have been assessed to have a service life in excess of 30 years.
A range of membranes designed for use on mechanically restrained systems. They are UV and weather resistant with a high moisture vapour permeability, rot proof and root resistance.
Features and benefits:
- Mechanically fastened.
- CE marked.
- UV resistant.
- Weather resistant.
- Multiple colour options.
- Recyclable.
- ALKORPLAN F membranes have been assessed to have a service life in excess of 30 years.
A range of membranes designed for use on mechanically restrained systems. They are UV and weather resistant with a high moisture vapour permeability, rot proof and root resistance.
Features and benefits:
- Mechanically fastened.
- CE marked.
- UV resistant.
- Weather resistant.
- Multiple colour options.
- Recyclable.
- ALKORPLAN F membranes have been assessed to have a service life in excess of 30 years.
Product certifications
Digital objects
Color
White, Grey, Green
White, Grey, Green
White, Grey, Green
Finish
Matt
Matt
Matt
Material
Polyvinyl chloride (PVC)
Polyvinyl chloride (PVC)
Polyvinyl chloride (PVC)
Shape
Rectangle
Rectangle
Rectangle
Length
15000 mm, 20000 mm, 25000 mm
15000 mm, 20000 mm, 25000 mm
15000 mm, 20000 mm, 25000 mm
Width
1050 mm, 1600 mm
1050 mm, 1600 mm
1050 mm, 1600 mm
WarrantyDescription
Ten year, 15 year, 20 year
Ten year, 15 year, 20 year
Ten year, 15 year, 20 year
SKU Code
35170, 35176
35170, 35176
35170, 35176
Specification
Material
Flexible PVC with laminated polyester reinforcing.
Non-reinforced membrane of flexible PVC.
Flexible PVC with laminated polyester reinforcing.
Integral backing fleece
No.
No.
No.
Standard
To BS EN 13956.
To BS EN 13956.
To BS EN 13956.
Performance characteristics
-
-
-
Watertightness
Pass.
Pass.
Pass.
Tensile properties
To EN 12311-2, ≥1100 N.
To EN 12311-2, ≥1100 N.
To EN 12311-2, ≥1050 N.
Tear resistance
To EN 12310-2, ≥225.
To EN 12310-2, ≥225.
To EN 12310-2, ≥200.
Third-party certification
British Board of Agrément (BBA) certificate.
British Board of Agrément (BBA) certificate.
British Board of Agrément (BBA) certificate.
Width (minimum)
1050 mm., 1600 mm.
1050 mm., 1600 mm.
1050 mm., 1600 mm.
Thickness (minimum)
1.5 m.
1.5 mm.
1.2 mm.
Colour
Light grey., Mid grey., Dark grey., Copper green., Terracotta., Lead grey., Special order.
Light grey., Mid grey., Dark grey., Copper green., Terracotta., Lead grey., Special order.
Light grey., Mid grey., Dark grey., Copper green., Terracotta., Lead grey., Special order.
Accessories
None., ALKORPLAN® 35X71 unreinforced detailing membrane., ALKORPLAN® 81038 seam sealer., ALKORPLAN® 81080/ 81061/ 81062 corners., ALKORPLAN® 81088 outlets., ALKORPLAN® 81170/ 81171 Metalsheet., ALKORPLAN® 81025 solvent welding fluid.
None., ALKORPLAN® 35X71 unreinforced detailing membrane., ALKORPLAN® 81038 seam sealer., ALKORPLAN® 81080/ 81061/ 81062 corners., ALKORPLAN® 81088 outlets., ALKORPLAN® 81170/ 81171 Metalsheet., ALKORPLAN® 81025 solvent welding fluid.
None., ALKORPLAN® 35X71 unreinforced detailing membrane., ALKORPLAN® 81038 seam sealer., ALKORPLAN® 81080/ 81061/ 81062 corners., ALKORPLAN® 81088 outlets., ALKORPLAN® 81170/ 81171 Metalsheet., ALKORPLAN® 81025 solvent welding fluid.
Additional properties
Standard
Conforms to UEAtc guidelines.
Conforms to UEAtc guidelines.
Conforms to UEAtc guidelines.
Performance characteristics
To DIN 16734.
To DIN 16730.
To DIN 16734.
Weight
1.85 kg/m².
1.95 kg/m².
1.53 kg/m².
Elongation
≥16%.
≥16%.
≥15%.
Dimensional stability
≤0.3%.
≤0.3%.
≤0.3%.
Water vapour diffusion resistance
To EN 1931, 20,000 μ.
To EN 1931, 20,000 μ.
To EN 1931, 20,000 μ.
Sustainability data
Country of material origin
Spain
Spain
Spain
Recyclability
100%
100%
100%
