Ariane - Clay Facing Brick
Verified over a year ago
Vandersanden Brick
NF
nbs-symbol
Add to spec
Ariane - Clay Facing Brick
Verified over a year ago
Vandersanden Brick
DF
nbs-symbol
Add to spec
Summary

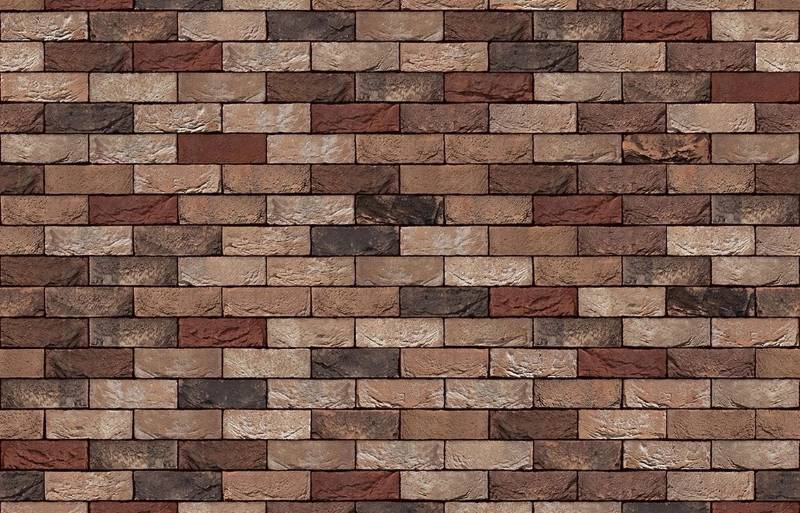

A facing brick with pink, red, beige, brown and black shades, and a sanded-coated and grained structure.
A facing brick with pink, red, beige, brown and black shades, and a sanded-coated and grained structure.
Third party certification
QA Certificate
Certificate of conformity of the factory production control 0620-CPR-97880/02
QA Certificate
Certificate of conformity of the factory production control 0620-CPR-97880/02
Color
Red
Red
Material
Clay
Clay
Shape
Rectangle
Rectangle
Size
240 x 115 x 71 mm, 215 x 102 x 65 mm
240 x 115 x 71 mm, 215 x 102 x 65 mm
Specification
Standard
To BS EN 771-1.
To BS EN 771-1.
Brick description
Facing brick.
Facing brick.
Appearance
Pink, red, beige, brown and black shades, and a sanded-coated and grained structure.
Pink, red, beige, brown and black shades, and a sanded-coated and grained structure.
Work size (length x width x height)
239 x 114 x 70 mm.
215 x 103 x 66 mm.
Tolerances
-
-
Mean value
T2.
T2.
Range
R1.
R1.
Compressive strength
-
-
Mean compressive strength (minimum)
≥10 N/mm².
≥10 N/mm².
Durability designation
F2 S2.
F2 S2.
Density
-
-
Gross dry
1530 kg/m³.
1530 kg/m³.
Net dry
1650 kg/m³.
1650 kg/m³.
Tolerance
D1.
D1.
Water absorption
≤18% m/md.
≤18% m/md.
Configuration
Frogged.
Frogged.
Thermal conductivity
≤0.43 W/m·K.
≤0.43 W/m·K.
Water vapour permeability
5/10 µ.
5/10 µ.
Bond strength
0.15 N/mm² (general); 0.30 N/mm² (thin layer).
0.15 N/mm² (general); 0.30 N/mm² (thin layer).
Reaction to fire
Class A1 to BS EN 13501-1.
Class A1 to BS EN 13501-1.
Additional properties
Jointing
Dark grey., White., Joint free., Grey., Beige.
Dark grey., White., Joint free., Grey., Beige.
Dangerous substances
NL-BSB.
NL-BSB.
Unit weight
2.87 kg.
2.0 kg.
Sustainability data
Country of product manufacture
Netherlands
Netherlands
