Summary
Robust roller blind system.
Robust roller blind system.
Robust roller blind system.
Application
Internal window applications. Widely used on projects in the commercial, hospitality and education sectors.
Internal window applications. Widely used on projects in the commercial, hospitality and education sectors.
Internal window applications. Widely used on projects in the commercial, hospitality and education sectors.
Description
Robust roller blind system available in chain operated, motorised, and geared crank operated versions.
Features and benefits:
- Wide choice of ShadeTech® fabrics available.
- Exceptionally quiet and smooth operation
- 50mm x 65mm powdercoated steel brackets, white as standard
- 45mm diameter heavy duty aluminium tube
- Minimal light gap between brackets and fabric
- Blinds can be linked enabling more than one blind to be operated from a single chain
- Dual brackets available to allow two blinds to be mounted in the same opening
- Square 90mm cassette or fascia can be added to conceal blind
- Guide wire option available to reduce fabric movement and improve alignment when blind is operated

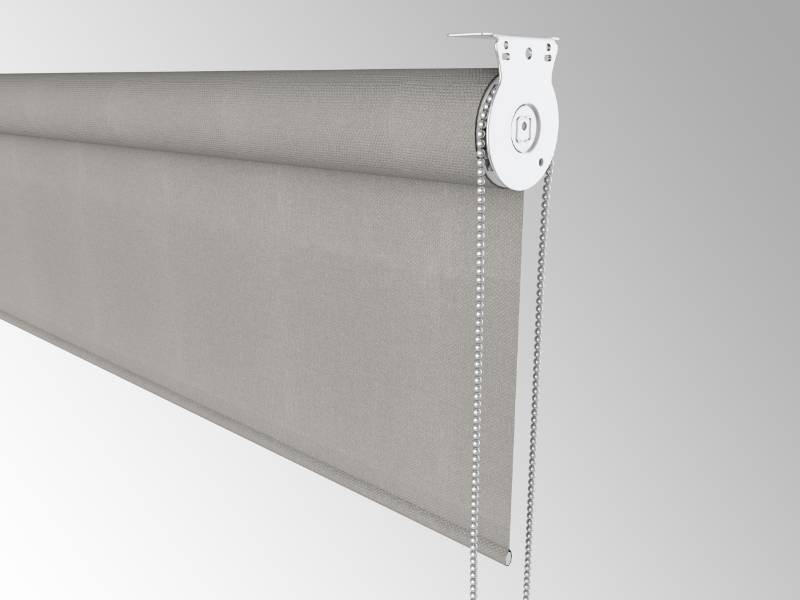

RBL-C Robust Chain Operated Roller Blind System:
- Quiet and smooth operation.
- Stainless steel chain control
- Minimal light gap is the same at both sides of the fabric.
- Booster springs can be added to give feather-touch operation.

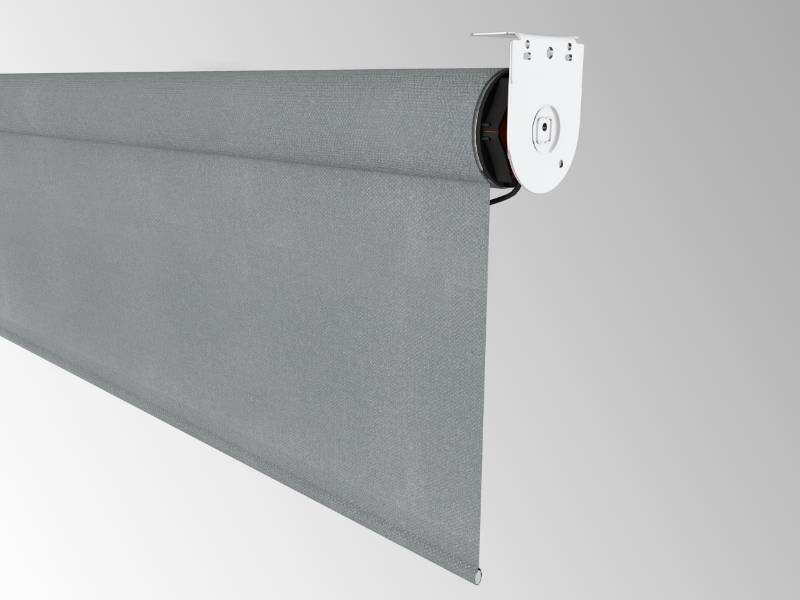

RBL-E Robust Motorized Roller Blind System:
230 V motor with range of control options:
- Hardwired switch.
- Radio Remote Control via handheld remote or wall switch.
- ShadeMatic S3 for full integration with building management systems.
- Motor specifications and wiring diagrams available upon request.
- Safe by design – meets BS EN 13120 child safety requirements.
- 230 V tubular motor with five year guarantee.
- Blinds can be grouped together for simultaneous operation and integrated with building management systems (BMS).

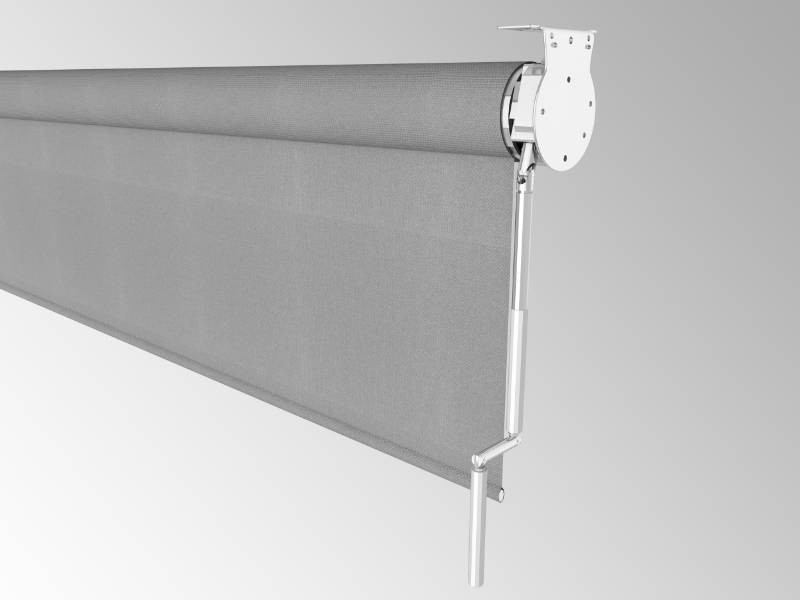

RBL-G Robust Geared Crank Operated Roller Blind System:
- Choice of fixed or detachable crank handle.
- Safe by design – meets BS EN 13120 child safety requirements.
Robust roller blind system available in chain operated, motorised, and geared crank operated versions.
Features and benefits:
- Wide choice of ShadeTech® fabrics available.
- Exceptionally quiet and smooth operation
- 50mm x 65mm powdercoated steel brackets, white as standard
- 45mm diameter heavy duty aluminium tube
- Minimal light gap between brackets and fabric
- Blinds can be linked enabling more than one blind to be operated from a single chain
- Dual brackets available to allow two blinds to be mounted in the same opening
- Square 90mm cassette or fascia can be added to conceal blind
- Guide wire option available to reduce fabric movement and improve alignment when blind is operated
RBL-C Robust Chain Operated Roller Blind System:
- Quiet and smooth operation.
- Stainless steel chain control
- Minimal light gap is the same at both sides of the fabric.
- Booster springs can be added to give feather-touch operation.
RBL-E Robust Motorized Roller Blind System:
230 V motor with range of control options:
- Hardwired switch.
- Radio Remote Control via handheld remote or wall switch.
- ShadeMatic S3 for full integration with building management systems.
- Motor specifications and wiring diagrams available upon request.
- Safe by design – meets BS EN 13120 child safety requirements.
- 230 V tubular motor with five year guarantee.
- Blinds can be grouped together for simultaneous operation and integrated with building management systems (BMS).
RBL-G Robust Geared Crank Operated Roller Blind System:
- Choice of fixed or detachable crank handle.
- Safe by design – meets BS EN 13120 child safety requirements.
Robust roller blind system available in chain operated, motorised, and geared crank operated versions.
Features and benefits:
- Wide choice of ShadeTech® fabrics available.
- Exceptionally quiet and smooth operation
- 50mm x 65mm powdercoated steel brackets, white as standard
- 45mm diameter heavy duty aluminium tube
- Minimal light gap between brackets and fabric
- Blinds can be linked enabling more than one blind to be operated from a single chain
- Dual brackets available to allow two blinds to be mounted in the same opening
- Square 90mm cassette or fascia can be added to conceal blind
- Guide wire option available to reduce fabric movement and improve alignment when blind is operated
RBL-C Robust Chain Operated Roller Blind System:
- Quiet and smooth operation.
- Stainless steel chain control
- Minimal light gap is the same at both sides of the fabric.
- Booster springs can be added to give feather-touch operation.
RBL-E Robust Motorized Roller Blind System:
230 V motor with range of control options:
- Hardwired switch.
- Radio Remote Control via handheld remote or wall switch.
- ShadeMatic S3 for full integration with building management systems.
- Motor specifications and wiring diagrams available upon request.
- Safe by design – meets BS EN 13120 child safety requirements.
- 230 V tubular motor with five year guarantee.
- Blinds can be grouped together for simultaneous operation and integrated with building management systems (BMS).
RBL-G Robust Geared Crank Operated Roller Blind System:
- Choice of fixed or detachable crank handle.
- Safe by design – meets BS EN 13120 child safety requirements.
Digital objects
Color
White, Grey, Other
White, Grey, Other
White, Grey, Other
Finish
Powder-coated
Powder-coated
Powder-coated
Material
Aluminium, Fabric
Aluminium, Fabric
Aluminium, Fabric
Shape
Rectangle, Other
Rectangle, Other
Rectangle, Other
Length
Bespoke
Bespoke
Bespoke
Width
3200 mm
3200 mm
3200 mm
Height
3600 mm
3600 mm
3600 mm
Warranty description
Two year
Two year
Two year
SKU Code
RBL-C
RBL-E
RBL-G
Specification
Classification data
Position
Internal to glazing.
Internal to glazing.
Internal to glazing.
Headrail
-
-
-
Material
Extruded aluminium (square).
Extruded aluminium (square).
Extruded aluminium (square).
Blinds
-
-
-
Material
Fabric.
Fabric.
Fabric.
Tube
-
-
-
Material
Extruded aluminium.
Extruded aluminium.
Extruded aluminium.
Diameter
45 mm.
45 mm.
45 mm.
Tube covers
-
-
-
Material
Powder coated extruded aluminium.
Powder coated extruded aluminium.
Powder coated extruded aluminium.
Colour
White., Grey.
White., Grey.
White., Grey.
Operation
Manual, plastic ball chain., Manual, stainless steel ball chain.
-
-
Accessories
Not required., Mounting rail., Ceiling pocket., Brackets for linked blinds., Fascia (square)., Booster springs., Side guide wires.
-
-
Standards
-
To BS EN 13120.
-
Operation
-
230 V motorized (standard - hard wired)., 230 V motorized (radio)., 230 V SMI (ShadeMatic S3 automation control).
-
Accessories
-
Not required., Mounting rail., Ceiling pocket., Brackets for linked blinds., Fascia (square)., Side guide wires.
-
Standards
-
-
To BS EN 13120.
Operation
-
-
Manual, crank (fixed)., Manual, crank (detachable).
Accessories
-
-
Not required., Mounting rail., Ceiling pocket., Brackets for linked blinds., Fascia (square)., Side guide wires.
Additional properties
Brackets
Top fix., Face fix., Recess fix.
Top fix., Face fix., Recess fix.
Top fix., Face fix., Recess fix.
Bottom bar
Round., Teardrop., Fabric enclosed.
Round., Teardrop., Fabric enclosed.
Round., Teardrop., Fabric enclosed.
Sustainability data
Contains Red List materials
No
No
No
Country of material origin
Europe
Europe
Europe
Country of product manufacture
United Kingdom
United Kingdom
United Kingdom
Manufacturing plant location
Luton, UK
Luton, UK
Luton, UK
Material
Aluminium, Fabric
Aluminium, Fabric
Aluminium, Fabric
Recycled content
25 %
25 %
25 %
Expected Life
15 year
15 year
15 year
