SubFloor Acoustic Raised Floor, Renovating 12 Apartments in Nottingham

OVERVIEW

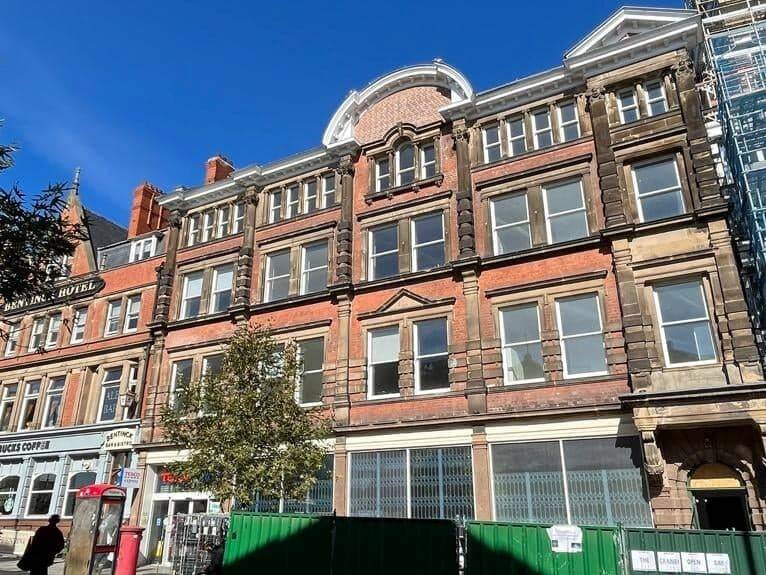

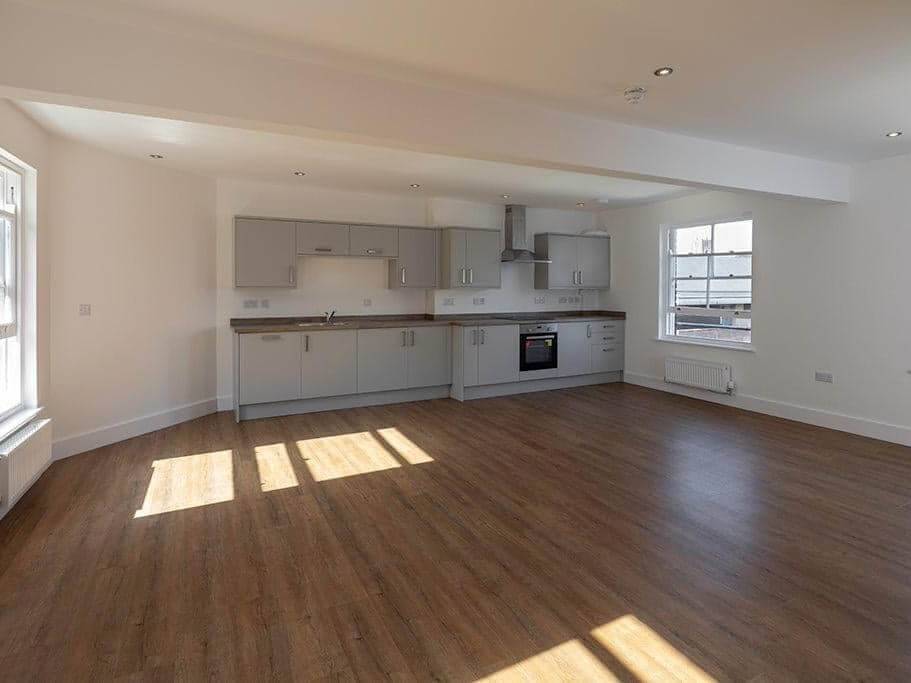

SubFloor acoustic flooring was used to renovate, raise and acoustically dampen a 828 m² floor into 12 luxury apartments near Nottingham city centre.

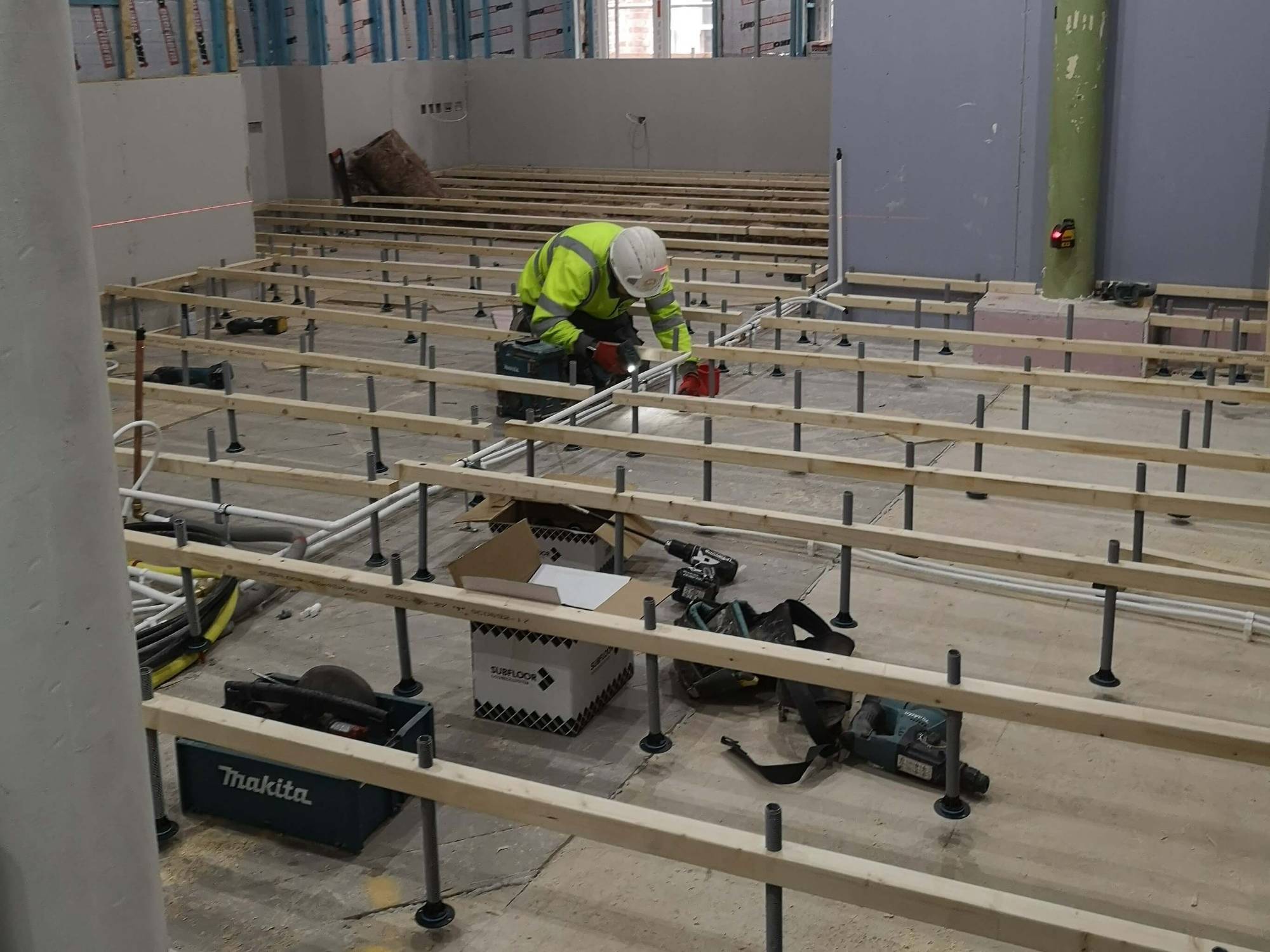

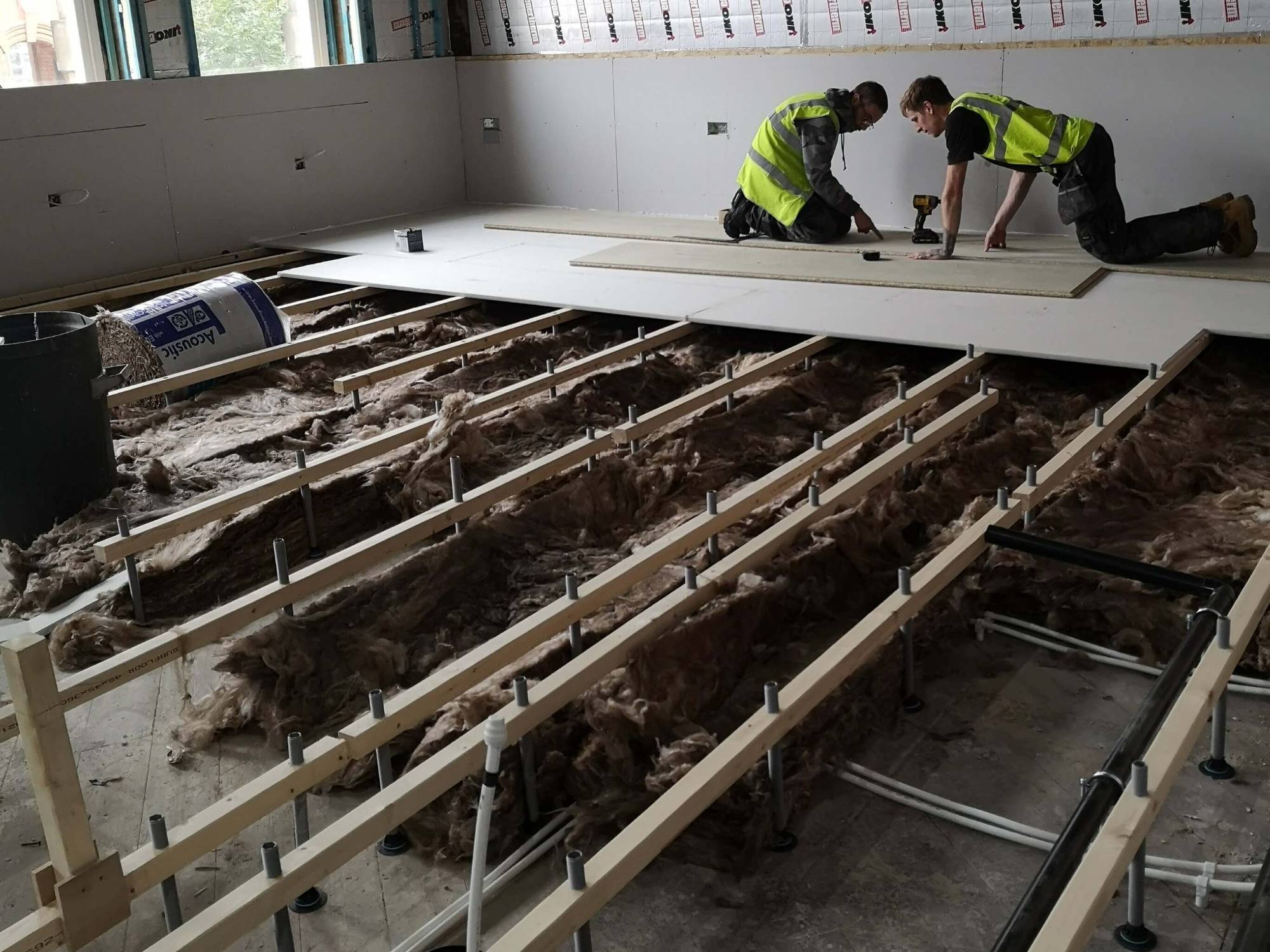

This simple and elegant solution raised an uneven floor up to 300 mm to allow for installations and insulation. The joist and screw system allows for quick and easy assembly so that the floor can reach the desired height. Acoustic feet were mounted onto the SubFloor screws for acoustic damping between apartments.


Products:

Wooden Joist 45x45x3600 mm

SubFloor Screw 300 mm

Screw Foot Acoustic


Height Variation: 73 - 323 mm

System Weight - c/c 600 mm: 2.86 kg/m²


Materials:

Pine T0-C24

Fibre-reinforced Vitamide

Polyamide


Point Load 50 x 50 mm: 5.3 kN

12.84 kN/m² - Between screws

12.73 kN/m² - Next to screw over joist

[According to SS-EN 1195:1998]


Acoustic Damping: Up to 28 dB

[rating according to ISO 717-2]
