Office Space, Tall Raised Floor - Stockholm, SE

OVERVIEW

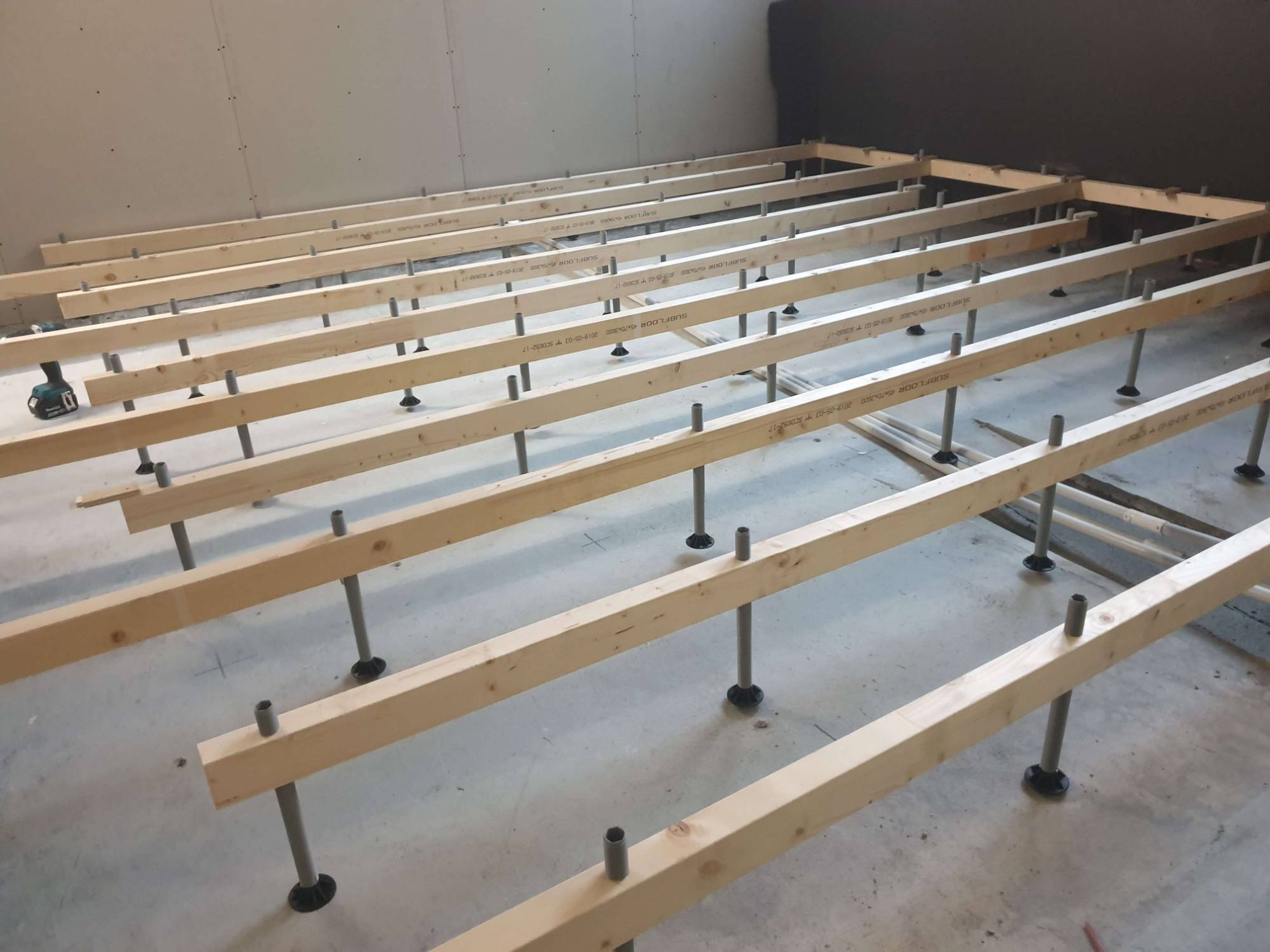

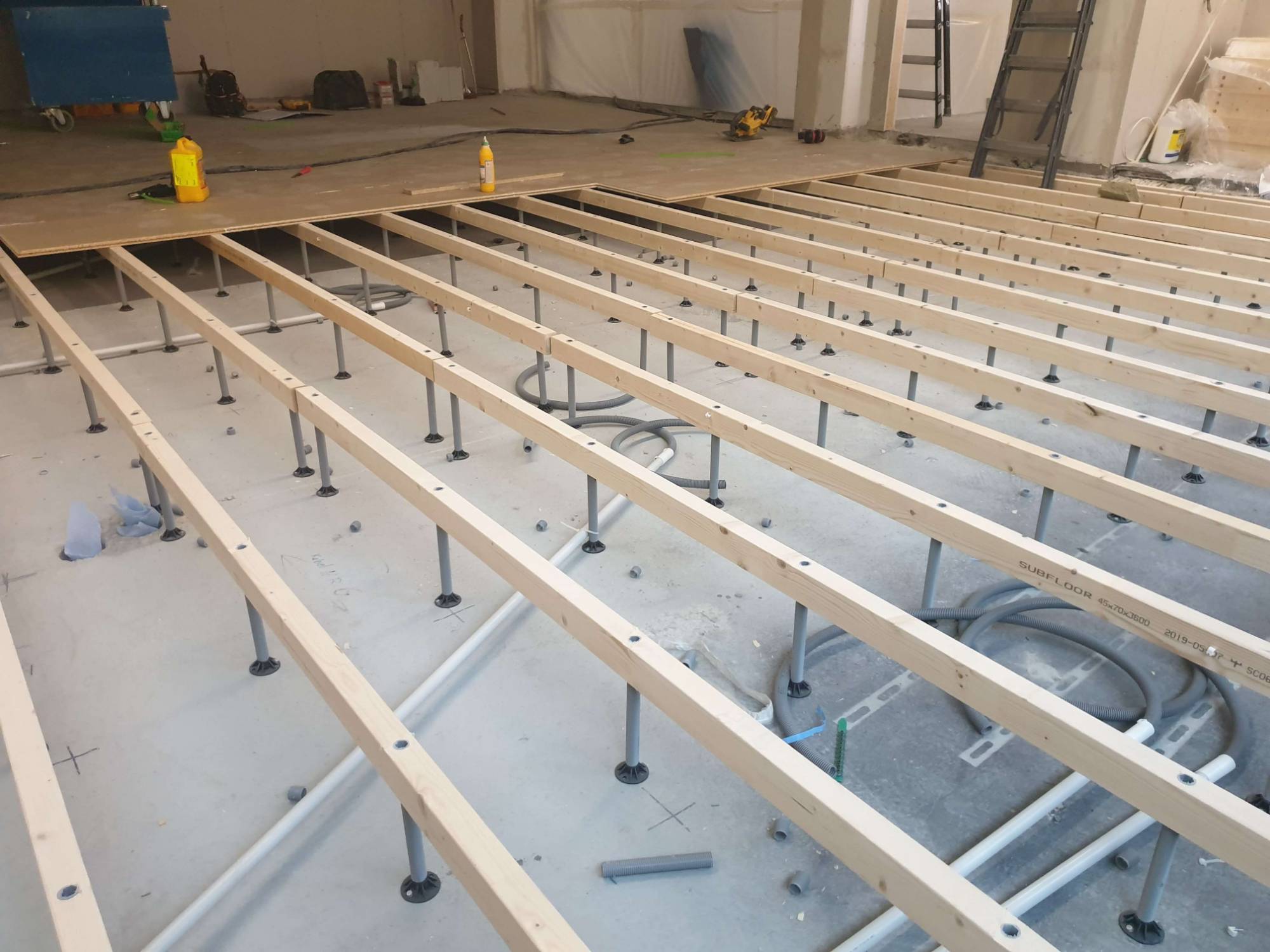

SubFloor flooring was used to help renovate and raise a 250 m² floor into an office with a large void in Stockholm, Sweden.


This simple and elegant solution raised and levelled the floor to allow for installations and insulation. The joist and screw system allows for quick and easy assembly so that the floor can reach the desired height.


Products:

Wooden Joist 45x45x3600 mm

SubFloor Screw 300 mm

SubFloor Screw Foot


Height Variation: 65 - 314 mm

Joist separation: c/c 300 mm

System Weight - c/c 300 mm: 3.99 kg/m²


Materials:

Pine T0-C24

Fibre-reinforced polypropylene

Polyamide


Point Load Limit (50 x 50 mm):

Load next to screw over joist edge - 9.72 kN

Load between screws over joist edge - 15.85 kN
