Gaming Centre, Commercial Raised Floor - Skövde, SE

OVERVIEW

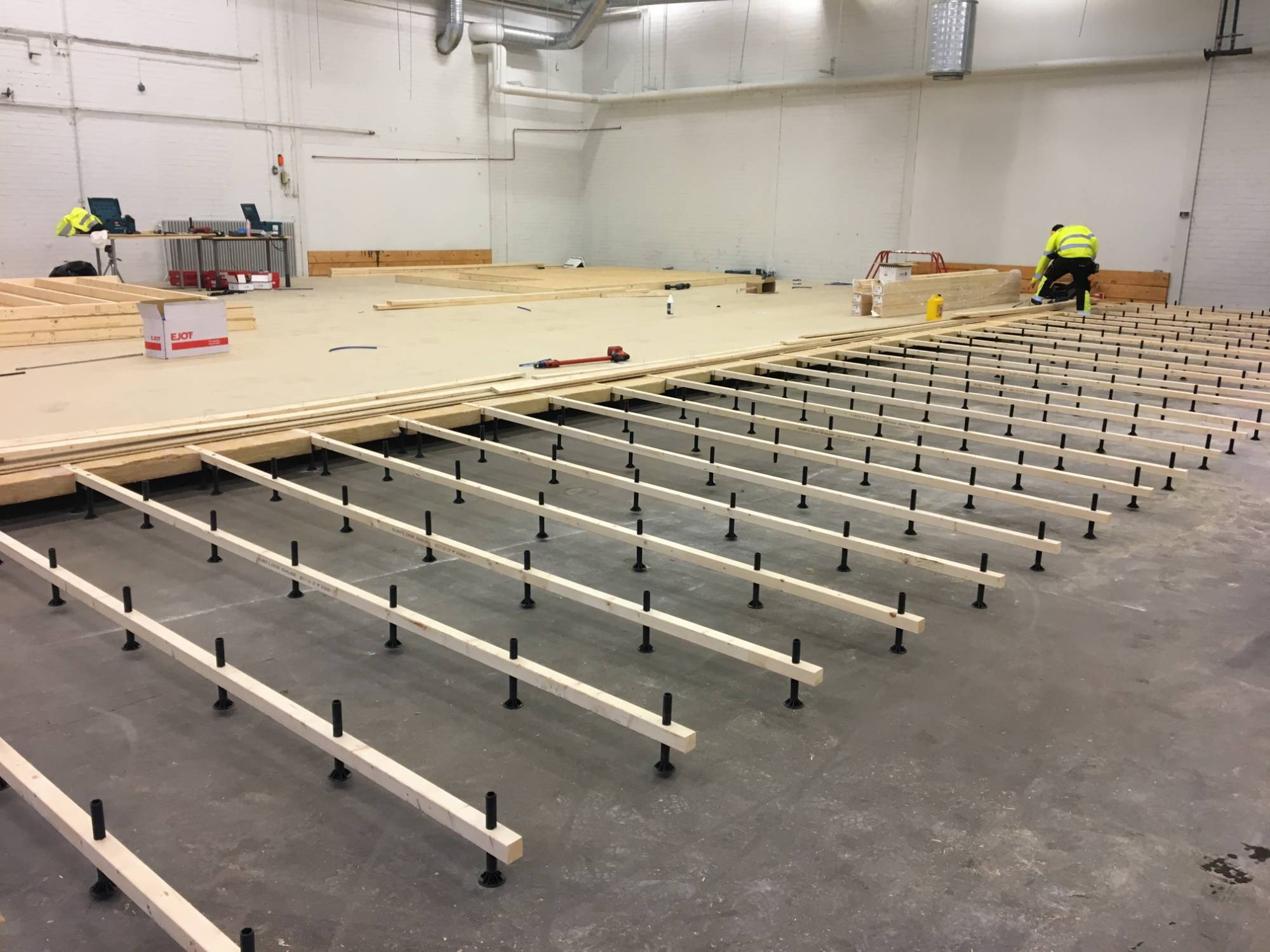

SubFloor flooring was used in a conversion of an industrial premise for youth gaming activities. This allowed insulation to separate the cold floor from the main area and for wiring installations under the floor.


This simple and elegant solution raised and levelled the floor to allow for installations and insulation. The joist and screw system allows for quick and easy assembly so that the floor can reach the desired height.


95 mm Rigid insulation was positioned on the insulation bearers and a 22 mm chipboard was placed on top.


Products:

Wooden Joist 45x45x3600 mm

SubFloor Screw 200 mm

SubFloor Screw Foot

Insulation Bearer 95 mm


Height Variation: 105 - 236 mm

Joist separation: c/c 600 mm

System Weight - c/c 600 mm: 2.82 kg/m²


Materials:

Pine T0-C24

Fibre-reinforced polypropylene

Polyamide

Cold Galvanised Sheet Steel


Point Load Limit (50 x 50 mm):

Load next to screw over joist edge - 9.72 kN

Load between screws over joist edge - 15.85 kN
