Eco Premium F Render Insulation - Nottingham Project

by Building Insulation Solutions (BIS)

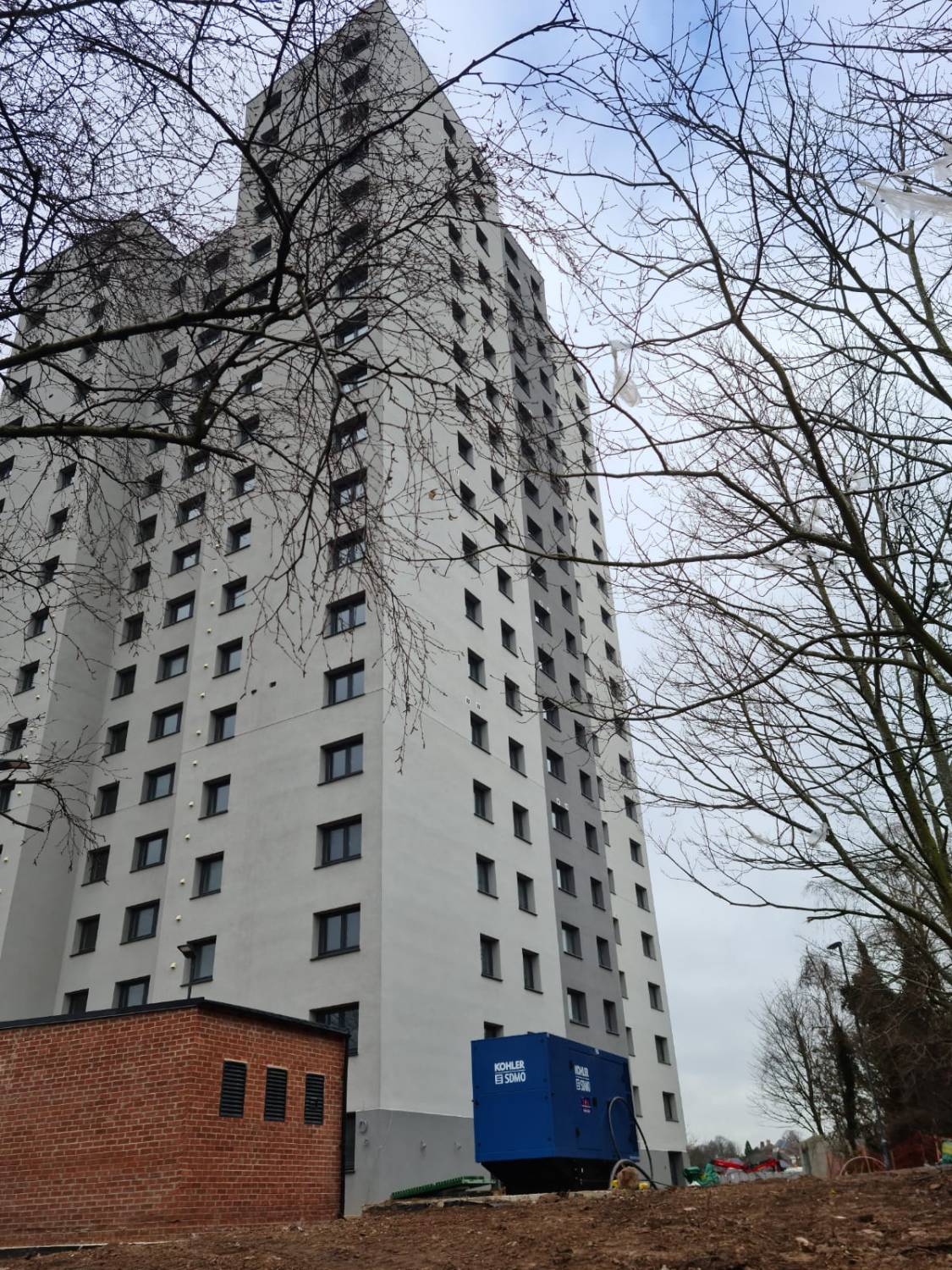

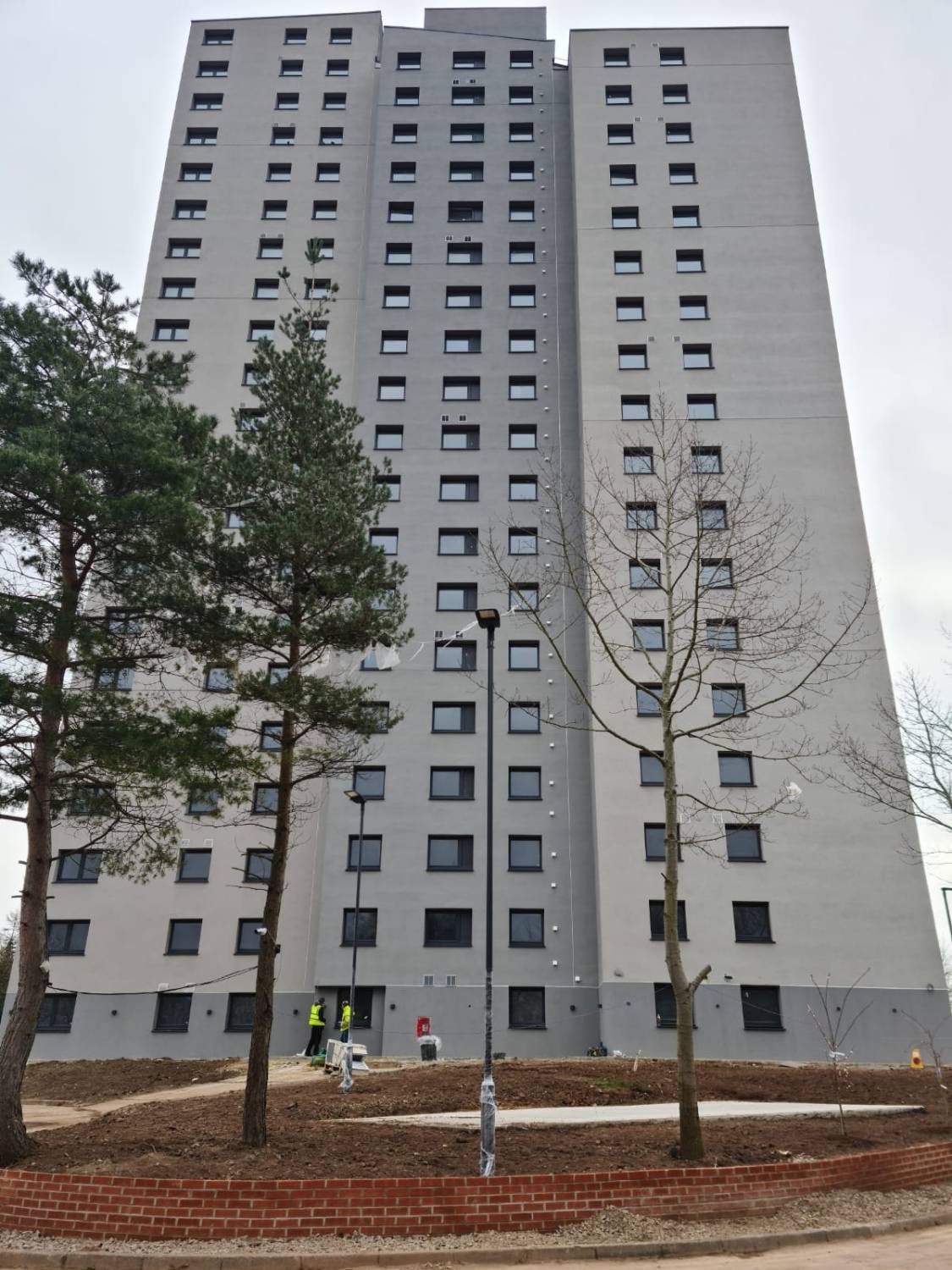

Burrow Court is an occupied residential block comprising 22 -storeys at its highest point that was previous clad in combustible ACM cladding. The replacement specification was High Density Mineral wool Insulation for Rendering System (ETHIC) fixed by Long Insulations Screws, with plastic and Stainless steel washers Wimpy Concrete New Fine Substrate.

Pull Out Test carried out to ensure sustainable installation for the Tall Buildings wind effect.

Render

  • 1st Layer of High quality specially ordered Base coat with mesh installations in the base coat.
  • The mesh specially design as Hight Strength Grade A Fibre glass ,Flame retardant.
  • 2nd Layer of High quality base coat to reach approximately 6- 8mm Thickness.
  • Primer Silicone Coat.
  • 1.5mm Thin top Silicone coat.
  • All required mesh Corner beads around the windows.
  • Building corners and movement Beads have been used.

Pre painted Alum Coping 2mm Thickness fixed with rivet and caps, fixing straps prior to coping every 400mm.

Silicone Mastics on all joints.

Pre Painted window sills provided for all windows .

Products featured in this case study

View all products (10)
High Density Render Insulation Eco Premium F

High Density Render Insulation Eco Premium F
