Chirag Oil Field

OVERVIEW

Contacted by Tefken Construction, we designed, fabricated and supplied modular flat packs of both steel and GRP gratings, heavy duty barrier rails, gates, ladders, treads and handrails to the 'Chirag Oil Field'.


Our designers ensured that all material and placements could withstand the given environment. Using both steel and GRP allowed for cost efficiencies for the client, while maintaining a great strength for their platforms and rails.


Our modular flat packs allow the client to install their flooring and other items easily.

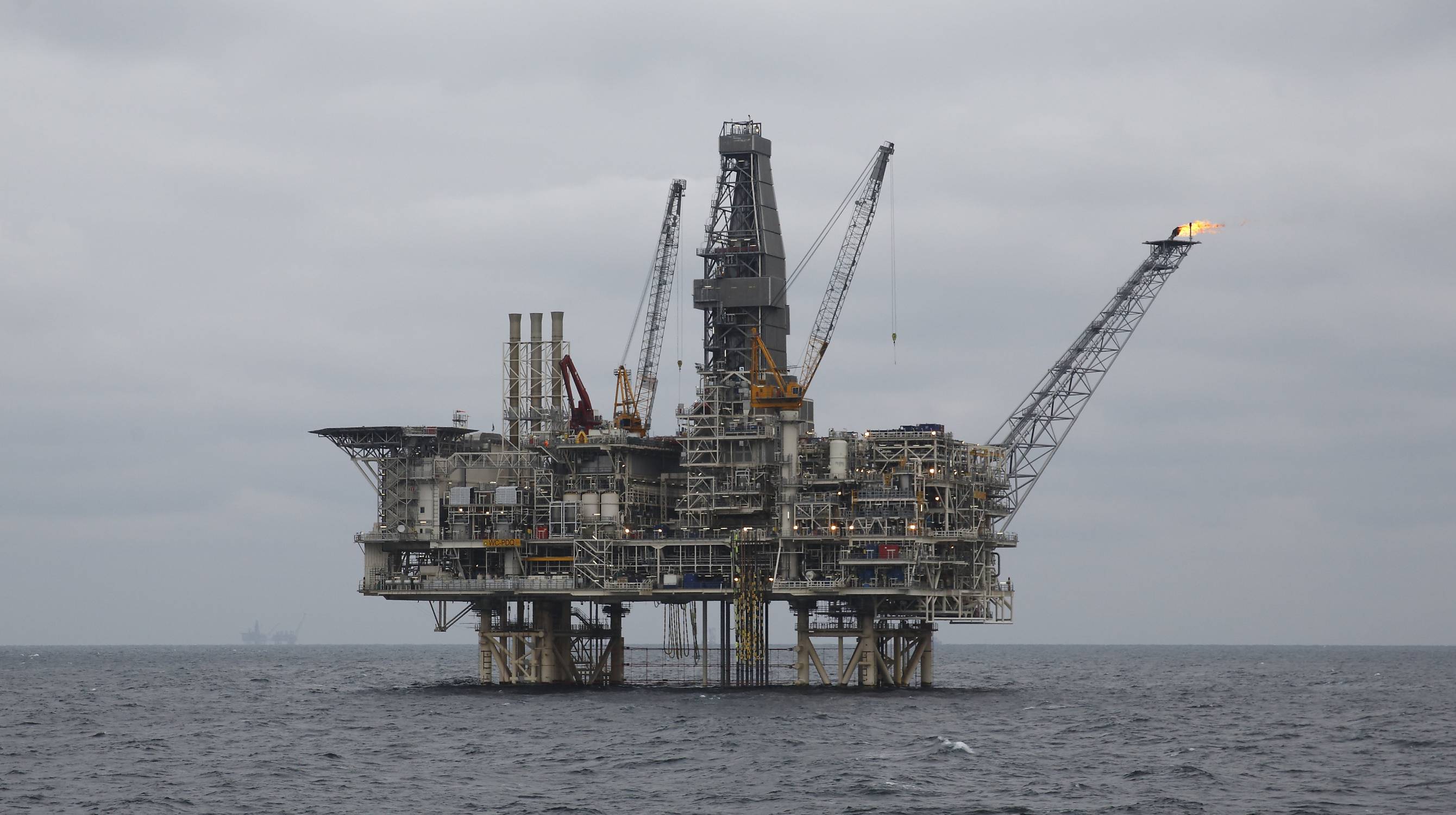

Chirag is an offshore production, drilling and quarters (PDQ) platform located 120km east of Baku in the Caspian Sea, at a water depth of 120 meters.


First oil from the platform was achieved on 28 January 2014.


Total Chirag production was on average 53,000 barrels per day.
