Standard Deluxe Door Frames

Verified by manufacturer over a year ago

Metroll

Door frames with stocked back openings. Only available in WA.

Jump to:
+61 8 9365 5444 Website

Application

Suitable for residential uses.

Description

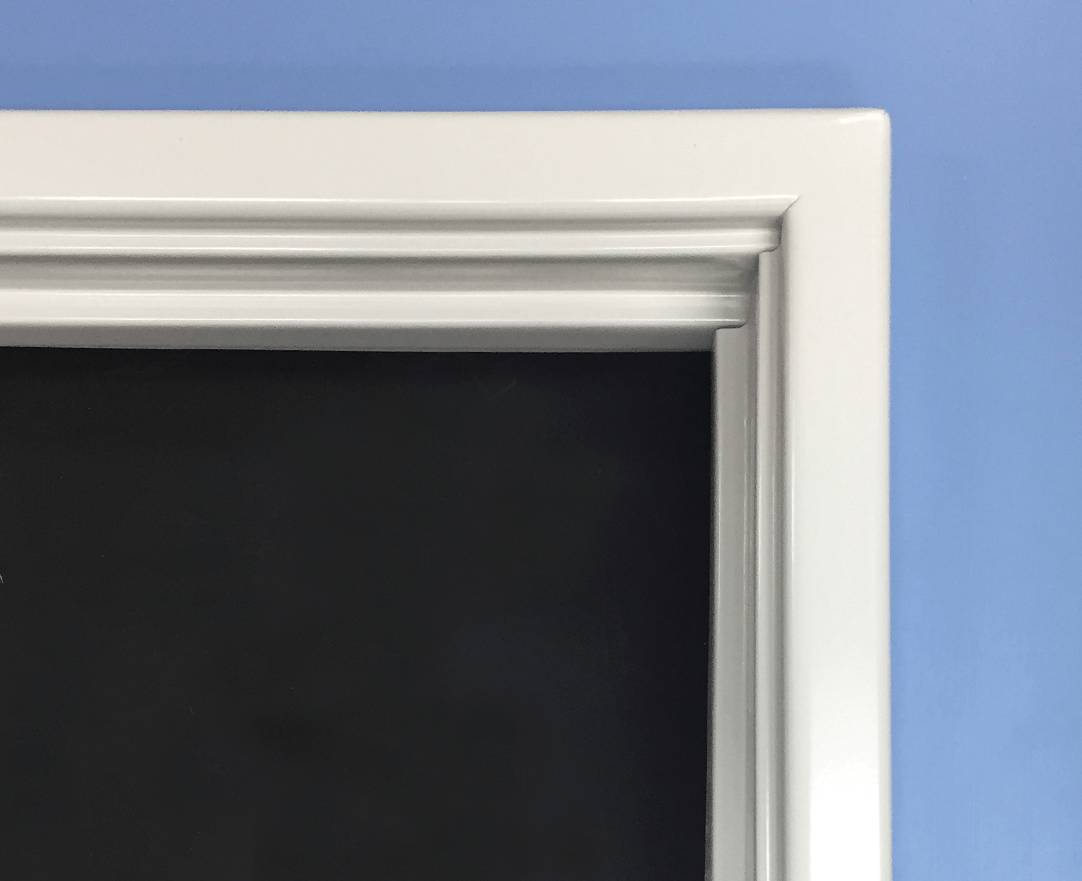

Standard Deluxe Door Frames are door frames available in stocked back openings of 95 mm and 114 mm. Some features of these frames include:

  • Precision mitres.
  • Unobtrusive hinges.
  • Built-in architraves.
  • Shock absorbing rubber buffers.
  • Temporary bottom rail.
  • Available in other sizes (with lead time).
  • Available in multi-door combinations.

General information

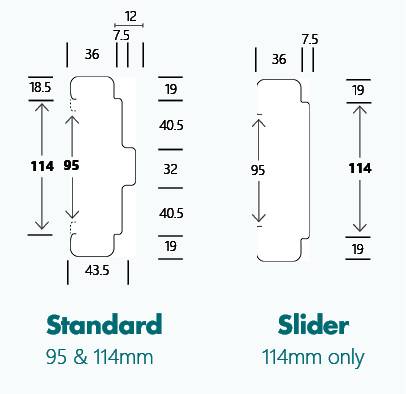

Shape

Standard profile.

Guidance for specification option:

Available in 95 mm and 114 mm back opening. Door stop width is 32 mm.

Slider profile.

Guidance for specification option:

Available in 95 mm back opening only.

Material

Steel.

Uniclass

Pr_30_59_23_11 Carbon steel door framesPrimary

SpecPack

08200 Doors, Door Frames and Hatches

NATSPEC National Classification System

0453 Doors and Access Panels

SpeedSpec

08200 Doors and Door Frames

Specification data - Carbon steel door frames

Configuration

Single (2 Hinge).

Single (3 Hinge).

Single (3 Hinge and deadlock).

Double.

WC.

Single Slider.

Double Slider.

Manufacturer guidance

Slider profiles are available in stocked 95 mm back opening only.

Dimensions

-

Width and height

410 mm (W) x 2040 mm (H) with 95 mm back opening.

Guidance for specification option:

Available in Single (2 Hinge) configuration only.

520 mm (W) x 2040 mm (H) with 95 mm back opening.

Guidance for specification option:

Available in Single (2 Hinge) configuration only.

620 mm (W) x 2040 mm (H) with 95 mm back opening.

Guidance for specification option:

Available in the following configurations:

  • Single (2 Hinge).
  • WC.
  • Single Slider.

720 mm (W) x 2040 mm (H) with 95 mm back opening.

Guidance for specification option:

Available in the following configurations:

  • Single (2 Hinge).
  • WC.
  • Single Slider.

770 mm (W) x 2040 mm (H) with 95 mm back opening.

Guidance for specification option:

Available in Single Slider configuration only.

820 mm (W) x 2040 mm (H) with 95 mm back opening.

Guidance for specification option:

Available in the following configurations:

  • Single (2 Hinge).
  • Single (3 Hinge).
  • Single (3 Hinge and deadlock).
  • WC.
  • Single Slider.

870 mm (W) x 2040 mm (H) with 95 mm back opening.

Guidance for specification option:

Available in Single (2 Hinge) configuration only.

920 mm (W) x 2040 mm (H) with 95 mm back opening.

Guidance for specification option:

Available in the following configurations:

  • Single (3 Hinge).
  • WC.
  • Single Slider.

520 mm (W) x 2040 mm (H) with 114 mm back opening.

Guidance for specification option:

Available in Single (2 Hinge) configuration only.

620 mm (W) x 2040 mm (H) with 114 mm back opening.

Guidance for specification option:

Available in the following configurations:

  • Single (2 Hinge).
  • WC.

720 mm (W) x 2040 mm (H) with 114 mm back opening.

Guidance for specification option:

Available in the following configurations:

  • Single (2 Hinge).
  • WC.

820 mm (W) x 2040 mm (H) with 114 mm back opening.

Guidance for specification option:

Available in the following configurations:

  • Single (2 Hinge).
  • Single (3 Hinge).
  • Single (3 Hinge and deadlock).
  • WC.

870 mm (W) x 2040 mm (H) with 114 mm back opening.

Guidance for specification option:

Available in the following configurations:

  • Single (2 Hinge).
  • Single (3 Hinge).

920 mm (W) x 2040 mm (H) with 114 mm back opening.

Guidance for specification option:

Available in Single (3 Hinge) configuration only.

2 x 410 mm (W) x 2040 mm (H) with 95 mm back opening.

Guidance for specification option:

For Double configuration only.

2 x 520 mm (W) x 2040 mm (H) with 95 mm back opening.

Guidance for specification option:

For Double configuration only.

2 x 620 mm (W) x 2040 mm (H) with 95 mm back opening.

Guidance for specification option:

For Double configuration only.

2 x 720 mm (W) x 2040 mm (H) with 95 mm back opening.

Guidance for specification option:

For Double configuration only.

2 x 820 mm (W) x 2040 mm (H) with 95 mm back opening.

Guidance for specification option:

For Double configuration only.

2 x 545 mm (W) x 2040 mm (H) with 95 mm back opening.

Guidance for specification option:

For Double Slider configuration only.

2 x 645 mm (W) x 2040 mm (H) with 95 mm back opening.

Guidance for specification option:

For Double Slider configuration only.

2 x 745 mm (W) x 2040 mm (H) with 95 mm back opening.

Guidance for specification option:

For Double Slider configuration only.

2 x 845 mm (W) x 2040 mm (H) with 95 mm back opening.

Guidance for specification option:

For Double Slider configuration only.

2 x 520 mm (W) x 2040 mm (H) with 114 mm back opening.

Guidance for specification option:

For Double configuration only.

2 x 620 mm (W) x 2040 mm (H) with 114 mm back opening.

Guidance for specification option:

For Double configuration only.

2 x 720 mm (W) x 2040 mm (H) with 114 mm back opening.

Guidance for specification option:

For Double configuration only.

2 x 820 mm (W) x 2040 mm (H) with 114 mm back opening.

Guidance for specification option:

For Double configuration only.

Manufacturer guidance

Slider profiles are available in stocked 95 mm back opening only. Maximum door thickness is 38 mm.

Ancillary components

Slimline, 100 x 75 loose-pin hinges with zinc coating and screw-on striker plate.

Guidance for specification option:

Comes as standard to all Metroll Frames.

Swing

Right-hand opening.

Left-hand opening.

Accessories

Broad butt hinge (100 x 100 mm).

Corrugated, off set brick ties.

Dead lock.

Dyna bolt fixing plates (3 per side).

Extra 100 x 75 x 1.6 mm hinge (fitted).

Show more

Sustainability data

Country of product manufacture

Australia

Literature

Metroll Metal Door Frames Design Guide

Metroll Metal Door Frames Design Guide
