Split Door Frames

Verified by manufacturer over a year ago

Metroll

Door frames made of two halves that fit from each side. Only available in WA.

Jump to:
+61 8 9365 5444 Website

Application

Suitable for stud work applications or retrofitting into brick work or concrete work.

Description

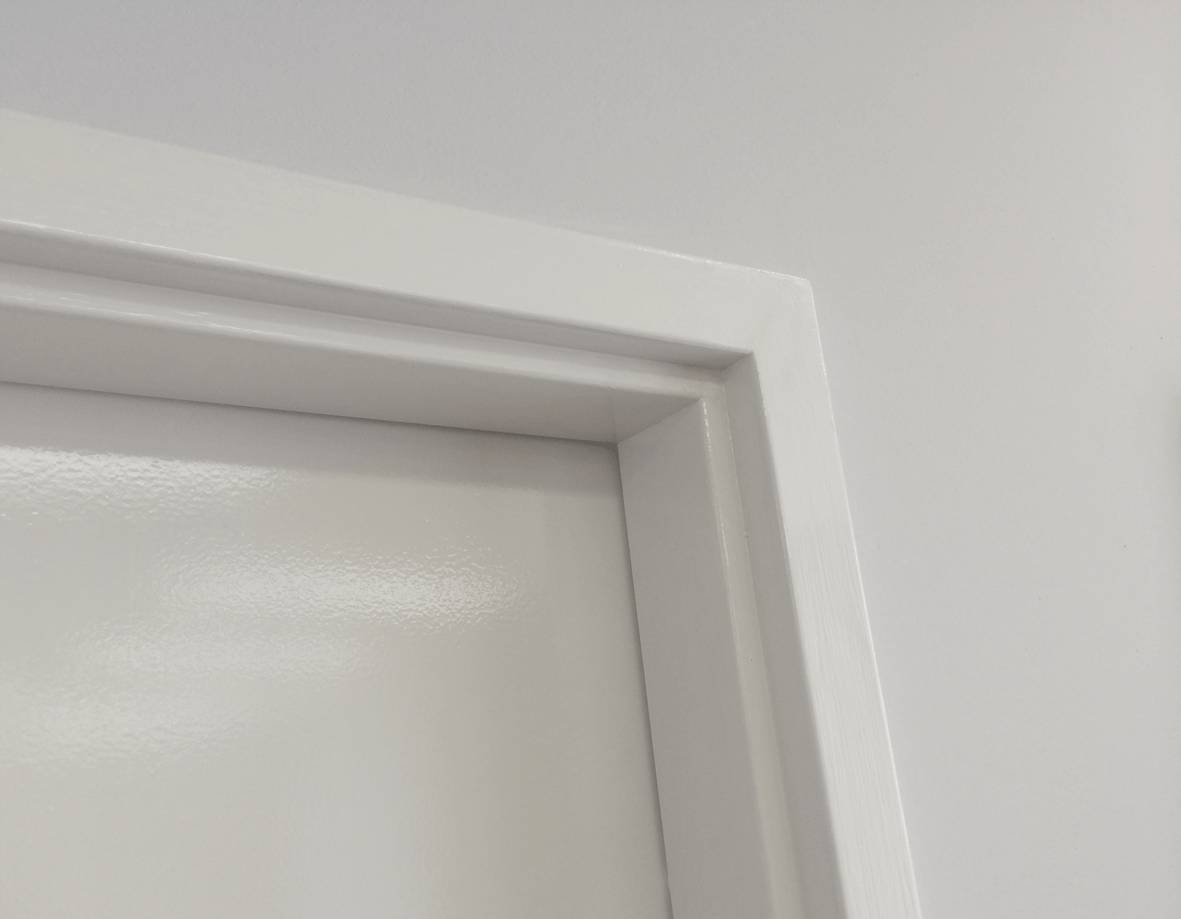

Split Door Frames are door frames made of two halves that are made to fit from each side. It has counter-sunk holes for fixing and removable spreader bars to each half of the frame. Some features of these frames include:

  • Precision mitres.
  • Unobtrusive hinges.
  • Built-in architraves.
  • Shock absorbing rubber buffers.
  • Stainless steel striker plate.
  • All dimensions can be altered to suit applications.
  • Custom sizes available with additional lead time.

General information

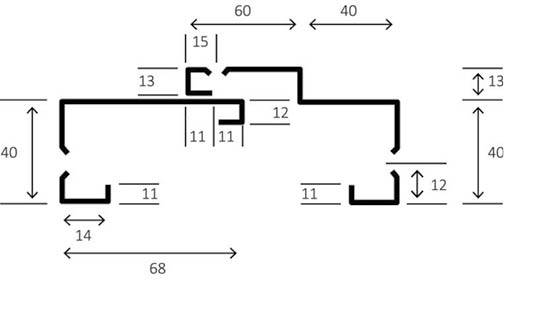

Shape

Standard profile.

Material

Steel.

Size

-

Manufacturer guidance

Dimensions are altered to suit applications. To compute for needed stud opening size, add 40 mm to door height and 35 mm to door width.

Uniclass

Pr_30_59_23_11 Carbon steel door framesPrimary

SpecPack

08200 Doors, Door Frames and Hatches

NATSPEC National Classification System

0453 Doors and Access Panels

SpeedSpec

08200 Doors and Door Frames

Specification data - Carbon steel door frames

Dimensions

-

Width and height

-

Manufacturer guidance

Dimensions are altered to suit applications. To compute for needed stud opening size, add 40 mm to door height and 35 mm to door width.

Opening

-

Manufacturer guidance

Refers to the size of the back opening of door frame.

Ancillary components

Slimline, 100 x 75 loose-pin hinges with zinc coating and screw-on striker plate.

Guidance for specification option:

Comes as standard to all Metroll Frames.

Swing

Right-hand opening.

Left-hand opening.

Accessories

Broad butt hinge (100 x 100 mm).

Corrugated, off set brick ties.

Dead lock.

Dyna bolt fixing plates (3 per side).

Extra 100 x 75 x 1.6 mm hinge (fitted).

Show more

Sustainability data

Country of product manufacture

Australia

Literature

Metroll Metal Door Frames Design Guide

Metroll Metal Door Frames Design Guide
