10 Bend Knockdown Door Frames

Verified by manufacturer over a year ago

Metroll

Unassembled, three-piece modular door frames. Only available in WA.

Jump to:
+61 8 9365 5444 Website

Application

Suitable for residential uses.

Description

10 Bend Knockdown Door Frames are unassembled, three-piece modular door frames ideal for easy transporting and installation. Some features of these frames include:

  • Easy assembly.
  • Any back opening size can be manufactured (with additional lead time).
  • WC frames and sliders available on request.
  • Frames can be welded on request.

General information

Shape

Standard profile.

Material

Steel.

Uniclass

Pr_30_59_23_11 Carbon steel door framesPrimary

SpecPack

08200 Doors, Door Frames and Hatches

NATSPEC National Classification System

0453 Doors and Access Panels

SpeedSpec

08200 Doors and Door Frames

Specification data - Carbon steel door frames

Configuration

Single.

Double.

3-Doors.

4-Doors.

5-Doors.

6-Doors.

Manufacturer guidance

Refers to number of doors.

Dimensions

-

Width and height

520 mm (W) x 2040 mm (H).

Guidance for specification option:

Applicable to 3-door, 4-door, 5-door and 6-door configurations only.

520 mm (W) x 2300 mm (H).

520 mm (W) x 2340 mm (H).

620 mm (W) x 2040 mm (H).

620 mm (W) x 2300 mm (H).

620 mm (W) x 2340 mm (H).

720 mm (W) x 2040 mm (H).

720 mm (W) x 2300 mm (H).

720 mm (W) x 2340 mm (H).

820 mm (W) x 2040 mm (H).

820 mm (W) x 2300 mm (H).

820 mm (W) x 2340 mm (H).

870 mm (W) x 2040 mm (H).

870 mm (W) x 2300 mm (H).

870 mm (W) x 2340 mm (H).

1040 mm (W) x 2040 mm (H).

1040 mm (W) x 2300 mm (H).

1040 mm (W) x 2340 mm (H).

1240 mm (W) x 2040 mm (H).

1240 mm (W) x 2300 mm (H).

1240 mm (W) x 2340 mm (H).

1440 mm (W) x 2040 mm (H).

1440 mm (W) x 2300 mm (H).

1440 mm (W) x 2340 mm (H).

1640 mm (W) x 2040 mm (H).

1640 mm (W) x 2300 mm (H).

1640 mm (W) x 2340 mm (H).

Opening

-

Manufacturer guidance

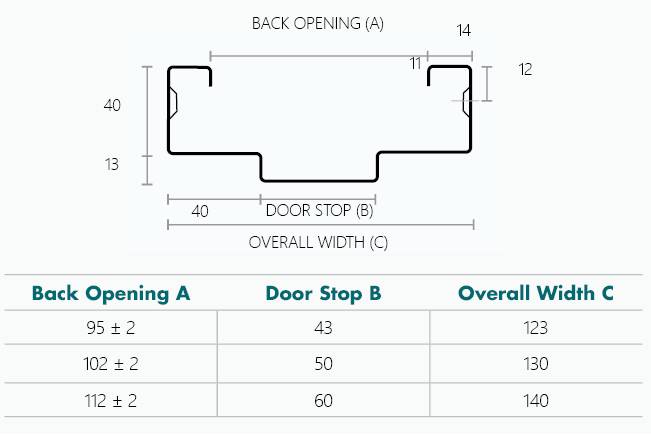

Refers to the size of the back opening of door frame. Standard frame back openings are 95 mm, 102 mm and 112 mm. Other sizes can be manufactured with additional lead time. Tolerance of ±2 mm.

Ancillary components

Slimline, 100 x 75 loose-pin hinges with zinc coating and screw-on striker plate.

Guidance for specification option:

Comes as standard to all Metroll Frames.

Swing

Right-hand opening.

Left-hand opening.

Accessories

Broad butt hinge (100 x 100 mm).

Corrugated, off set brick ties.

Dead lock.

Dyna bolt fixing plates (3 per side).

Extra 100 x 75 x 1.6 mm hinge (fitted).

Show more

Sustainability data

Country of product manufacture

Australia
