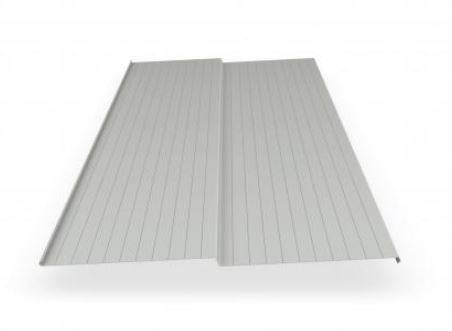

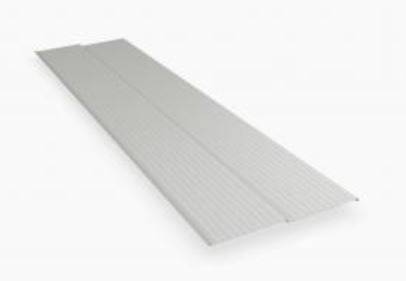

LYSAGHT WEATHERLINE® (COLORBOND® Steel & ZINCALUME® Steel)

Name: LYSAGHT WEATHERLINE® (COLORBOND® Steel & ZINCALUME® Steel)
Brand: Lysaght
SKU: bTTRkbCj4YJ8NSnBEdgLv2

Verified by manufacturer over a year ago

Weatherline® Zincalume® Steel

Lysaght

An interlocking steel panel system with concealed fixings.

Jump to:

+61 1800 800 789 Website

Application

Concealed fixed horizontally on walls in internal or external locations.
Can be used in marine, severe industrial, or usually corrosive environments.

AUSTRALIAN STANDARDS

Published load capacity data is derived from testing in accordance with:

AS 4040.0 – 1992
AS 4040.1 – 1992
AS 4040.2 – 1992
AS 4040.3:2018

Published Limit state capacities are suitable to determine structural adequacy and serviceability in accordance with:

AS/NZS 1170.0:2002 Structural design actions, Part 0: General principles –
AS/NZS 1170.1:2002 (Reconfirmed 2016) Structural design actions, Part 1: Permanent, imposed and other actions –
AS/NZS 1170.2:2011 (Reconfirmed 2016) Structural design actions, Part 2: Wind actions –
AS/NZS 1170.3:2011 (Reconfirmed 2016) Structural design actions, Part 3: Snow and ice actions.

Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding

Lysaght steel products comply with:

AS 1397-2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium –
AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements –
AS 1397-2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.

Only available in QLD.

Description

Weatherline® is an attractive, durable and concealed fixed interlocking steel panel system with flat pan finish and subtle fluting. Some of its significant features include:

Lightweight and easy to handle.
Can be fixed horizontally.

General information

Material	COLORBOND® Steel. ZINCALUME® Steel.
Size	265 mm Guidance for specification option: Nominal cover width.
Warranty description	- Manufacturer guidance Covered by BlueScope material performance warranties.

Uniclass	Pr_25_71_51_89 Steel profiled sheetPrimary
SpecPack	07600 Metal Roofing, Siding and Roof Plumbing
SpeedSpec	07462 Cladding External Walls
NATSPEC National Classification System	0431 Cladding - Combined 0436 Cladding – Profiled and Seamed Sheet Metal

Specification data - Steel profiled sheet

Standards	To AS 1397:2011 and AS/NZS 2728:2013.
Grade	G550.
Coating class	AM125.
Base Metal thickness (BMT)	0.42.
Profile	-
Form	Flat pan with subtle fluting.
Height	15 mm. Guidance for specification option: Nominal height at 15 mm.
Cover width	265 mm. Manufacturer guidance Width tolerance at +2 mm, –2 mm.
Colour	- Manufacturer guidance Available in unpainted steel range. Check with the manufacturer.
Finish	Zincalume® steel.
Solar absorptance value (maximum)	- Manufacturer guidance Solar absorptance values vary depending on the COLORBOND® steel colour of choice. To check with the manufacturer.

Length	- Manufacturer guidance Length tolerance: + 2mm, – 2mm. Sheets are supplied custom cut to length to suit project requirements. Transportation limits apply. Check with the local manufacturer for availability

Sustainability data

Country of material origin	Australia
Country of product manufacture	Australia
Recyclability	Fully recyclable.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	20 %
