LYSAGHT WALLCLAD® (COLORBOND® Steel & ZINCALUME® Steel)

Name: LYSAGHT WALLCLAD® (COLORBOND® Steel & ZINCALUME® Steel)
Brand: Lysaght
SKU: 98E2hFPJHpAC7wEwwpiyku

Verified by manufacturer over a year ago

ZINCALUME® Steel

Lysaght

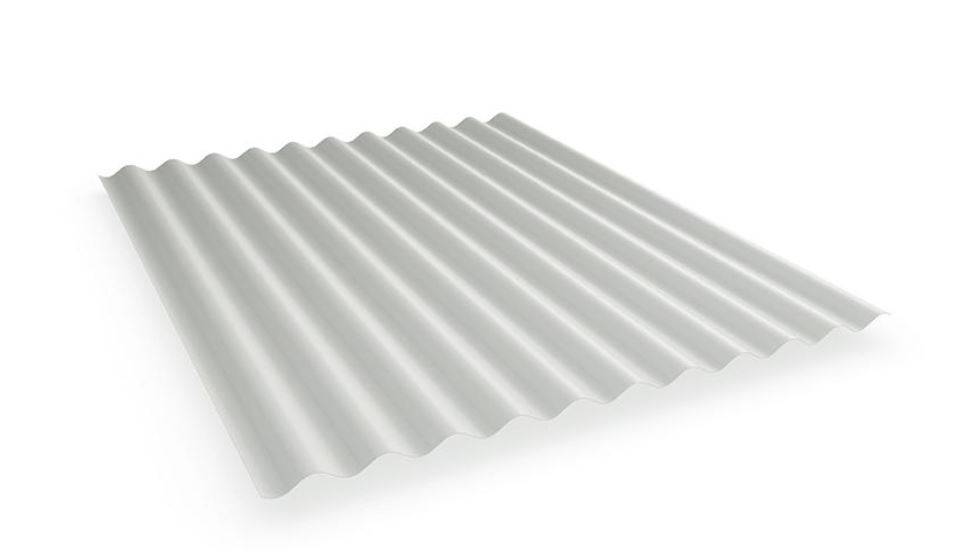

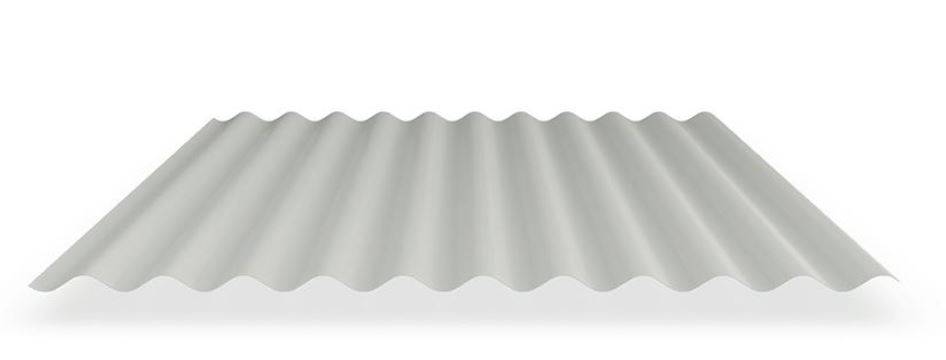

Lightweight and versatile corrugated wall cladding.

Jump to:

+61 1800 800 789 Website

Application

Ideal for commercial, industrial and residential buildings.
Ideal for garages, sheds, fascias and awning linings.
Complements the CUSTOM ORB® corrugated roofing profile.
Can be pierce-fixed to timber or steel supports.

AUSTRALIAN STANDARDS

Published load capacity data is derived from testing in accordance with:

AS 4040.0 – 1992
AS 4040.1 – 1992
AS 4040.2 – 1992
AS 4040.3:2018

Published Limit state capacities are suitable to determine structural adequacy and serviceability in accordance with:

AS/NZS 1170.0:2002 Structural design actions, Part 0: General principles –
AS/NZS 1170.1:2002 (Reconfirmed 2016) Structural design actions, Part 1: Permanent, imposed and other actions –
AS/NZS 1170.2:2011 (Reconfirmed 2016) Structural design actions, Part 2: Wind actions –
AS/NZS 1170.3:2011 (Reconfirmed 2016) Structural design actions, Part 3: Snow and ice actions.

Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding

Lysaght steel products comply with:

AS 1397-2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium –
AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements –
AS 1397-2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.

Description

WallClad® is an attractive, lightweight and versatile corrugated walling cladding and is identical with Custom Orb profile. Some of its significant features include:

Lightweight, easy to handle
Quick to install.
Corrugations can run vertically or horizontally.

Only available in WA and SA.

General information

Color	- Manufacturer guidance Wide range of colours are available. Check with the manufacturer.
Material	Zincalume® Steel. Colorbond® Steel.
Size	762 mm Guidance for specification option: Nominal cover width.
Warranty description	- Manufacturer guidance Covered by BlueScope material performance warranties.

Uniclass	Pr_25_71_51_89 Steel profiled sheetPrimary
SpecPack	07600 Metal Roofing, Siding and Roof Plumbing
SpeedSpec	07462 Cladding External Walls
NATSPEC National Classification System	0431 Cladding - Combined 0436 Cladding – Profiled and Seamed Sheet Metal

Specification data - Steel profiled sheet

Standards	To AS 1397:2011 and AS/NZS 2728:2013.
Grade	G550.
Coating class	AM125.
Base Metal thickness (BMT)	0.35.
Profile	-
Form	Lightweight and wide profile corrugated sheet.
Height	16 mm.
Cover width	762 mm. Manufacturer guidance Cover width tolerance: +4 mm, -4 mm.
Colour	- Manufacturer guidance Available in unpainted steel range. Check with the manufacturer.
Finish	Zincalume® steel.
Solar absorptance value (maximum)	- Manufacturer guidance Check with the manufacturer for solar absorption value.

Length	- Manufacturer guidance Length tolerance: +10 mm, –10 mm. Available in custom cut to length sheet options. Minimum and maximum lengths apply. To check with the local manufacturer for availability.

Sustainability data

Country of material origin	Australia
Country of product manufacture	Australia
Recyclability	Fully recyclable.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	20 %
