LYSAGHT SNAPSEAM® (COLORBOND® Steel & ZINCALUME® Steel)

Name: LYSAGHT SNAPSEAM® (COLORBOND® Steel & ZINCALUME® Steel)
Brand: Lysaght
SKU: mznoHu213FMwDKhmJTVS6o

Verified by manufacturer over a year ago

ZINCALUME® Steel

Lysaght

A Zenith™ architectural cladding range with a concealed fixed flat panel cladding system.

Jump to:

+61 1800 800 789 Website

Application

Ideal for residential, commercial and industrial applications.
Ideal for wall applications in cyclonic and non-cyclonic regions.
Suitable for long length roofing and walling application.

AUSTRALIAN STANDARDS

Published load capacity data is derived from testing in accordance with:

AS 4040.0 – 1992
AS 4040.1 – 1992
AS 4040.2 – 1992
AS 4040.3:2018

Published Limit state capacities are suitable to determine structural adequacy and serviceability in accordance with:

AS/NZS 1170.0:2002 Structural design actions, Part 0: General principles –
AS/NZS 1170.1:2002 (Reconfirmed 2016) Structural design actions, Part 1: Permanent, imposed and other actions –
AS/NZS 1170.2:2011 (Reconfirmed 2016) Structural design actions, Part 2: Wind actions –
AS/NZS 1170.3:2011 (Reconfirmed 2016) Structural design actions, Part 3: Snow and ice actions.

Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding

Lysaght steel products comply with:

AS 1397-2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium –
AS/NZS 2728:2013 Prefinished/pre-painted sheet metal products for interior/exterior building applications - Performance requirements –
AS 1397-2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.

Description

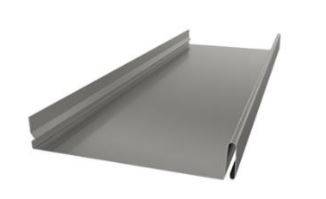

LYSAGHT SNAPSEAM® is part of the Zenith architectural cladding range with broad flat pans and distinctive ribs that offer greater flexibility for longer lengths and greater spanning capacity. Designed with concealed fix clips that enhance thermal expansion and contraction capacity while providing greater fixing security.

Only available in NT, QLD, NSW, ACT, VIC, TAS, WA & SA

General information

Color	- Manufacturer guidance Wide range of colours are available. Check with the manufacturer.
Material	Zincalume® Steel. Colorbond® Steel.
Width	265 mm 465 mm Manufacturer guidance Available cover width options:
Warranty description	- Manufacturer guidance Covered by BlueScope material performance warranty.

Uniclass	Pr_25_71_51_89 Steel profiled sheetPrimary
NATSPEC National Classification System	0436 Cladding – Profiled and Seamed Sheet Metal 0431 Cladding - Combined
SpeedSpec	07462 Cladding External Walls
SpecPack	07600 Metal Roofing, Siding and Roof Plumbing

Specification data - Steel profiled sheet

Standards	To AS 1397:2011 and AAS/NZS 2728:2013.
Grade	G300.
Coating class	AM125.
Base Metal thickness (BMT)	0.55. 0.75. Guidance for specification option: To check with your local Lysaght branch for the availability of .75 mm BMT.
Profile	-
Form	Broad, flat pan.
Height	38 mm.
Cover width	265 mm. 465 mm. Manufacturer guidance Width tolerance: ±4 mm.
Colour	- Manufacturer guidance Available in unpainted steel range. Check with the manufacturer.
Finish	Zincalume® steel.®
Solar absorptance value (maximum)	- Manufacturer guidance Solar absorptance values vary depending on the COLORBOND® steel colour of choice. To check with the manufacturer.

Length	- Manufacturer guidance Length tolerance: ± 7 mm. Sheets are supplied custom cut to length to suit project requirements. Transportation limits apply. Check with the local manufacturer for availability.

Sustainability data

Country of material origin	Australia
Country of product manufacture	Australia
Recyclability	Fully recyclable.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	20 %
