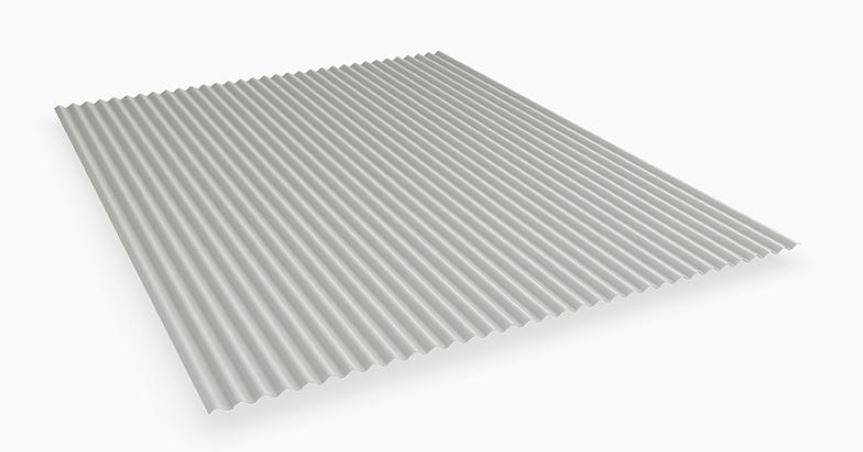

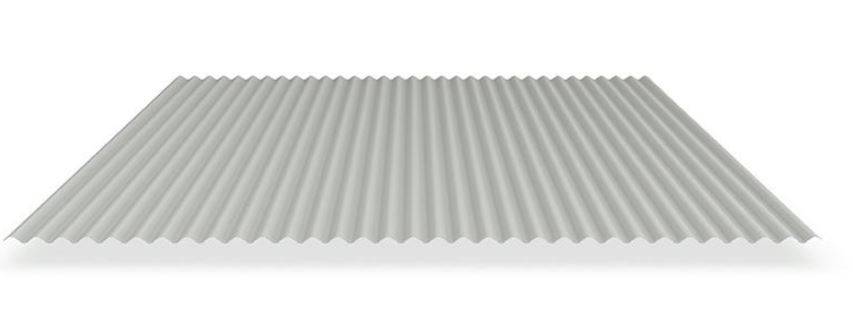

LYSAGHT MINI ORB® - Stainless steel

• Suitable for use on interior and exterior applications.
• Suitable for flat or curved surfaces.
• Corrugations can run vertically or horizontally.
• Used for decorative finishes on walls, ceilings and soffit linings.
• Can be used for feature walls, screens and small awnings not subject to any foot traffic.
• Suitable use for furniture, fencing, gate, awnings and shop fittings.
• Can be use for interior ceilings in both industrial and domestic markets.
• Complements with other Lysaght roofing and wall claddings.

AUSTRALIAN STANDARDS

Published load capacity data is derived from testing in accordance with:

•       AS 4040.0 – 1992
•       AS 4040.1 – 1992
•       AS 4040.2 – 1992
•       AS 4040.3:2018

Published Limit state capacities are suitable to determine structural adequacy and serviceability in accordance with:

•      AS/NZS 1170.0:2002 Structural design actions, Part 0: General principles –
•        AS/NZS 1170.1:2002 (Reconfirmed 2016) Structural design actions, Part 1: Permanent, imposed and other actions –
•        AS/NZS 1170.2:2011 (Reconfirmed 2016) Structural design actions, Part 2: Wind actions –
•       AS/NZS 1170.3:2011 (Reconfirmed 2016) Structural design actions, Part 3: Snow and ice actions.

Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding

Lysaght steel products comply with:

•       AS 1397-2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium –
•      AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements –
•       AS 1397-2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.
