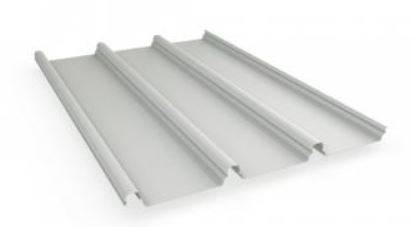

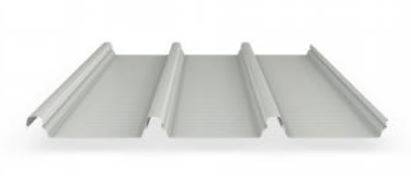

LYSAGHT KLIP-LOK 700 HI-STRENGTH® - Stainless steel

Verified by manufacturer over a year ago

Lysaght

A stainless steel, concealed fix roof and wall cladding with bold ribs.

Jump to:
+61 1800 800 789 Website

Application

  • Ideal for residential, commercial and industrial applications.
  • Suitable for long length roofing application.
  • Ideal for spring curving.
  • Available in rolled-on-site lengths via mobile roll forming capability.


AUSTRALIAN STANDARDS



Published load capacity data is derived from testing in accordance with:

  •       AS 4040.0 – 1992
  •       AS 4040.1 – 1992
  •       AS 4040.2 – 1992
  •       AS 4040.3:2018



Published Limit state capacities are suitable to determine structural adequacy and serviceability in accordance with:

  •      AS/NZS 1170.0:2002 Structural design actions, Part 0: General principles –
  •        AS/NZS 1170.1:2002 (Reconfirmed 2016) Structural design actions, Part 1: Permanent, imposed and other actions –
  •        AS/NZS 1170.2:2011 (Reconfirmed 2016) Structural design actions, Part 2: Wind actions –
  •       AS/NZS 1170.3:2011 (Reconfirmed 2016) Structural design actions, Part 3: Snow and ice actions.



Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding



Lysaght steel products comply with:



  •       AS 1397-2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium –
  •      AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements –
  •       AS 1397-2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.

Description

Klip-Lok 700 Hi-Strength® features a transverse fluting, concealed fix roof cladding in stainless steel finish. Design with long straight lines and bold ribs arising from the flat pans. Some of its significant features include:

  • Achievable thermal expansion of long straight runs while having unexposed fasteners.
  • Concealed fixed cladding offering weather tightness.
  • With fixing clip that can accommodate up to 100mm of insulation.
  • Roof spans consider both resistance to wind pressure and light roof traffic.


Only available in QLD, NSW, ACT & VIC

General information

Material

Stainless steel.

Size

700 mm (cover width).

Warranty description

-

Manufacturer guidance

Covered by BlueScope material performance warranties.

Uniclass

Pr_25_71_51_85 Stainless steel profiled sheetsPrimary

SpecPack

07600 Metal Roofing, Siding and Roof Plumbing

SpeedSpec

07610 Roofing and Roof Plumbing

07462 Cladding External Walls

NATSPEC National Classification System

0431 Cladding - Combined

0436 Cladding – Profiled and Seamed Sheet Metal

0421 Roofing - Combined

0423 Roofing – Profiled Sheet Metal

Specification data - Stainless steel profiled sheets

Standard

To AS/NZS 2728:2013.

Material

Stainless steel.

Grade

430.

Base Metal thickness (BMT)

0.42.

Profile

-

Form

Bold rib, flat pan.

Height

43 mm.

Cover width

700 mm.

Guidance for specification option:

 Width tolerance: +4mm, –4mm.

Colour

Surfmist® Stainless

Dune® Stainless

Deep Ocean® Stainless

Windspray® Stainless

Solar absorptance value (maximum)

-

Manufacturer guidance

Solar absorptance values vary depending on the COLORBOND® steel colour of choice. To check with the manufacturer.

Length

-

Manufacturer guidance

Length tolerance: +0mm, –15mm.


Mobile roll-formed sheets are custom cut on-site. Factory sheets cut to order. To check with the local manufacturer for availability.

Finish:

SuperDura™ stainless steel.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Recyclability

Fully recyclable.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

20 %
