LYSAGHT EASYCLAD® - Stainless steel

Name: LYSAGHT EASYCLAD® - Stainless steel
Brand: Lysaght
SKU: wzaGQaGbPMTf3bRFXhav5c

Verified by manufacturer over a year ago

Lysaght

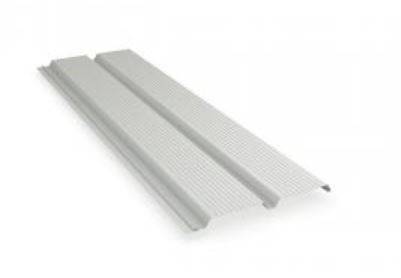

Attractive, strong stainless steel wall cladding solution.

Jump to:

+61 1800 800 789 Website

Application

Suitable for walls, ceilings, infill panels and screens.
Suitable for exterior and interior application.
Can be used for eaves lining.
Can be installed with clips for fixing.

AUSTRALIAN STANDARDS

Published load capacity data is derived from testing in accordance with:

AS 4040.0 – 1992
AS 4040.1 – 1992
AS 4040.2 – 1992
AS 4040.3:2018

Published Limit state capacities are suitable to determine structural adequacy and serviceability in accordance with:

AS/NZS 1170.0:2002 Structural design actions, Part 0: General principles –
AS/NZS 1170.1:2002 (Reconfirmed 2016) Structural design actions, Part 1: Permanent, imposed and other actions –
AS/NZS 1170.2:2011 (Reconfirmed 2016) Structural design actions, Part 2: Wind actions –
AS/NZS 1170.3:2011 (Reconfirmed 2016) Structural design actions, Part 3: Snow and ice actions.

Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding

Lysaght steel products comply with:

AS 1397-2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium –
AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements –
AS 1397-2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.

Description

Easyclad® is an attractive yet strong solution for both interior and exterior walling applications in stainless steel. Simple clips are used for fixing the start of the first sheet; subsequent sheets are nailed or screwed. Some of its significant features include:

High-impact resistance.
Easy to install with clips used for fixing.
Ribs can running vertically or horizontally.

Only available in NT, QLD, NSW, ACT, VIC, TAS & SA.

General information

Material	Stainless steel.
Size	300 mm Guidance for specification option: Nominal cover width.
Warranty description	- Manufacturer guidance Covered by BlueScope material performance warranties.

Uniclass	Pr_25_71_51_85 Stainless steel profiled sheetsPrimary
SpecPack	07600 Metal Roofing, Siding and Roof Plumbing
SpeedSpec	07462 Cladding External Walls
NATSPEC National Classification System	0431 Cladding - Combined 0436 Cladding – Profiled and Seamed Sheet Metal

Specification data - Stainless steel profiled sheets

Standard	To AS/NZS 2728:2013.
Material	Stainless steel.
Grade	430.
Base Metal thickness (BMT)	0.42.
Profile	-
Form	Trapezoidal pans, flat ribs.
Height	19 mm.
Cover width	300 mm. Manufacturer guidance Width tolerance at +1.5 mm, –1.5 mm.
Colour	Surfmist® Stainless Dune® Stainless Deep Ocean® Stainless Windspray® Stainless
Solar absorptance value (maximum)	- Manufacturer guidance Solar absorptance values vary depending on the COLORBOND® steel colour of choice. To check with the manufacturer.

Finish:	SuperDura™ Stainless steel.
Length	- Manufacturer guidance Length tolerance: +0 mm, –15 mm. Sheets are supplied custom cut to length to suit project requirements. Transportation limits apply. Check with the local manufacturer for availability.

Sustainability data

Country of material origin	Australia
Country of product manufacture	Australia
Recyclability	Fully recyclable.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	20 %
