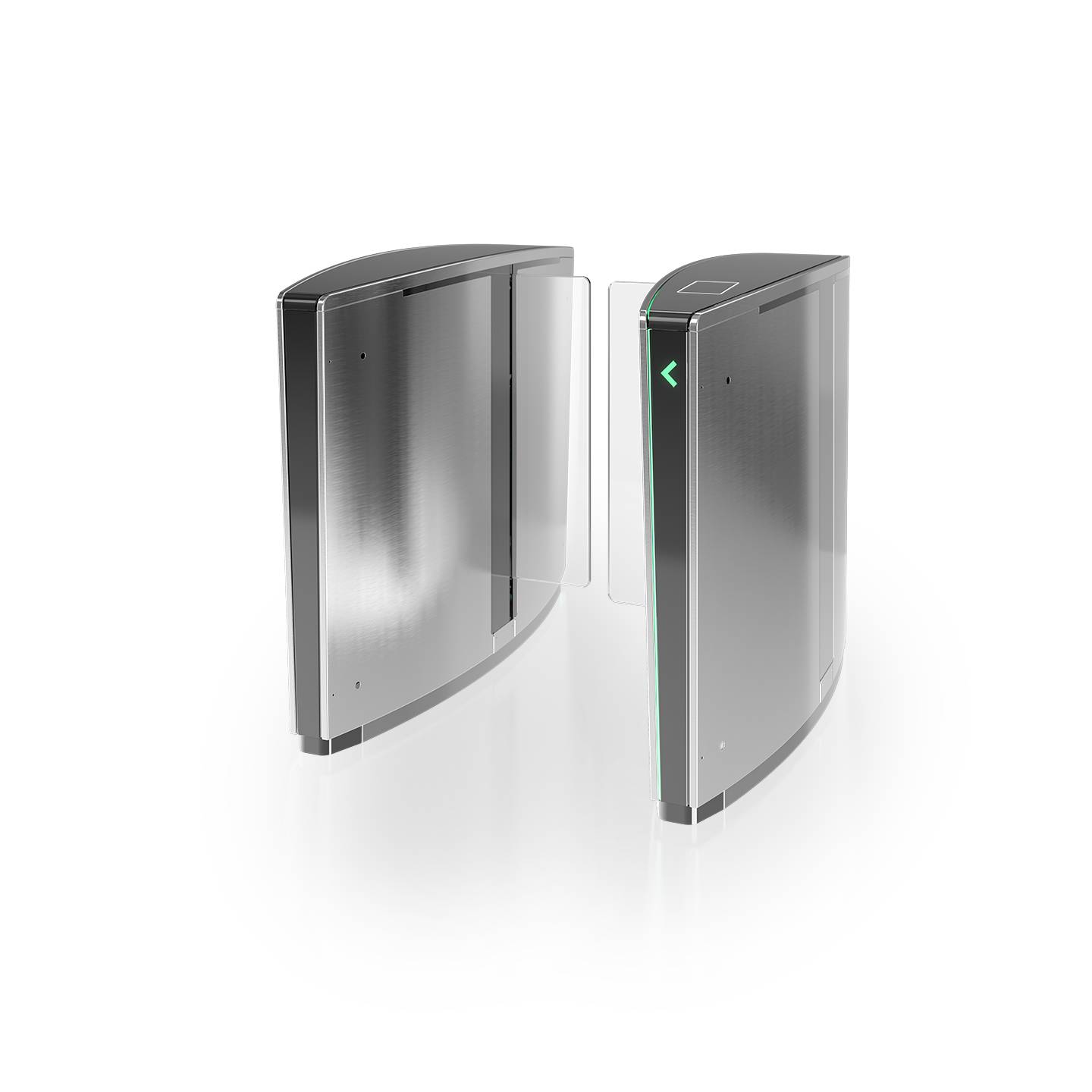

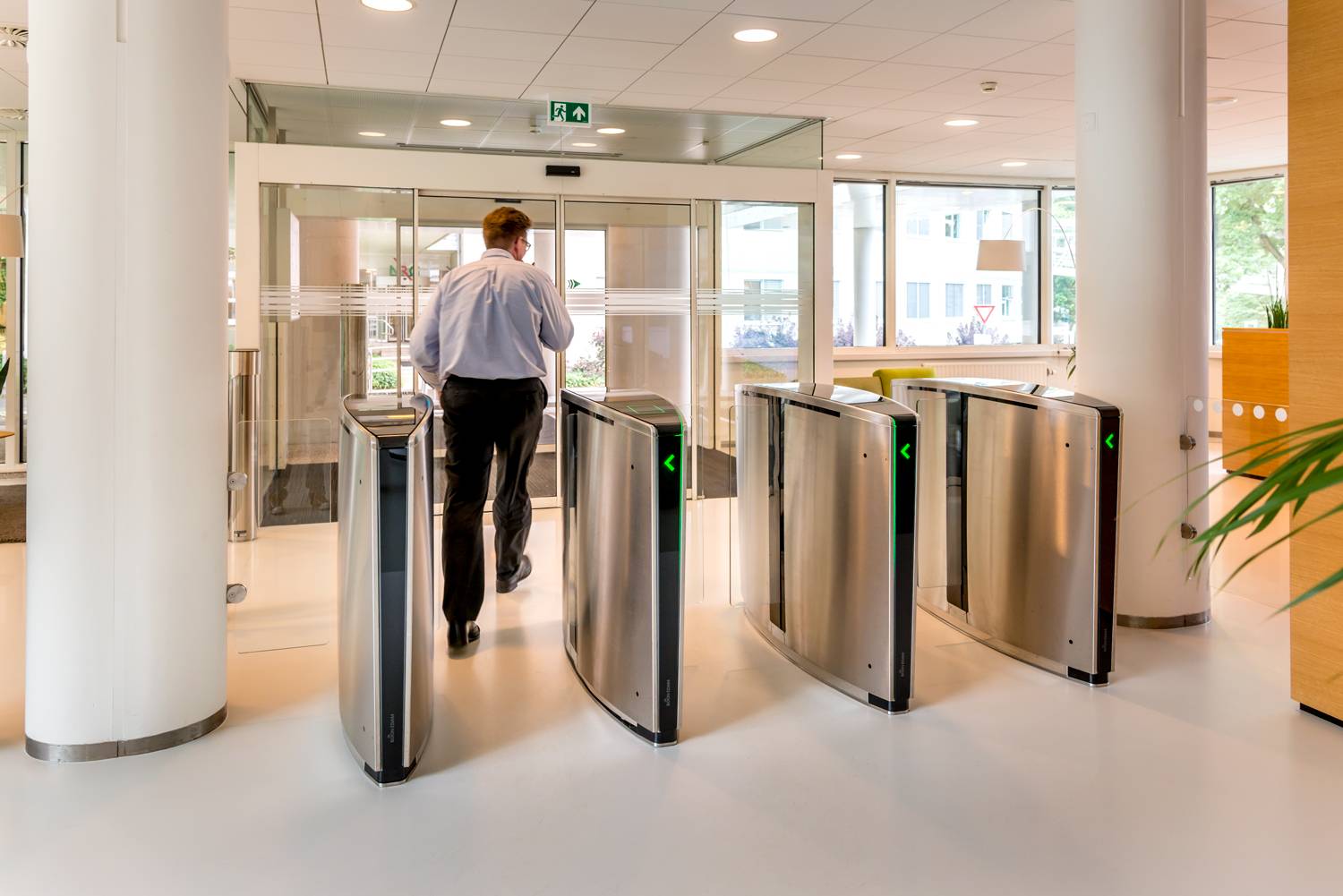

Lifeline Speedlane Slide - Speed gate barrier

Verified by manufacturer over a year ago

Boon Edam Australia Pty Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

The solid flap barrier speed ­gate.

Jump to:
BOS
+61426703326 Website

Application

  • Corporate offices
  • Multi-story tenant buildings
  • Medical and pharmaceutical facilities
  • Schools, universities, and colleges
  • Sports facilities
  • Government and embassy buildings

Description

A customizable, intuitive speed ­gate featuring a unique pulsing light strip. Combining high design with security, with its smart sensors and activate-on-approach technology, this concise flap barrier delivers a modern, welcoming entrance security.


Lifeline Speedlane Slide flap barrier has been designed with a curved cabinet to allow for a quick, sliding motion of the glass wings, as well as showcasing intuitive coloured LED lights which effortlessly glides along a glossy glass top, guiding users from entry through the authorisation and onto the exit onwards.


Features and benefits:

  • Intuitive approach detection.
  • Intelligent user guidance.
  • Tailgating detection.
  • Low-energy, “sleep” mode.
  • Includes pulsing light strips to guide the user.
  • V-shaped, tapered cabinets with ergonomic design and short footprint.
  • Customization possibilities in fitting with interior design.
  • Premium quality materials.
  • Single lane or multiple lane set-up.
  • Fail secure or fail safe.
  • Smooth, sliding-motion glass barriers.

General information

Color

-

Manufacturer guidance

Stainless Steel. All available colours from the RAL colour chart. Custom finishes available.

Material

Stainless steel

Warranty description

One year

Manufacturer guidance

12 month standard product warranty. Extended warranty available on request.

Uniclass

Pr_30_59_34_34 Glazed half-height turnstilesPrimary
Pr_30_59_34_88 Stainless steel half-height turnstiles

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpeedSpec

08200 Doors and Door Frames

Specification data - Glazed half-height turnstiles

Leaves

-

Type

Two wings speed gate.

Surrounds

-

Material

Stainless steel.

Operation

Electrical.

Dimensions

-

Overall depth

1440 mm

Overall height

1035 mm

Passage width

510 mm

910 mm (Wide).

Control units

-

Device acceptance

Card reader.

Guidance for specification option:

Top mount.

Operational voltage

80 W

Profile

High.

Standard.

Wide.

Cabinet length

1440 mm.

Cabinet width

312 mm.

512 mm (wide).

Lane width

1134 mm.

1934 mm (Wide).

Door wing height

980 mm (Standard).

Guidance for specification option:

Other height options available to check with manufacturer.

Manufacturer guidance

Other height options available to check with manufacturer.

Capacity

20 - 30 People per minute.

Security system

Sensor set.

Extra jump over detection.

Booking Signal.

Sound alarm buzzer.

Tailgating detection.

Safety

Fail safe.

Guidance for specification option:

In case of power outage Battery Back-up

Fire alarm connection.

Safety sensor.

Certification

Machine Directive (2006/42/EC)

EMC Directive (2004/108/EC)

RoHS Directive (2011/65/EU)

Accessibility

Winglock Swing access gate.

Approach sensors

Feedback signals.

Lifeline LED guidance.

Access control

Dry contacts for any access control device.

Lifeline boost mount.

Universal elevator destination display.

BoonTouch external control panel.

Power supply

110-240 VAC, 50 / 60 Hz.

Operating temperature

-5°C / +23°F to +40°C / +104°F.

Weight

330 Kg.

Sustainability data

Country of material origin

Netherlands

Country of product manufacture

Netherlands

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

QA Certificate

QA Certificate

Certificate of Approval - ISO 14001:2015

QA Certificate

QA Certificate

Certificate of Approval - ISO 9001:2015
