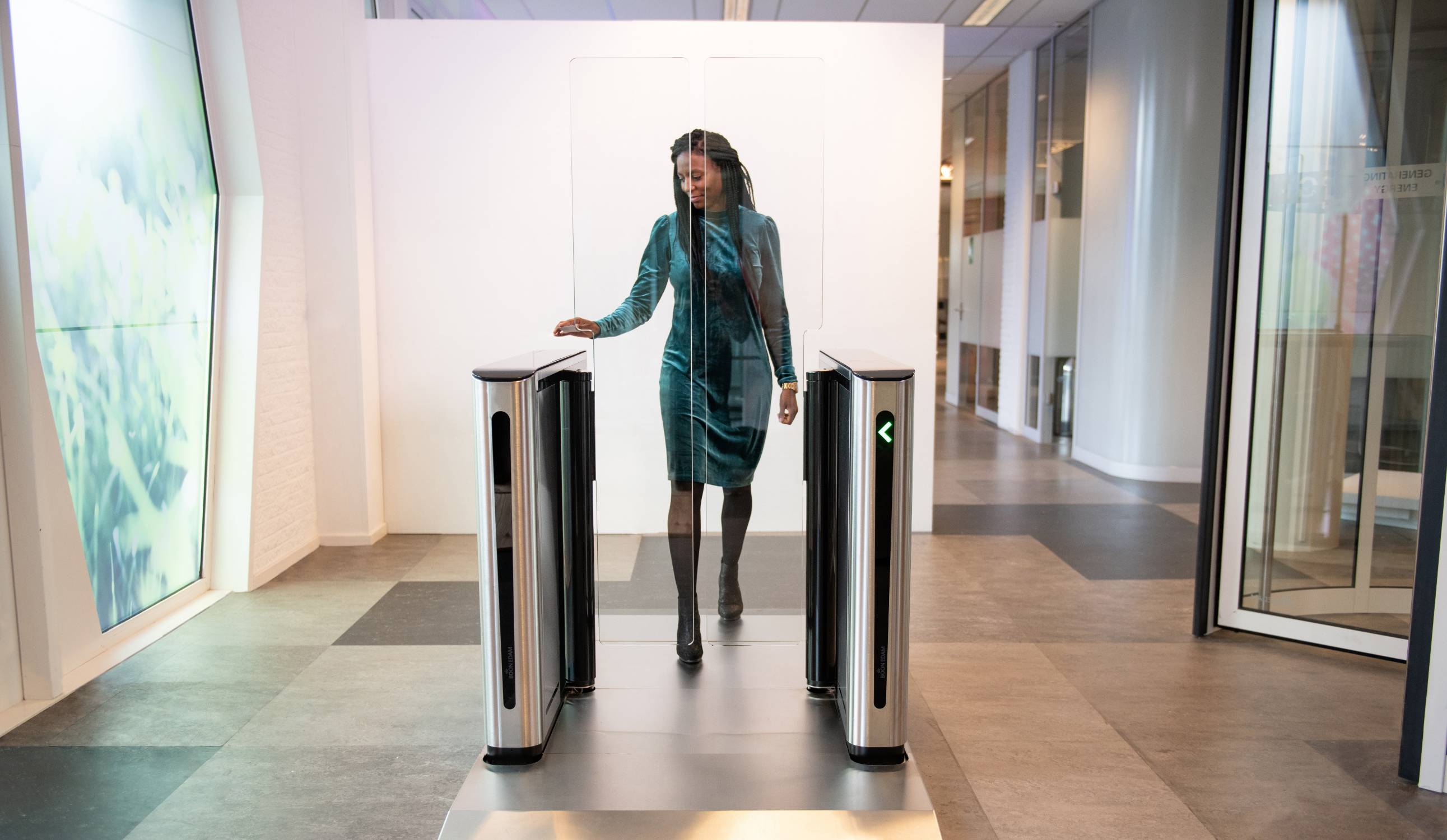

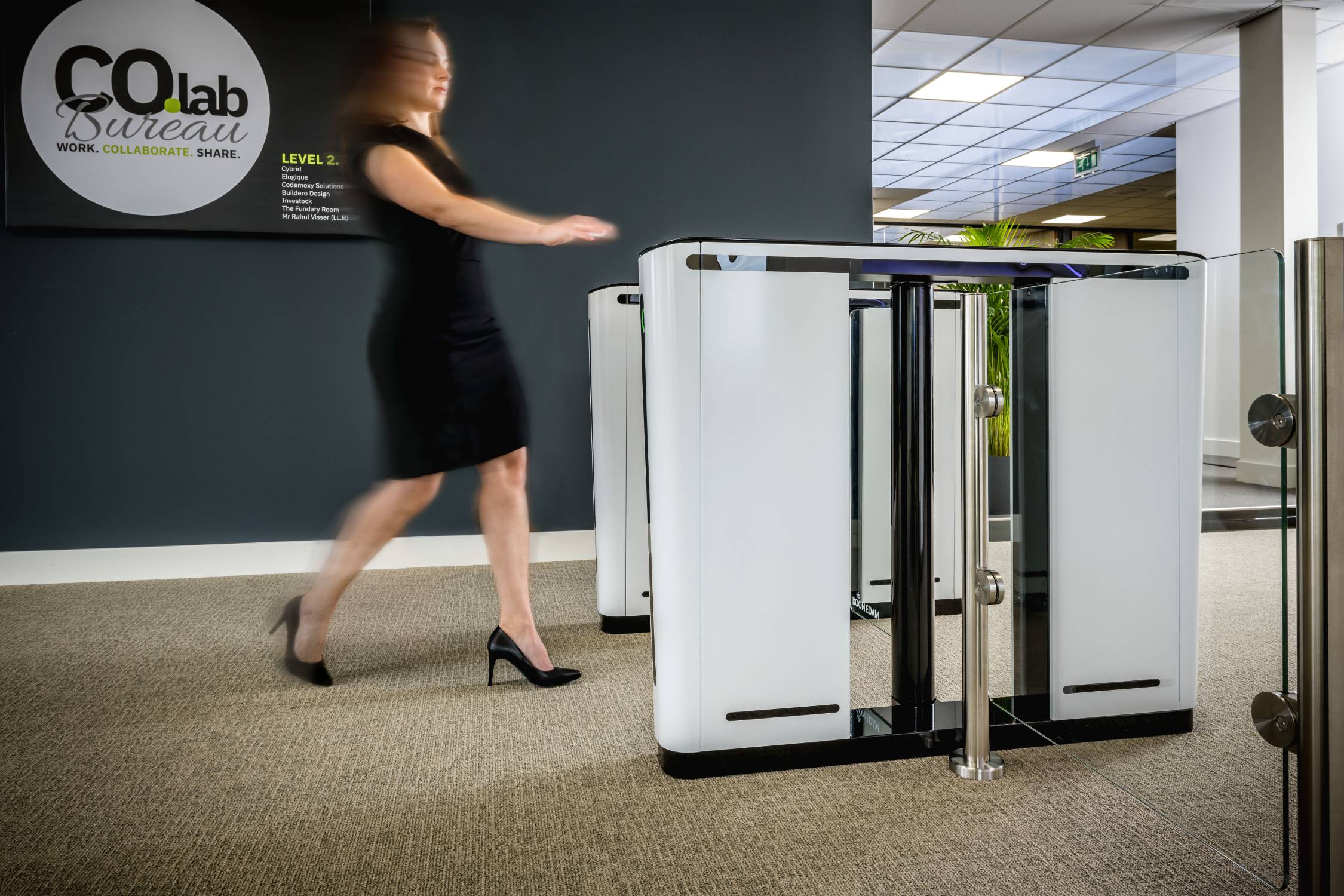

Speedlane Compact - Swing Barrier Gate - Swing type barrier gate

Verified by manufacturer over a year ago

Boon Edam Australia Pty Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Short speed lane swing barrier gate

Jump to:
BOS
+61426703326 Website

Application

For small and valuable areas of real estate spaces.


  • Corporate offices
  • Universities and education facilities
  • Gyms and sports centres
  • Casinos
  • Commercial Office Spaces
  • Libraries
  • Leisure centres
  • Amusement parks

Description

Short speed lane swing barrier gate.


Features and benefits:

  • Premium quality materials.
  • Intuitive user guidance
  • Tailgating, safety and object detection sensor sets, as standard.
  • Easy installation.
  • Generous interior space in the cabinet to allow a large variety of mounting positions for access control integration.
  • Smooth, swing motion glass barriers
  • Short V-shaped cabinet with ergonomic design and small footprint.
  • Flexible lane configurations.
  • Universally understood and proven display symbols
  • Additional flexible options available to fine-tune or ‘Level Up’.
  • Relieves pressure from security or reception staff.
  • Coordinates beautifully with existing building décor and design.
  • Short cabinet length optimises use of valuable floor space.
  • Built to last.




General information

Color

Silver

Finish

Powder-coated

Anodized

Material

Stainless steel

Steel

Length

1200 mm

Width

150 mm

Height

990 mm

Warranty description

One year

Manufacturer guidance

12 month standard product warranty. Extended warranty available on request.

Uniclass

Pr_30_59_34_88 Stainless steel half-height turnstilesPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpeedSpec

08200 Doors and Door Frames

Specification data - Stainless steel half-height turnstiles

Standards

Machine Directive (2006/42/EC) | EMC Directive (2004/108/EC) | RoHS Directive (2011/65/EU)

Turnstile type

Two wings - swing door.

Rotation

Bi-directional.

Operation

Electrical.

Dimensions

-

Overall width

Cabinet width 150 mm.

Overall depth

1200 mm.

Overall height

990 mm .

Passage width

615 mm.

915 mm.

Control units

-

Device acceptance

Card reader.

Biometric reader

Lift destination control.

Operational voltage

60 W.

Passage width

890 mm

1800 mm

Weight

100 kg.

Capacity

20—30 people per minute.

Guidance for specification option:

Dependent on access control system.

Wheelchair access

Yes

Access control

Access control device.

Card reader.

Access card reader

Dimension 200 x 90 x 70 mm (W x L x H)

Mounting method

Top mount.

Operating temperature

-15 to +50°C.

Power supply

110-240 VAC, 50 / 60 Hz.

Model

Speed Lane Compact Swing 615 mm.

Speed Lane Compact Swing 915 mm.

Speed Lane Compact Swing 615—615 mm.

Speed Lane Compact Swing 615—915 mm.

Speed Lane Compact Swing 915—915 mm.

Sensor

Safety sensor.

Fire alarm connection.

Guidance for specification option:

Emergency egress settings depending on local regulations or by request to check with the manufacturer.

Fail safe operation.

Guidance for specification option:

Operation in case of power outage.

Security sound alarm.

Security sensor.

Manufacturer guidance

Safety security level 1.

Sustainability data

Country of material origin

Netherlands

Country of product manufacture

Netherlands

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

QA Certificate

QA Certificate

Certificate of Approval - ISO 14001:2015

QA Certificate

QA Certificate

Certificate of Approval - ISO 9001:2015
