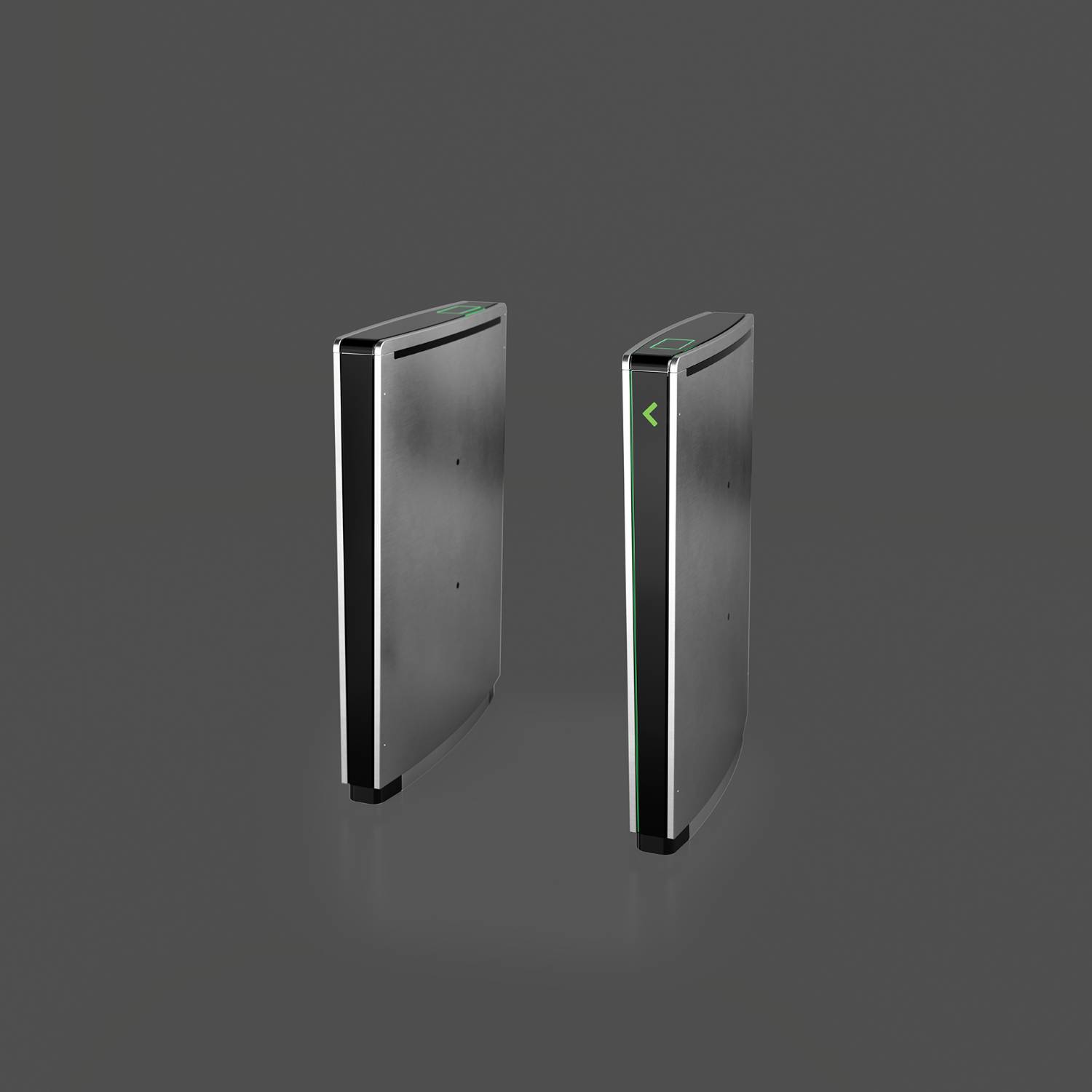

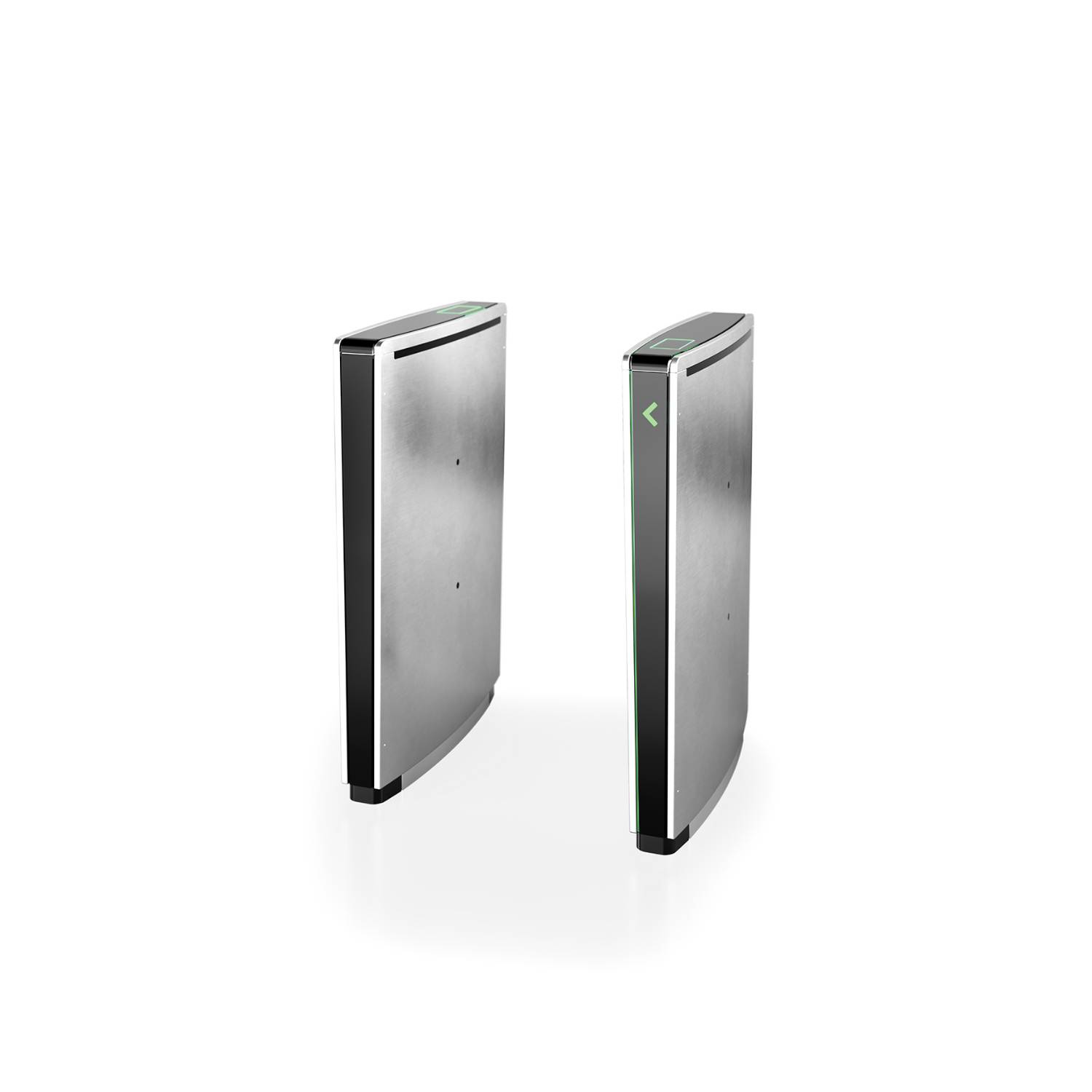

Lifeline Speedlane Open

Verified by manufacturer over a year ago

Boon Edam Australia Pty Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Barrier free speed gate.

Jump to:
BOS
+61426703326 Website

Application

A barrier free speed gate with a small footprint that assists with channeling the flow of people entering and moving around buildings. Acts as a boundary between public and private areas, guiding users to their destination. It ensures the right people are channeled to the right place, alerting security guards if there is a breach of access.


Suitable for foot traffic onlly on areas such as:

  • Corporate offices
  • Multi-story tenant buildings
  • Medical and pharmaceutical facilities
  • Schools, universities, and colleges
  • Sports facilities
  • Government and embassy buildings

Description

Lifeline Speedlane Open is an open security gate with smart sensors that allow for tailgating detection which include alarm notifications.

Made without door wings for an advanced user-friendly experience, and the open style design facilitates faster thoroughfare and compact footprint.


Features:

  • Unique sensors which detect visitors approaching.
  • Sleep function to save energy.
  • Pulsing light strips to guide the user.
  • Intuitive and proven symbols to make it user-friendly.
  • Ergonomic design for customer comfort.
  • Customisation possibilities in fitting with interior design.
  • Premium quality materials.
  • Single lane or multiple lane se-up.
  • Low-energy, “sleep” mode.
  • External panel control.
  • Suitable for wheelchair use.
  • Additional flexible options available to fine-tune or ‘Level Up’
  • Unobtrusive security detection.
  • Compact cabinet design optimises use of valuable floor space.


General information

Color

Black

Guidance for specification option:

Glass top finish.

Manufacturer guidance

Other colours available by request. To check with the manufacturer.

Finish

Powder-coated

Material

Stainless steel

Glass

Guidance for specification option:

Black Glass top.

Shape

Rectangle

Guidance for specification option:

Tapered edge.

Length

760 mm

Guidance for specification option:

Cabinet length

Width

935 mm

Guidance for specification option:

Overall lane width: 935 mm

Passage width: 615 mm

Cabinet width: 160 mm

Height

1035 mm

Warranty description

One year

Manufacturer guidance

12 month standard product warranty. Extended warranty available on request.

Uniclass

Pr_30_59_34_88 Stainless steel half-height turnstilesPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpecPack

05500 Metalwork

Specification data - Stainless steel half-height turnstiles

Standards

Machine Directive (2006/42/EC).

EMC Directive (2004/108/EC).

RoHS Directive (2011/65/EU).

Finish

-

Coating

Powder-coated to AS 4506.

Colour

Stainless steel.

Manufacturer guidance

Other cabinet colours available by request.

Turnstile type

Optical.

Operation

Electrical.

Dimensions

-

Overall width

935 mm.

Guidance for specification option:

Overall lane width at 935 mm.

Cabinet width at 160 mm.

Manufacturer guidance

Available in Level up width option between 820 - 1235 mm.

Overall depth

760 mm.

Guidance for specification option:

Cabinet Length

Overall height

1035 mm.

Guidance for specification option:

Cabinet height.

Passage width

615 mm.

Manufacturer guidance

Available in Level up width option between 500 - 915 mm.

Control units

-

Device acceptance

Card reader.

Operational voltage

50W.

Ingress protection (minimum)

Required.

Integral accessories

Lifeline Boost mount.

BoonTouch external control panel.

Lifeline Speedlane Open SLOB0x.

Operation:

BoonTouch remote operation.

Capacity

20 - 30 (people per minute)

Weight

100 kg.

Security performance

Standard sensor set.

Adjustable booking signal.

Sound alarm - Standard buzzer.

Tailgating detection - Standard Range.

Sound module.

Safety

Fire alarm connection.

Guidance for specification option:

Emergency egress settings depending on local regulations and/or customer requirements. To check with the manufacturer.

Sensors

Approach sensors.

Feedback signals Lifeline LED guidance.

Power

50 W.

Power supply

110-240 VAC, 50 / 60 Hz.

Power consumption

Operating: 50 W.

Stationary: 45 W.

Sleep Mode: 40 W.

Operating temperature

-15 to +50°C.

Wheelchair access

Winglock Swing access gate.

Sustainability data

Country of material origin

Netherlands

Country of product manufacture

Netherlands

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
