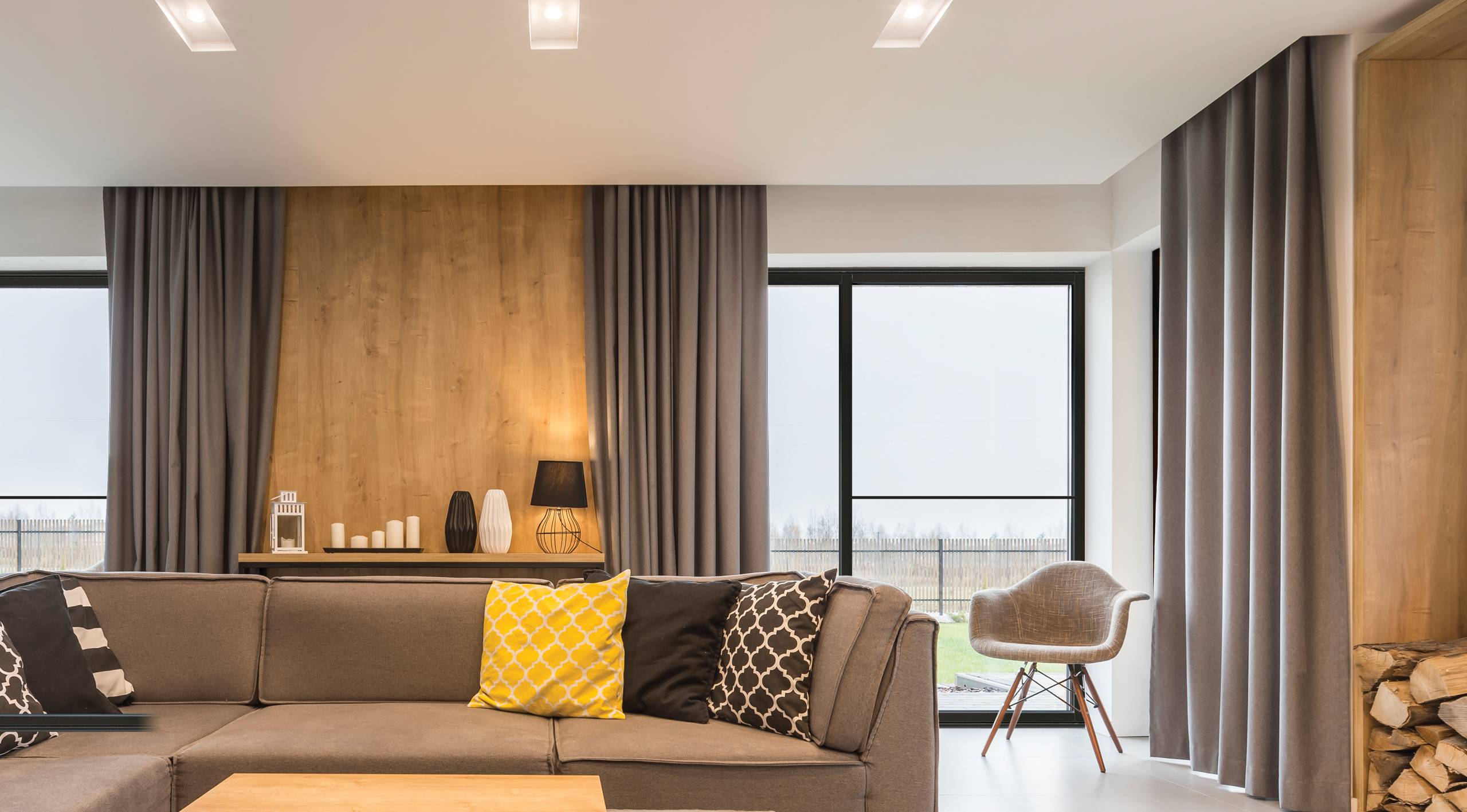

Futureline sashless window
Verified by manufacturer over a year ago
Declare
Certificate type
National Construction Product Register
Certificate type
Futureline vertical sashless window.
Application
Residential and commercial applications.
Description
The Futureline Vertical Sashless Window is a sleek and modern take on the traditional double hung window. As the name suggests, the panes are sashless, allowing an almost uninterrupted view. The Futureline Vertical Sashless Window is a high quality thermally broken sashless system utilising advanced Aneeta® technology, the leaders in sashless window design. Available in a range of configurations and compatible with Futureline’s Framing Systems, it offers design flexibility.
General information
Finish | Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Width | 1598 mm |
Height | 4000 mm |
Uniclass | |
NATSPEC National Classification System | 0451 Windows and Glazed Doors |
SpeedSpec | 08520 Metal Windows and Glazed Doors |
SpecPack | 08520 Metal Windows and Glazed Doors |
Specification data - Aluminium window units
Standard | To AS 2047. |
Dimensions and configurations | Various dimensions and configurations - see product literature |
Operation: | Manual. |
Configurations | Vertical: Two pane vertical, counterbalance operation / one fixed and one operable panel. |
Sash (h x w) | Vertical Insert Height: 4.0m and Insert Width: 1.598m and Weight 40kgs / Horizontal Insert Height: 1.607m and Insert Width: 5.0m and Weight: 60kgs. |
Frame dimensions | Vertical Frame: 33-38mm and Interlock: 19mm / Horizontal Frame: 34-56mm and Interlock: 19mm. |
Glazing | Double. |
Performance: | Vertical Max SLS: 1200pa / ULS: 3000pa WATER: 300pa / Horizontal Max ULS: 2000pa WATER: 300pa. |
Weight | Panel weight 40kg |
Cyclonic impact testing | No |
Bushfire attack level (BAL) | up to BAL29 DTS. |
Sustainability data
Country of material origin | Australia |
Country of product manufacture | Australia |
Recyclability | 100% recyclable. |
Third party certifications

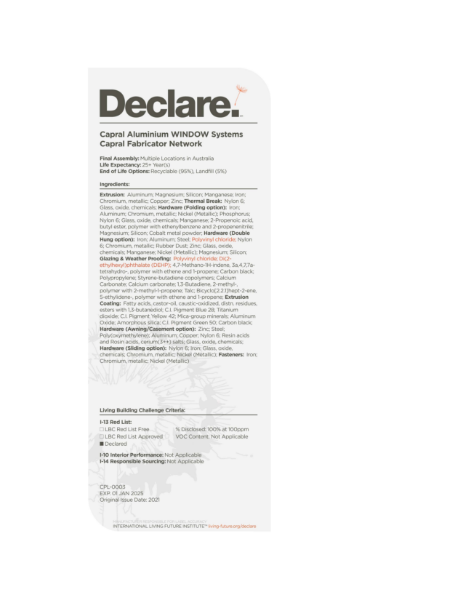

Declare
Aluminium Window Systems Capral Fabricator Network
National Construction Product Register
National Construction Product Register
Literature
Futureline Thermal Architectural Windows and Doors
