Futureline awning casement window
Verified by manufacturer 13 days ago
Declare
Certificate type
Thermally broken Awning or casement window to complement Futureline framing systems
Application
Residential and commercial applications
Description
Designed to complement the excellent thermal performance of the Futureline 425TB, 429TB & 629TB framing systems, the Futureline Awning window system offers a stylish and functional operable window option.
The 54mm sash profile incorporates a pair of high-performance thermal breaks to minimise heat transfer efficiently. At the same time, internal and external weather seals combined with an overlapping frame design offer a high level of weather tightness.
The Futureline Awning Window features the option of fully integrated screening and the flexibility of either sash handles or sash operator options. Robust sash construction and corner strength are assured with high-quality European corner clamping component
General information
Color | Clear Other |
Finish | Anodized |
Material | Aluminium |
Shape | Rectangle |
Width | 1500 mm |
Height | 1800 mm |
Uniclass | |
NATSPEC National Classification System | 0451a Windows and Glazed Doors – Metal 0451 Windows and Glazed Doors |
SpeedSpec | 08520 Metal Windows and Glazed Doors |
SpecPack | 08520 Metal Windows and Glazed Doors |
Specification data - Aluminium window units
Classification data | |
Standard | To AS 2047. |
Dimensions and configurations | Manufacturer guidanceVarious dimensions and configurations - see product literature. |
Operation: | Manual. Automated. |
Configurations | Awning on Stays. Awning on Hinge Head. Casement on Stays. |
Sash (h x w) | Casement 1.8m Height 0.9m Width Awning Sash 1.8m Height 1.5m Width |
Frame dimensions | Sash: 54mm x 57mm |
Glazing | Double. Triple |
Performance: | Max SLS: 2200pa / ULS: 4500pa / WATER=1000pa. |
Acoustics | Max Rw 38 (-1C;-3Ctr). |
Cyclonic impact testing | No |
Bushfire attack level (BAL) | Up to BAL29 DTS. |
Hardware | Aluminium stays Stainless steel stays Restrictor Chain winder Twin chain winder Automated chain winder Cam handles Scissor arm operator |
Integral accessories | Flyscreen Bushfire screen Security screen |
Sustainability data
Country of material origin | Australia |
Country of product manufacture | Australia |
Material | Aluminium |
Recyclability | 100% recyclable. |
Product certifications
Product certifications
Declare
Aluminium Window Systems Capral Fabricator Network
Literature
Literature type
Extrusion Wall Chart Futureline Capral 2012
Futureline Brochure
Specification Futureline Awning Casement Window

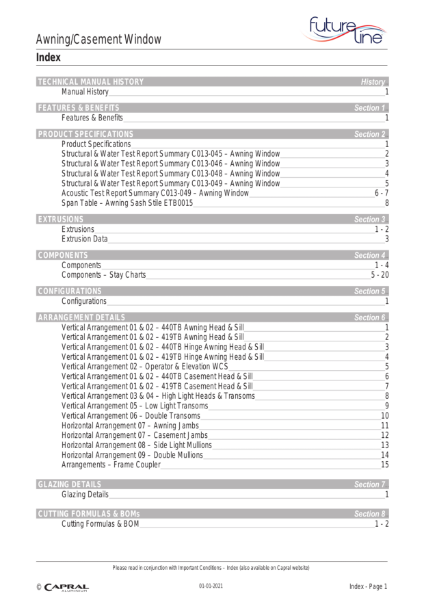

Technical-Manual_Futureline-Awning-Casement_Capral_2021_01_01
