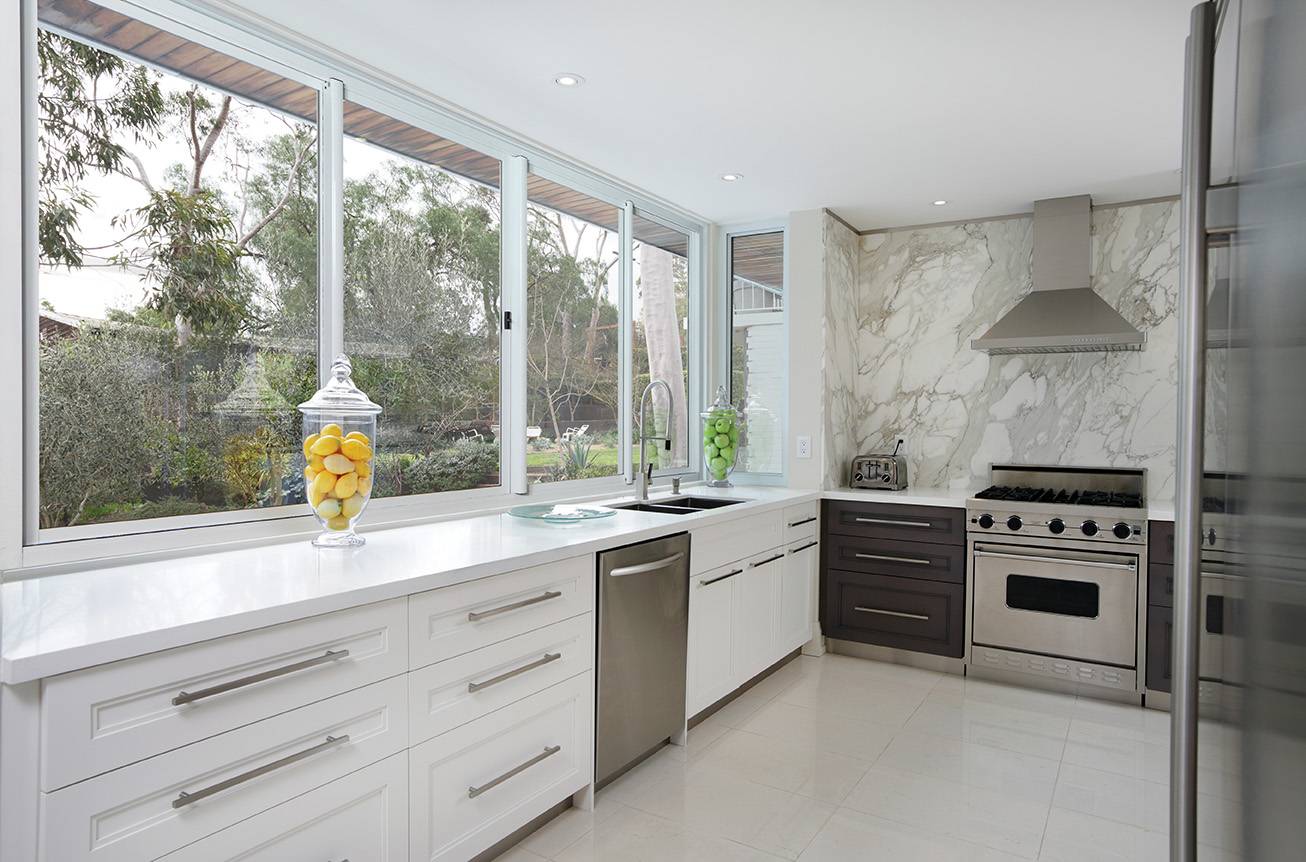

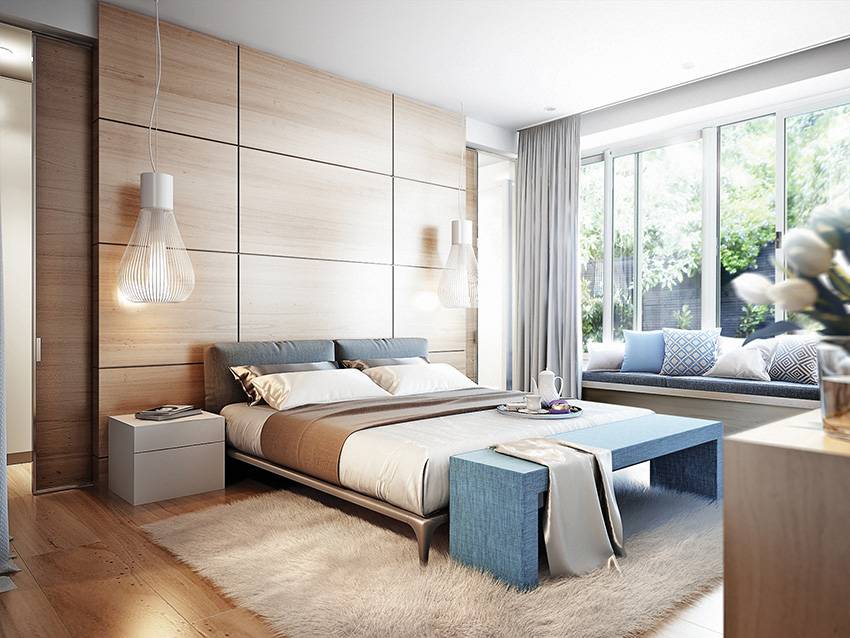

AGS 950 series sliding window

Verified by manufacturer 6 months ago

Capral Aluminium Third party certifications:
  • Declare

    Declare

    Certificate type

High performance sliding window that integrates with AGS framing systems and can be screened.

Jump to:
+61 7 3816 7500 Website

Application

Residential and commercial applications.

Description

The Artisan Architectural 950 Sliding Window system has been developed as a complimentary product to the Artisan Architectural 900 Sliding Door, both providing excellent structural and acoustic performance. Engineered to deliver high strength and performance, the Artisan Architectural 950 Sliding Window has been tested to cyclonic requirements and is capable of large sash sizes and numerous configurations. Incorporating heavy duty roller hardware, twin point locking and integrated insect screening, the Artisan Architectural 950 Sliding Window is ideally suited to applications where clean, modern aesthetics, high quality functionality and a range of performance options are demanded. As would be expected with a window system of this calibre, double glazing is also available for improved thermal comfort and performance.

General information

Finish

Powder coated or anodised.

Material

Aluminium.

Shape

Rectangle

Size

Various sizes available. Maximum Recommended Sizes Height 1800mm Width 1200mm.

Uniclass

Pr_30_59_98_02 Aluminium window unitsPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpeedSpec

08520 Metal Windows and Glazed Doors

SpecPack

08520 Metal Windows and Glazed Doors

Specification data - Aluminium window units

Standard

To AS 2047.

Dimensions and configurations

Various dimensions and configurations - see product literature

Product performance

-

Acoustic performance

-

Standard

To AS/NZS ISO 717.1.

Operation:

Manual.

Configurations

Slide fixed XO

Slide slide XX

Slide over slide

High light

Low light

Show more

Sash (h x w)

Sash Height 1.8m / Sash Width 1.2m.

Frame dimensions

50mm wide interlock

101.6 mm X 60 mm

100 mm X 80 mm

150 mm X 80 mm

Manufacturer guidance

For Detailed Interlock Information please contact Capral Spec Team.

Glazing

Single.

Double.

Performance

Max SLS=7000pa / ULS=10000pa / WATER=800pa.

Acoustics

Max Rw 36 (-1C;-3Ctr).

Cyclonic impact testing

Yes

Bushfire attack level (BAL)

BAL 40

Hardware

Heavy duty rollers

Twin point locking

Integral Accessories:

Flyscreen

Bushfire screen

Security screen

Accessories:

Debris Impact Screen.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Recyclability

100% recyclable.

Third party certifications

Declare

Declare

Aluminium Window Systems Capral Fabricator Network

Literature

Capral AGS 950 SW Brochure

Capral AGS 950 SW Brochure

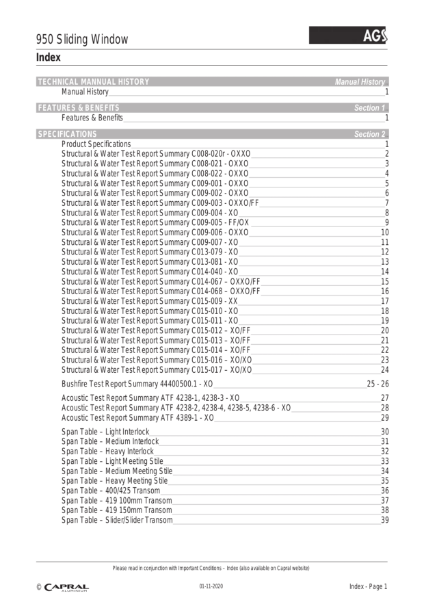

Technical Manual AGS-950 Silding window Capral 2020 11 01

Technical Manual AGS-950 Silding window Capral 2020 11 01

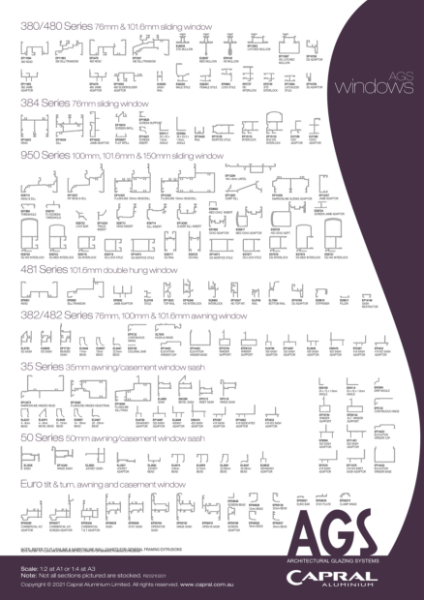

Extrusion wall chart AGS windows Capral 2102

Extrusion wall chart AGS windows Capral 2102

Specification 950 Sliding window 1903

Specification 950 Sliding window 1903
