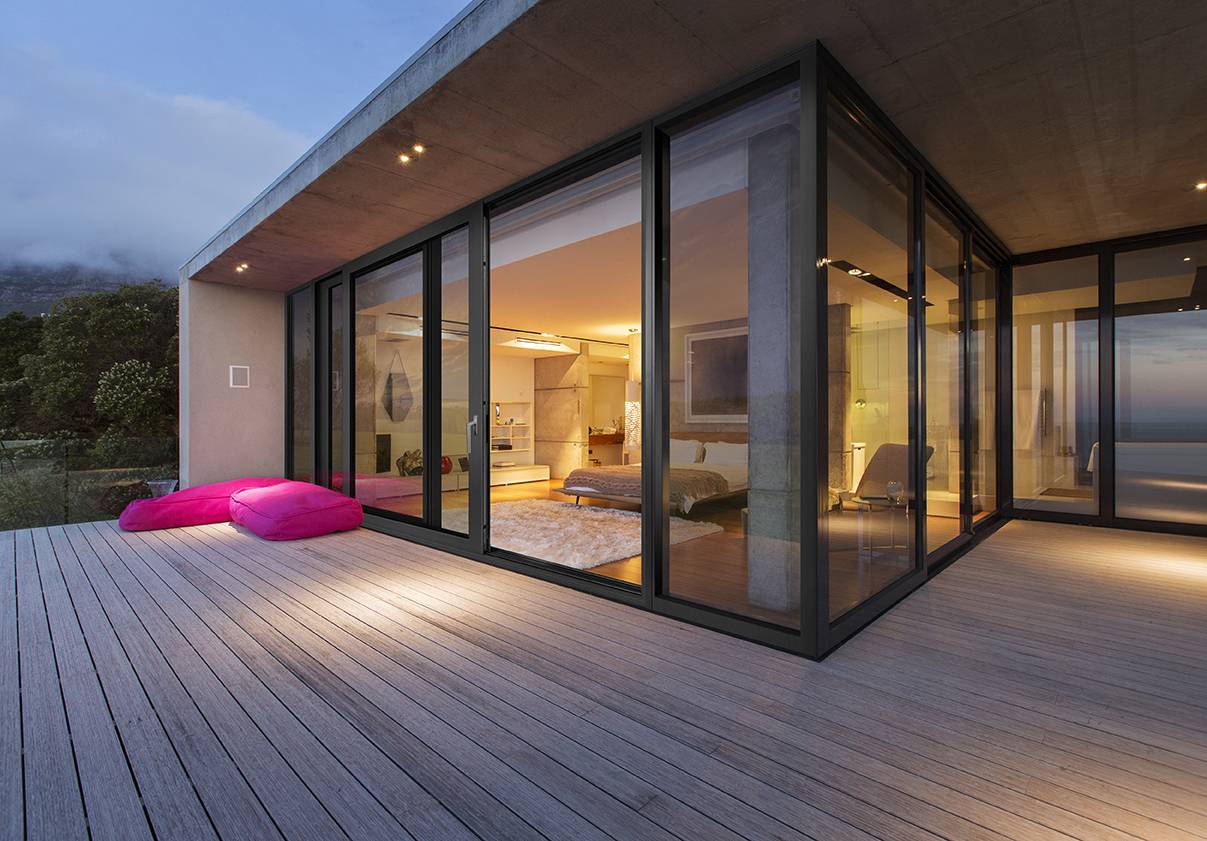

Futureline 994TB Sliding door

Verified by manufacturer 5 months ago

Capral Aluminium Third party certifications:
  • Declare

    Declare

    Certificate type

The Futureline 994TB Sliding Door is a premium option for convenience, comfort, and efficiency.

Jump to:
+61 7 3816 7500 Website

Application

Residential and commercial applications.

Description

The Futureline 994TB Sliding Door is a premium convenience, comfort, and efficiency option. It has clean lines and a bold look that benefits from the thermal break technology below the surface.

The thermally broken frame not only greatly assists with energy ratings which allows for fantastic performance year-round but also supports wide openings that allow you to open spaces up for fresh air and entertaining when the weather is right.

This sliding door is compatible with the mortice and surface-mounted locks and handles in Capral’s Caprio and Caprice hardware ranges and has a variety of standard and powered roller options.

General information

Finish

Anodized

Material

Aluminium

Shape

-

Manufacturer guidance

Various profiles available.

Width

2200 mm

Height

3000 mm

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

NATSPEC National Classification System

0453 Doors and Access Panels

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpeedSpec

08520 Metal Windows and Glazed Doors

SpecPack

08520 Metal Windows and Glazed Doors

Specification data - Sliding door and partition sets

Operation:

Manual.

Configurations

Slider.

Stacker.

Biparting.

Door panels

Door Height: 3.0m / Door Width: 2.4m / Weight Lift & Slide 300kgs / Weight Sliding Only 200kgs.

Frame dimensions

100mm Slider.

145mm Stacker.

Manufacturer guidance

For detailed interlock information please contact Capral Spec Team.

Glazing

Double.

Performance:

Max SLS:1200pa. ULS: 3000pa. WATER: 450pa.

Standard:

AS2047.

Acoustics

Max Rw 33 (0C;-2Ctr)

Cyclonic impact testing

No

Bushfire attack level (BAL)

BAL 29 DTS

Hardware

Lift & Slide Handle.

Recessed Pull Handle.

Standard Handle.

Accessories:

Trickle vents.

Security screen.

Flyscreen.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Recyclability

100% recyclable.

Third party certifications

Declare

Declare

Capral Aluminium Door Systems Capral Fabricator Network

Literature

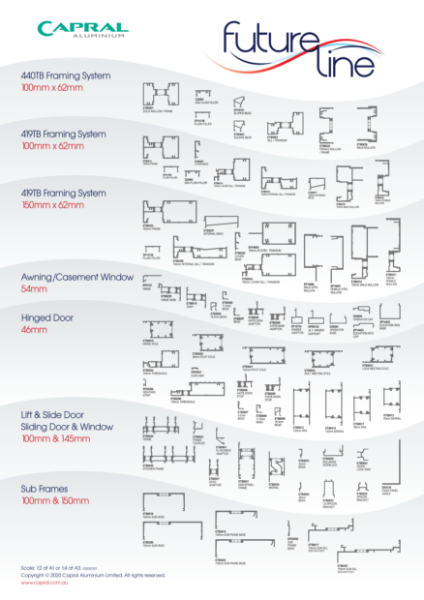

Extrusion Wall Chart Futureline Capral 2012

Extrusion Wall Chart Futureline Capral 2012

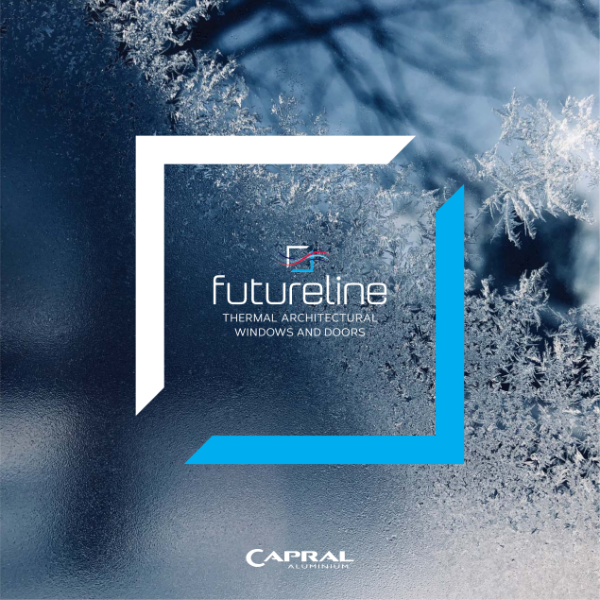

Futureline Brochure

Futureline Brochure

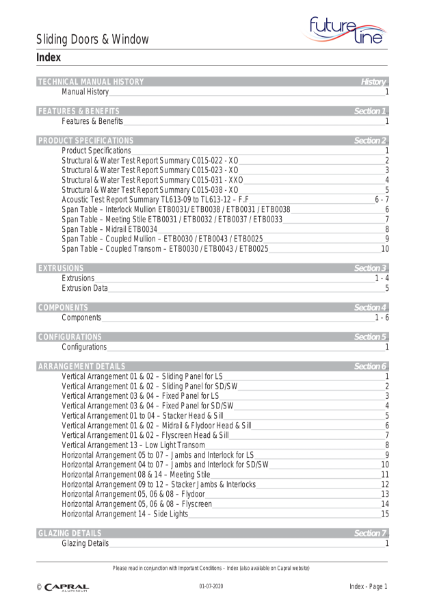

Technical-Manual_Futureline-Sliding-Doors-and-Window_Capral_2020_07_01

Technical-Manual_Futureline-Sliding-Doors-and-Window_Capral_2020_07_01
