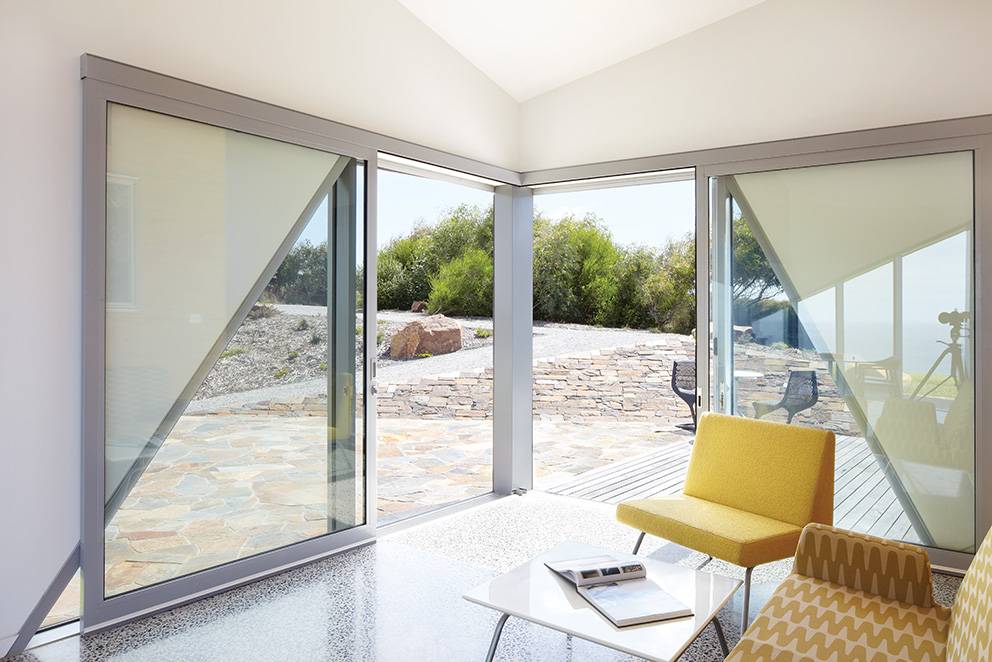

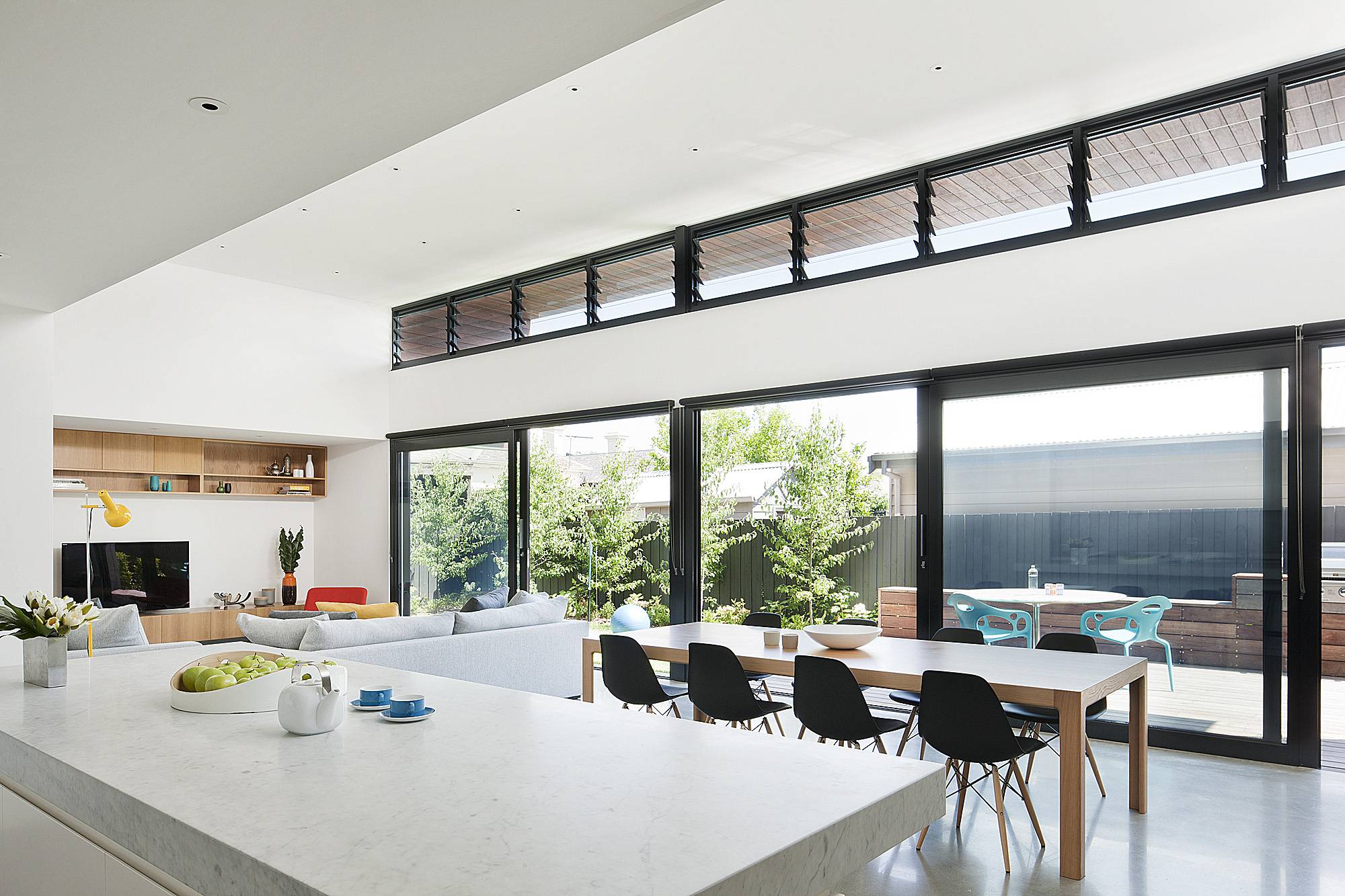

AGS 225 series door - hinged, pivot, slider

Verified by manufacturer 5 months ago

Capral Aluminium Third party certifications:
  • Declare

    Declare

    Certificate type

Commerical door panel suitable for hinge, pivot and sliding door configuration.

Jump to:
+61 7 3816 7500 Website

Application

Commercial use.

Description

The AGS Commercial 225 door is a 46mm pocket glazed commercial door panel capable of hinge, pivot and sliding door configurations and has been designed with flexibility, performance and ease of assembly in mind. The Artisan Architectural 225 Door builds on the trusted and reliable 200 and 275 Series Doors, suiting a wide range of applications from architectural entry doors through to commercial shopfronts. This door can be fitted with either single or double glazed units and has the option of standard and wide stiles. It is also compatible with a vast range of commercial and architectural locks and furniture as well as the full range of Capral framing systems.

General information

Finish

Anodised or Powder coated.

Material

Aluminium.

Size

Hinged Height: 3000 mm, Hinged Width 1200 mm. Pivot Height: 3000 mm, Pivot Width: 1200 mm. Sliding height: 2700 mm, Sliding width 1800 mm.

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpeedSpec

08520 Metal Windows and Glazed Doors

SpecPack

08520 Metal Windows and Glazed Doors

Specification data - Sliding door and partition sets

Operation

Manual.

Automatic.

Configurations

Hinged.

Pivot.

Top Hung.

Manual Slide.

Bottom Roller.

Show more

Door panels

Hinged Height: 3.0m / Hinged Width: 1.2m / Pivot Height: 3.0m / Pivot Width: 1.2m / Sliding Height: 2.7m / Sliding Width: 1.8m.

Frame dimensions

83mm x 46mm Stile / 131mm x 46mm stile / 87mm Shallow Rail / 110mm Std Rail / 140mm Extended Rail / 50mm Midrail / 110mm Midrail.

Glazing

Single.

Double.

Performance:

Max SLS: 4500pa / ULS: 10000pa / WATER: 900pa.

Standard

AS2047.

Acoustics

Max Rw 36 (-1C;-2Ctr).

Cyclonic impact testing

Yes

Bushfire attack level (BAL)

BAL40.

Hardware

Coastal Rollers.

Caprio Handle.

Caprice Handle.

D-Lock Handle.

DDA Compliant Handle.

Show more

Integral accessories

• Aquago SubSill Drain.
• Stepped Threshold.
• DDA Threshold.
• Retractable Flyscreens.

Accessories:

Security Screen.

Flyscreen.

Bushfire Screen.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Recyclability

100% recyclable.

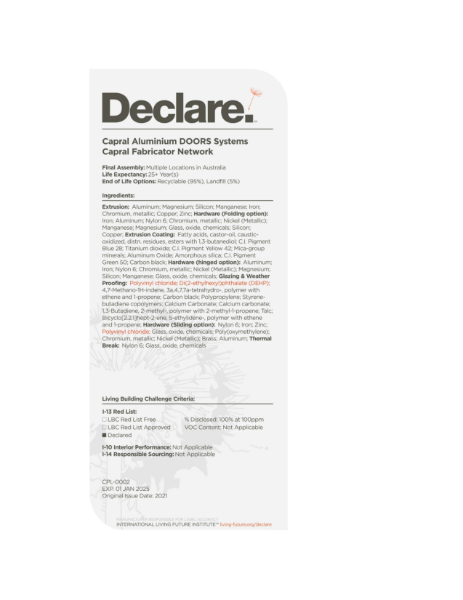

Third party certifications

Declare

Declare

Capral Aluminium Door Systems Capral Fabricator Network

Literature

AGS225 Series Door Brochure

AGS225 Series Door Brochure

Technical Manual AGS 225 Door series Capral 2020 11 01

Technical Manual AGS 225 Door series Capral 2020 11 01

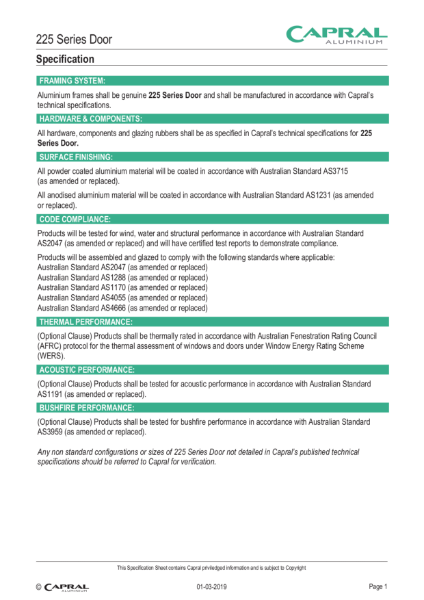

Specification 225 series door 1903

Specification 225 series door 1903

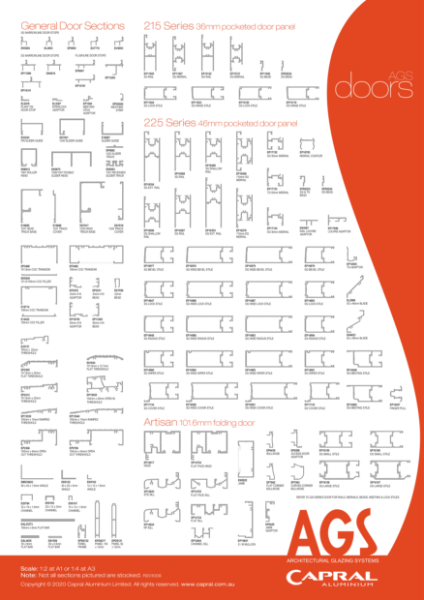

Extrusion Wall Chart AGS Doors Capral 2011

Extrusion Wall Chart AGS Doors Capral 2011
