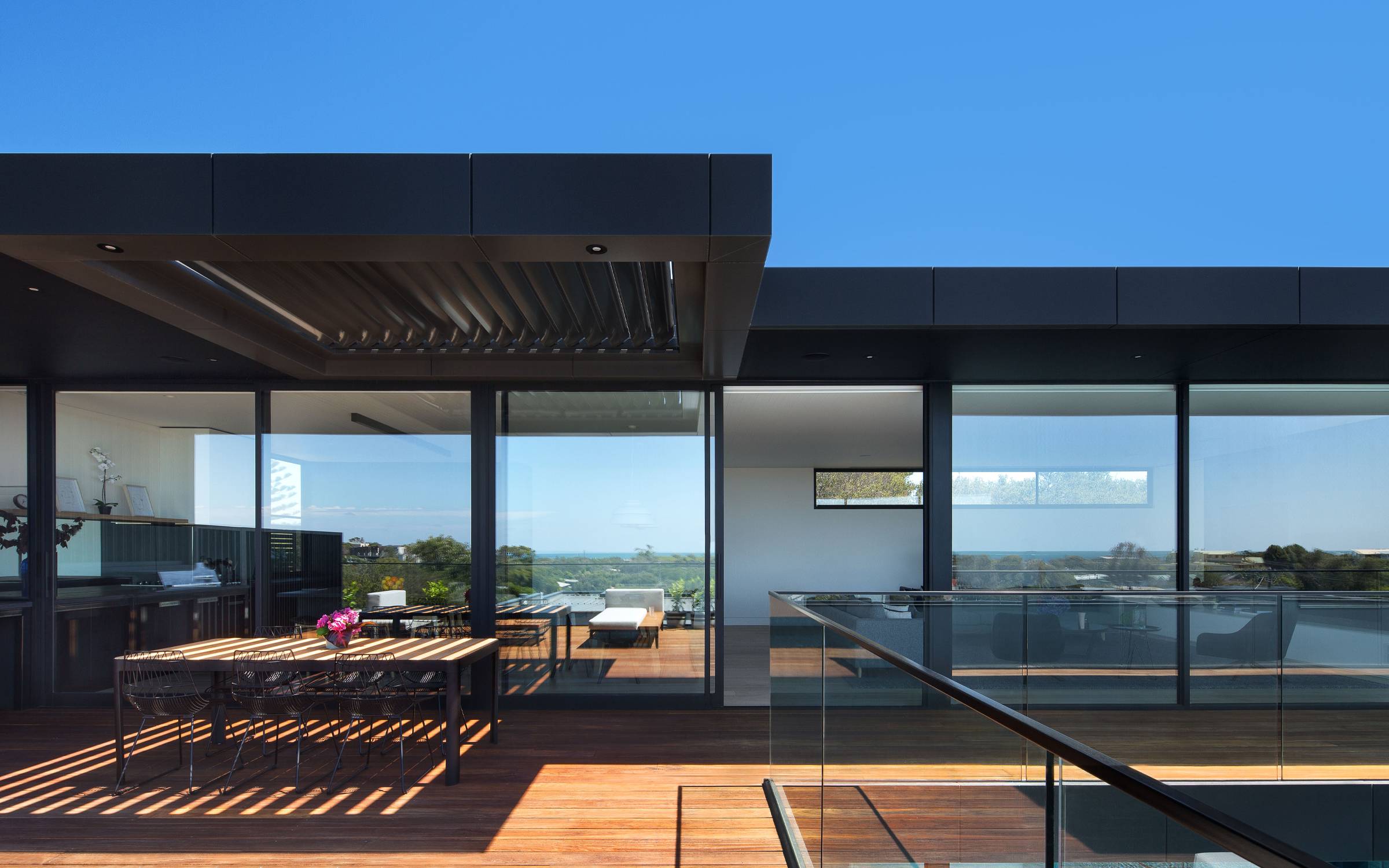

AGS 900 series sliding door
Verified by manufacturer 6 months ago
Declare
Certificate type
900 High Performance Sliding and Stacking Door The cutting edge Artisan Architectural 900 Series Sliding Door represents the latest generation of commercial door development.
Application
Suitable for residential, commercial and multi-storey apartments.
Description
The cutting edge Artisan Architectural 900 Series Sliding Door represents the latest generation of commercial door development. Specifically designed to deliver unrivalled performance and design flexibility, the Artisan Architectural 900 Series Sliding Door is capable of panel sizes up to 3000mm in height, and 2500mm in width. Multi-stack configurations are available and this product has been tested to meet cyclonic requirements. Incorporating high quality hardware including heavy duty double wheel rollers and various locking options, the Artisan Architectural 900 Series Sliding Door is proving extremely popular on many landmark commercial and residential development projects. For enhanced thermal comfort and performance, both thick and double glazing is possible incorporating insulated glass unit up to 26mm in thickness.
General information
Finish | Anodised or Powder coated. |
Material | Aluminium. |
Shape | Rectangle |
Uniclass | |
NATSPEC National Classification System | 0453 Doors and Access Panels 0451 Windows and Glazed Doors |
SpeedSpec | 08520 Metal Windows and Glazed Doors |
SpecPack | 08520 Metal Windows and Glazed Doors |
Specification data - Sliding door and partition sets
Operation | Manual. |
Configurations | Slider. Stacker. Biparting. Cavity. Corner. |
Door panels | Door Height: 3.0m / Door Width: 1.75m Std Rail / 2.5m HD Rail / Weight up to 300kgs. |
Frame dimensions | 50mm Wide Interlock / 100 & 150 x 44 Sill. 50mm Wide Interlock / 100 & 150 x 50 Sill. 50mm Wide Interlock /100 & 150 x 80 HP Sill. Manufacturer guidanceFor detailed interlock information please contact Capral Spec Team. |
Glazing | Single. Double. |
Performance: | Max SLS: 6000pa / ULS: 10500pa / WATER: 700pa. |
Standard: | AS2047. |
Acoustics | Max Rw 39 (-1C;-3Ctr). |
Cyclonic impact testing | Yes |
Bushfire attack level (BAL) | BAL 40. |
Hardware | Coastal Rollers 300kg panel capacity quad rollers. Caprio Handle. Caprice Handle. D-Lock Handle. DDA Compliant Handle. |
Integral Accessories: | • Aquago SubSill Drain |
Accessories: | Trickle Vents. Security Screen. Flyscreen. Bushfire Screen. Debris impact screen. |
Sustainability data
Country of material origin | Australia |
Country of product manufacture | Australia |
Recyclability | 100% recyclable. |
Third party certifications
Declare
Capral Aluminium Door Systems Capral Fabricator Network
Literature
Specification 900 sliding door 1903
Extrusion Wall Chart AGS 900 Sliding Door
Capral-AGS-900-Sliding-Door Brochure
Technical Manual AGS 900 HP sliding Door Capral
